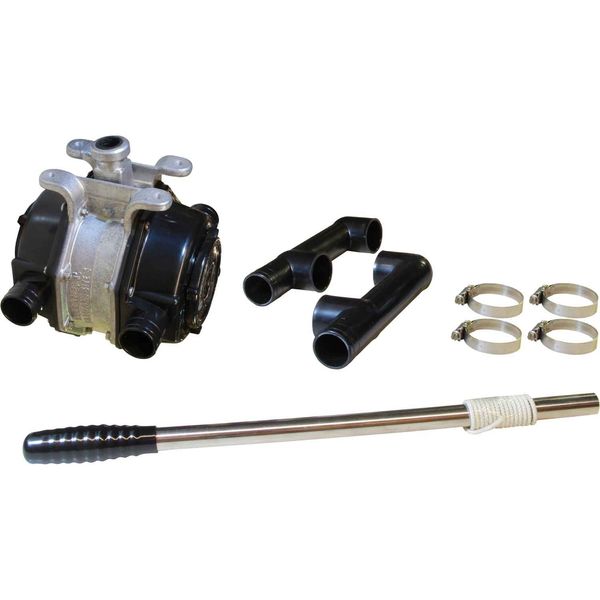

Whale Mk5 Double Acting Manual Bilge Pump Through Deck Mount

MK5 DOUBLE ACTING PUMPS

Whale's Tough and Lightweight Polypropylene Range

Tough proven, reliable designs available with single or double acting capabilities.

MK5 DOUBLE ACTING Manual Bilge Pump. High output - 104 litres/23 US gals/minute. Twin diaphragms - empty 2 bilge compartments at the same time or one twice as quickly - 2 manifolds supplied.

Features and Benefits

Mk5 Double Acting high performance

• Ease of maintenance inspection hatch - no tools required

• Will continue to pump even if one diaphragm fails

Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system. Accreditations & Approvals

• Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO15083

• Life Boats Approval - approved by Lloyds (MCA) and USCG (Mk5 Universal MCA Size 2) (Mk5 Double Acting - Size 3)

Performance data:

Suction Lift: 1m (3ft)

Discharge Head: 0.5m (1.5ft)

45 Strokes per Minute: 64 litres (17 US gals)

70 Strokes per Minute: 104 litres (27.5 US gals)

N/A (Not Applicable)

o Flow Rate Description: 64 LPM (17 US GPM) at 45 strokes per minute, 104 LPM (27.5 US GPM) at 70 strokes per minute.
o Maximum Pump Head: Over 4.27 Metres
o Hose Size: 38mm / 1-1/2"
o Maximum Recommended Head: 4.5 Metres (15 Feet)
o Maximum Suction Lift: 4.5 Meters (15 Feet)
o Removable Handle: Yes
o Inlet Outlet: To Suit 38mm (1-1/2") ID Hose
o Brand: Whale
o Series: MK5
o Application: Bilge Water, Salt Water or Diesel
o Model: MH5560
o Voltage Description: Manual
o Approvals: Approved by Lloyds (MCA) and USCG for use in Lifeboats. Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO150831.

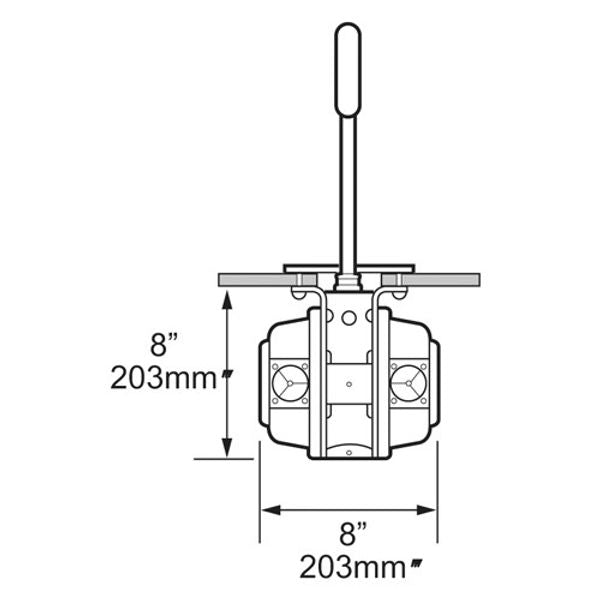

o Height Description: Pump Body: 203mm (8")
o Width: Pump Body: 292mm (11-1/2")
o Length: Overall (including removable handle): 630mm (24-3/4")
o Country of Origin: United Kingdom
o Warranty: 5 Years
