The Quick TB4 Tumbler 1012 Horizontal Capstan Winch

Escribe una reseña
| Haz una pregunta

FSTB1024L000A00 3 Year Warranty

£1,610.79 £1,787.89

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

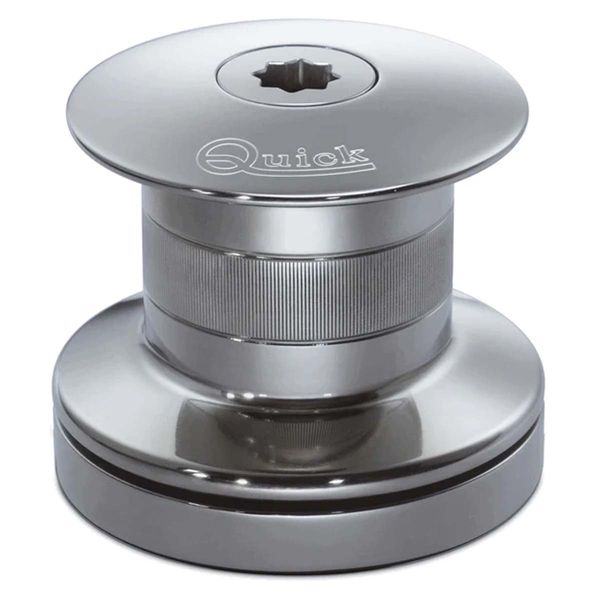

The Quick TB4 Tumbler 1012 horizontal capstan winch is suitable for boats from 14m to 18m (45 to 59ft). The capstan features a AISI 316 stainless steel base and drum (INOX steel) with an anodised aluminium gearbox and an IP67 watertight motor, making it well protected and durable. Supplied with a nylon handle control, anchoring has never been easier. The Quick capstan winch features a 142mm (5" - 19/32) diameter drum which is suitable for rope. This unit comes equipped with an IP67 watertight motor.

Features

o Warping Winch
o AISI Stainless steel 316 base and drum
o IP67 Motor watertight
o Anodised aluminium gearbox

Specifications

o Primary Construction: Stainless Steel
o Brand: Quick
o Model: The Quick TB4 Tumbler 1012
o Colour: Black and Silver
o Voltage Description: 12V DC
o Wattage: 1000W
o Working Load: 370kg / 816lb
o Maximum Pull Load: 1000kg (2205 lb)
o Maximum Chain Speed: 25m/min (82ft/min), At working load: 17.5m/min (57ft/min)
o Amps Description: 140A
o Contents: Capstan, Handle, Contactor Unit, Bolts and Screws, Drill Template, User Manual

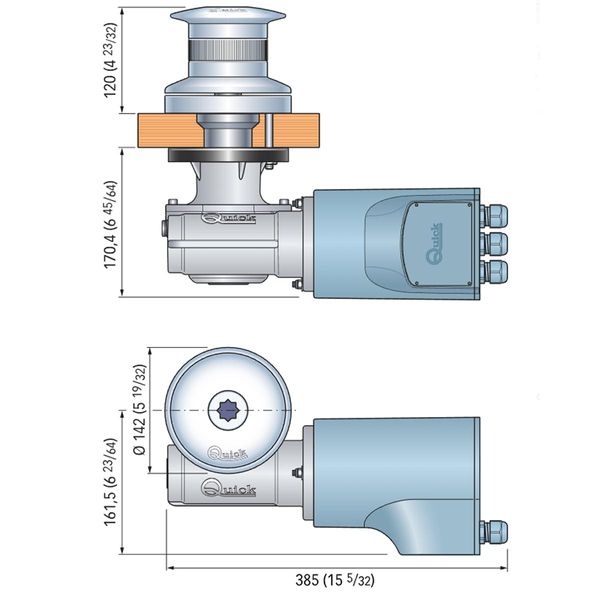

o Height Description: 385mm (15 - 5/32)
o Width: 161.5mm (6 - 23/64)
o Depth: 290.4mm (6 - 45/64)
o Weight: 17.3kg / 38.1lb
o Diameter Description: Drum: 142mm / 5" 19/32
o Thickness: 25 - 50mm (31/32" - 1" 31/32)
o Mounting Description: Horizontal mount
