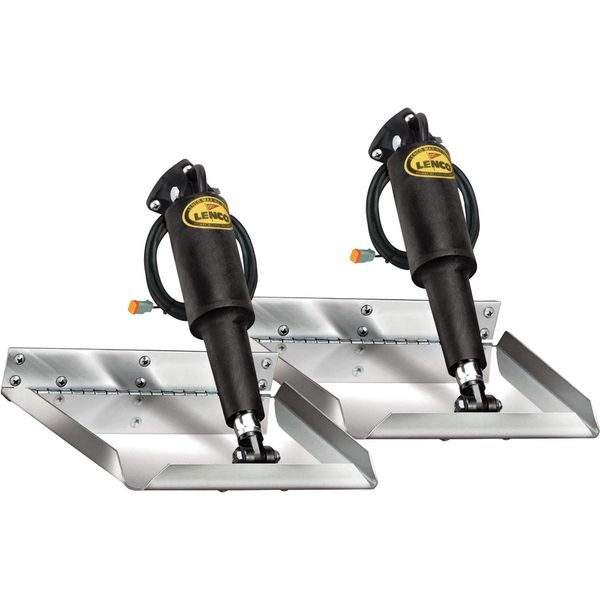

Lenco 12" x 9" Edge Mount Trim Tab Kit (Electro-Polished)

Lenco 15115-101 has all the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12” (30.5 cm) blades giving them a 3” (7.6 cm) lower mounting height. Boat Lengths 14’ (4.3 m) to 18’ (5.49 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1” (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8” (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Lenco trim tab kit contents:

- 2x 12-gauge stainless steel Electro-Polished blades

- 2x 15054-001 12-Volt actuators with 6' (1.8 m) leads and Deutsch connectors

- 2x 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length

- 2x 15085-001 upper mounting brackets with gland seal

- 2x 50014-001 lower mounting brackets

- Lenco owner’s/installation manual

- Stainless steel mounting hardware

N/A (Not Applicable)

o Material: Electro-Polished Stainless Steel 304
o Primary Construction: Stainless Steel 304
o Suitable For: Vessels under 7 Metres / 22.9 feet
o Brand: Lenco
o Application: 14’ - 18’ (4.27m - 5.49m) Boats
o Voltage Description: 12V DC
o Contents: 2 Electro-Polished Stainless steel blades, 2 Actuators 12V, 2 extension wiring harnesses, 2 Upper & 2 Lower Mounting Brackets, Owner/installation manual & Mounting hardware
o Height Description: Hinge: 2" (5.1 cm), Min Transom: 11"(27.9 cm)
o Width: 9"
o Length: 12"
o Thickness: Blade: 2.6mm (12 Gauge)
o Warranty: 3 Years
