Blue Sea Safetyhub 150 Fuse Block

Escribe una reseña
| Haz una pregunta

7748-BSS 3 Year Warranty

£136.74 £153.58

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

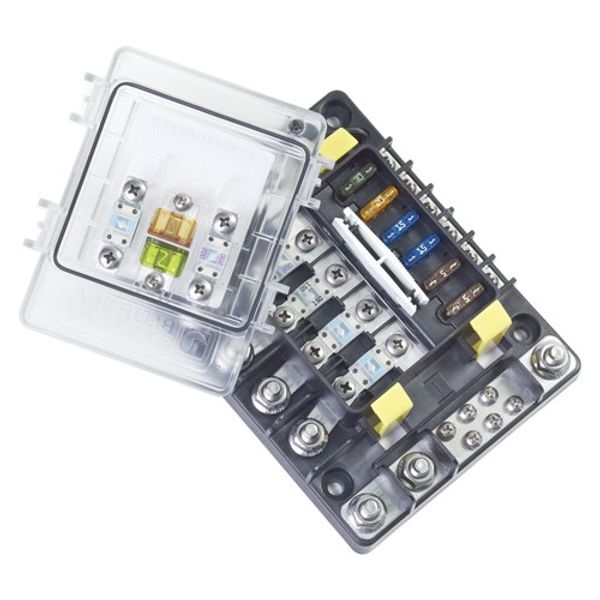

SAFETYHUB 150 FUSE BLOCK

The SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to ten fused circuits.

o Four 30A−200A MIDI® or AMI® Fuses for high-amp circuits including panel feeds, windlasses, and stereo amplifiers

o Six 1A−30A ATO® or ATC® Fuses for low amp circuits including bilge pumps, electronic and lights.

o Sealed cover protects fuses from the harsh marine environment

o Negative bus provides common location for negative collection

o Circuit identification label with write-on capability

o Fuse puller easily removes ATO® or ATC® fuses

o Cover provides storage space for two spare ATO® or ATC® and two spare MIDI® or AMI® fuses and mounting screws

o Fuses sold separately

o Regulatory:

o CE marked. Meets ISO 8846 ignition protection, and SAE J1171 external ignition protection requirements.

o IP66 - protected against powerful water jets.

Features

N/A (Not Applicable)

Specifications

o Brand: Blue Sea Systems
o Amperage Max Operating (combined): 280A
o Operating Voltage: 12v DC
o Minimum Cable Size: 4/0AWG
o Recommended Terminal Ring: M8
o Stud Size: M8
o Stud Torque: 15ib-ft
o MIDI or AMI Fuse Block
o Imvo Amperage Max Operating (per block): 280A
o Fuse Amperages available: 32-200A
o Minimum Cable Size: 2/0 AWG
o ATO or ATC Fuse Block
o Imvo Amperage Max Operating (per block): 50A
o Imvo Amperage Max Operating (per circuit): 30A
o Fuse Amperages available: 1-20A
