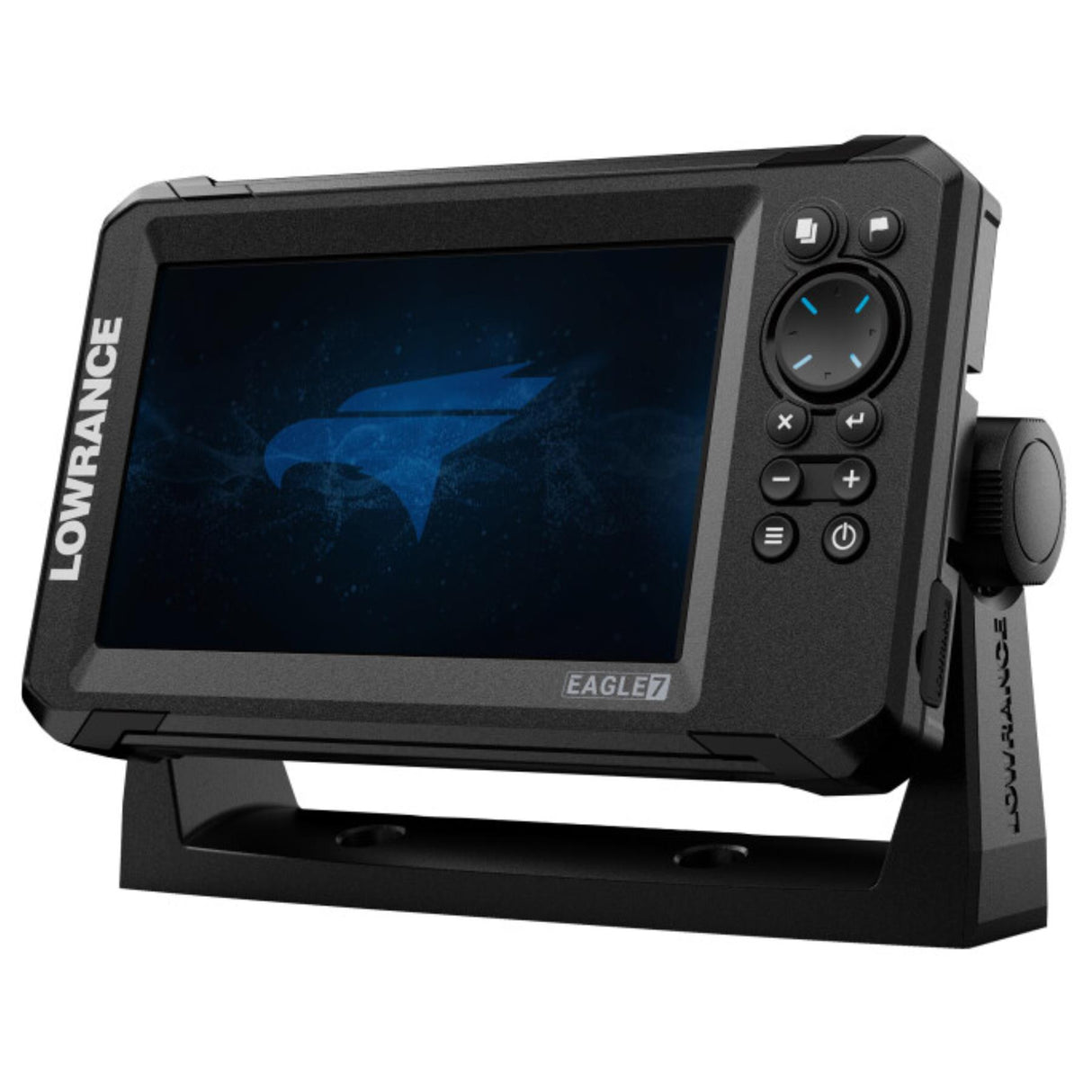

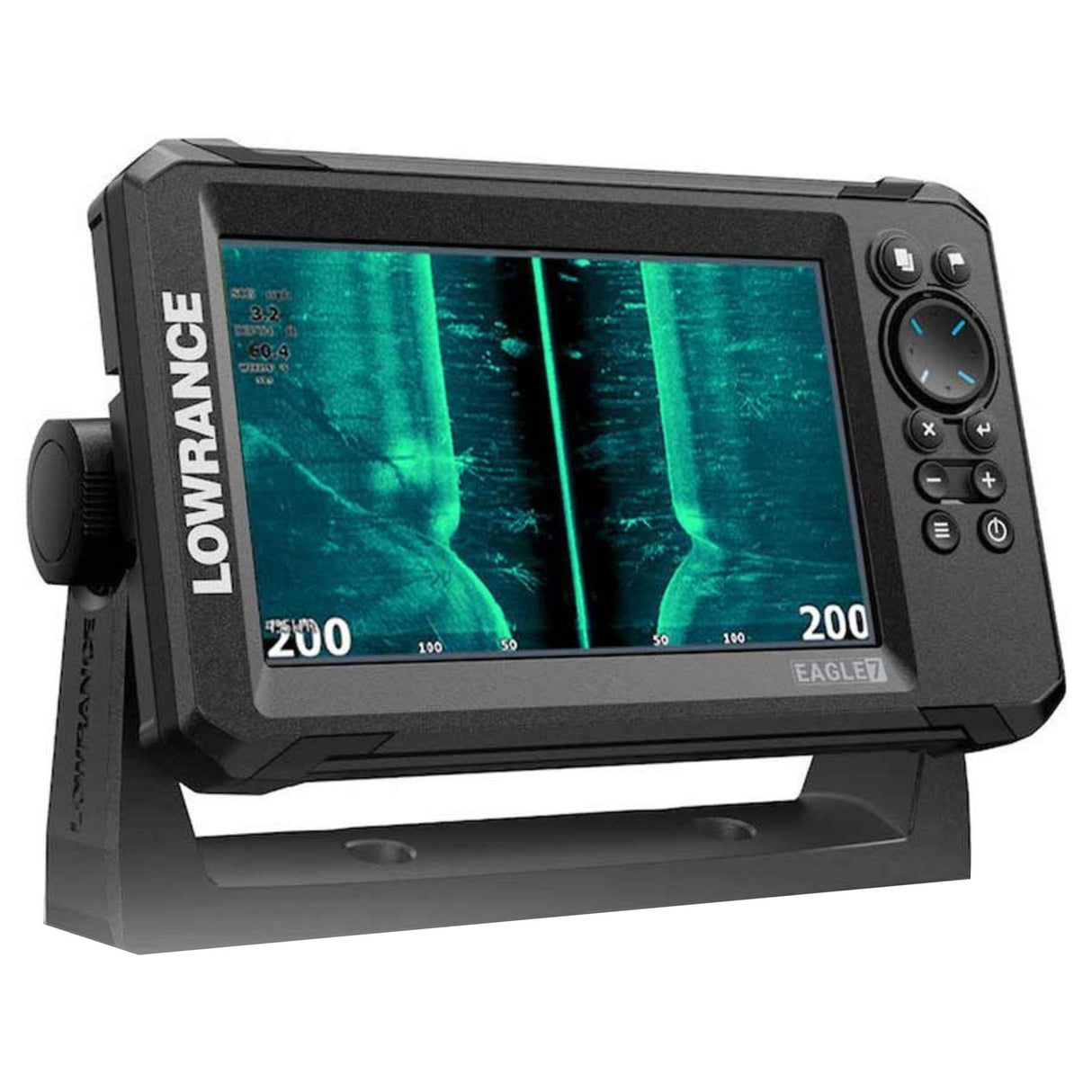

Lowrance Eagle 7 Fishfinder/ Chartplotter with SplitShot HD Transducer - Worldwide Base map

The Eagle 7 with SplitShot HD from Lowrance is a user-friendly and advanced fish finder particularly suited for anglers looking for an easy-to-use, high-performance fish finder with advanced features and excellent visibility.

This 7-inch model benefits from the following features:

FishReveal Technology
Combines CHIRP sonar and DownScan Imaging for better fish identification and target separation.

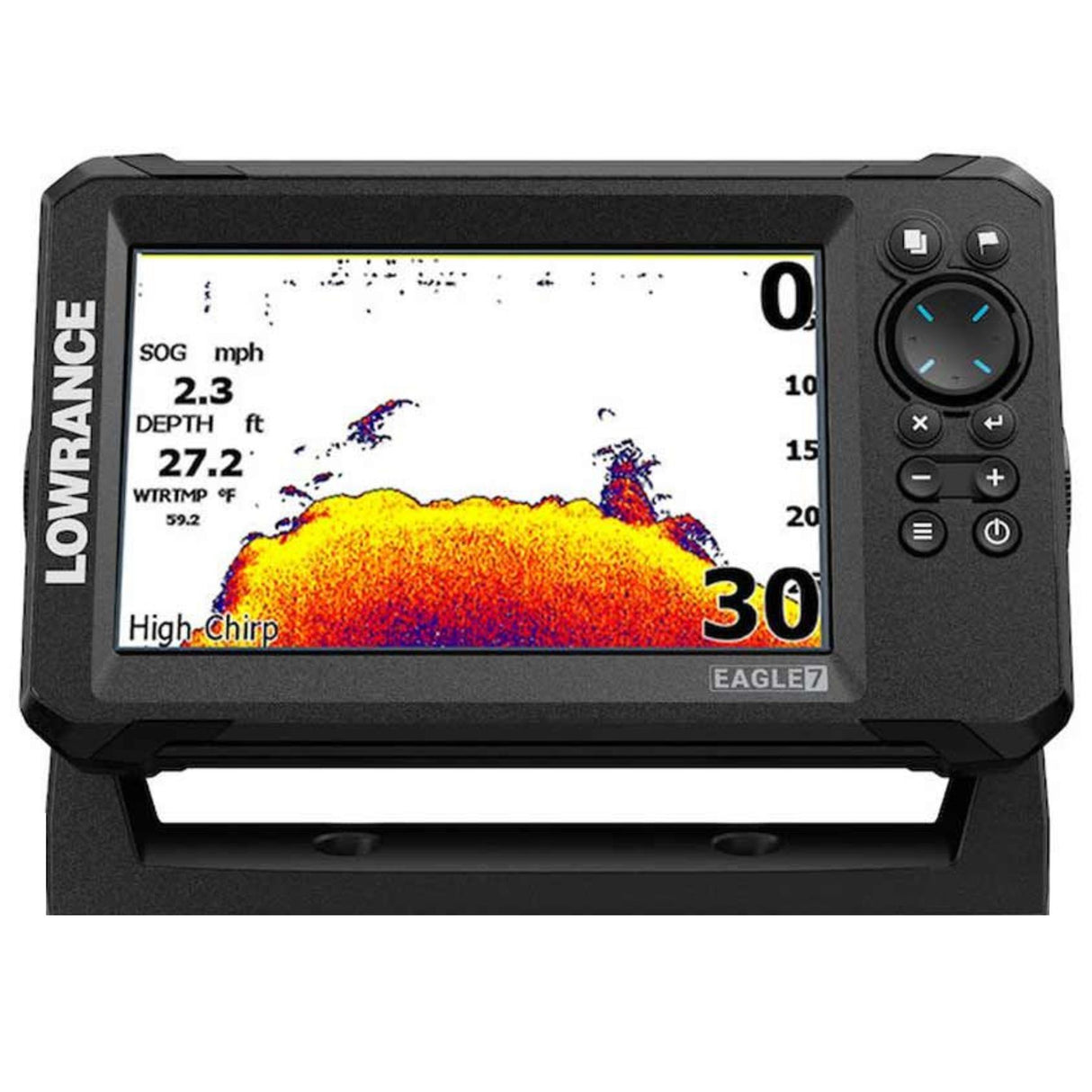

Wide-Angle High CHIRP Sonar
Provides high-resolution views of individual fish targets.

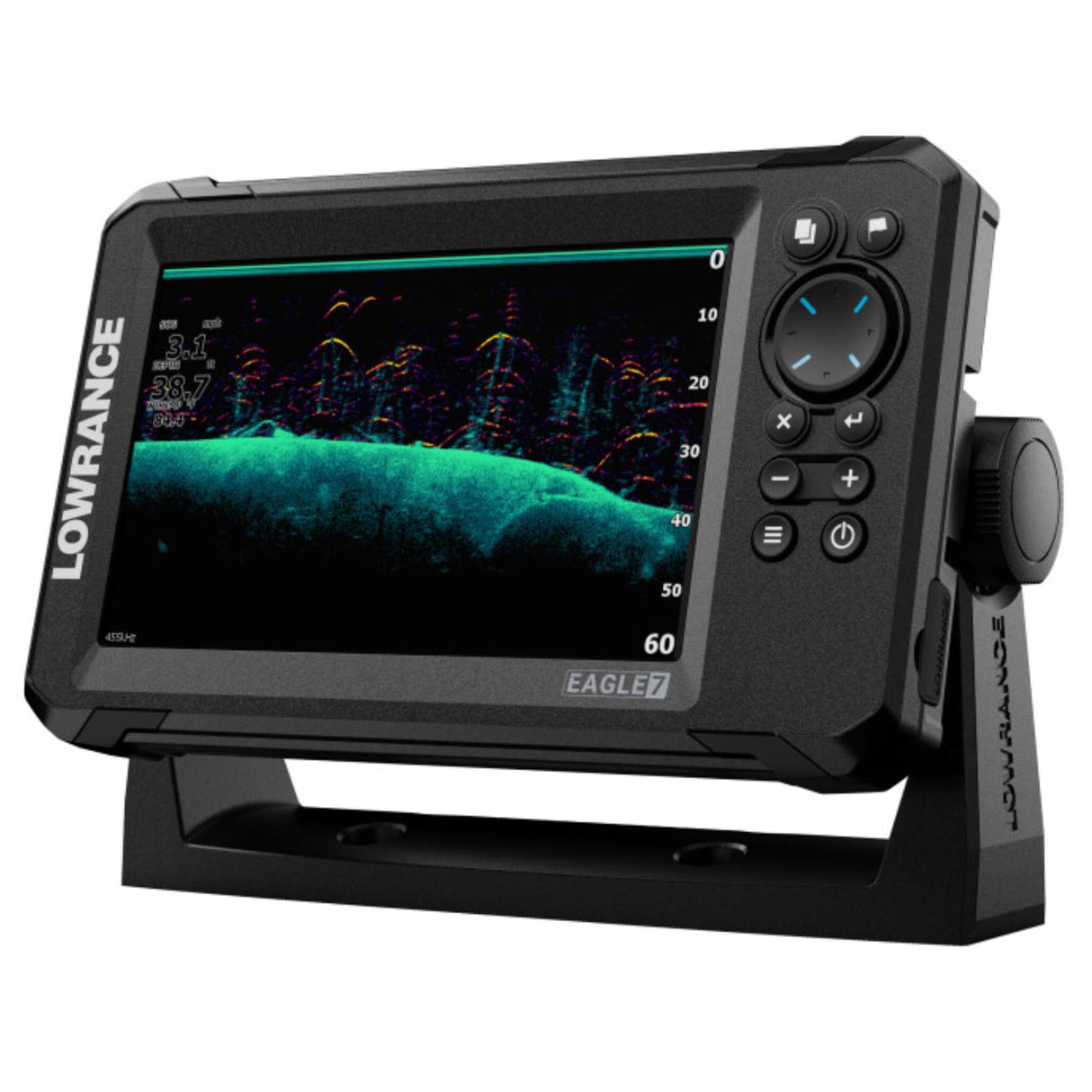

DownScan Imaging
Offers photo-like images of underwater structures directly beneath the boat.

Autotuning Sonar
Automatically adjusts sonar settings for optimal performance, saving time and effort.

Screen
7-inch IPS Screen: Higher resolution and better visibility from all angles, even in direct sunlight with polarized sunglasses (compared to older models).

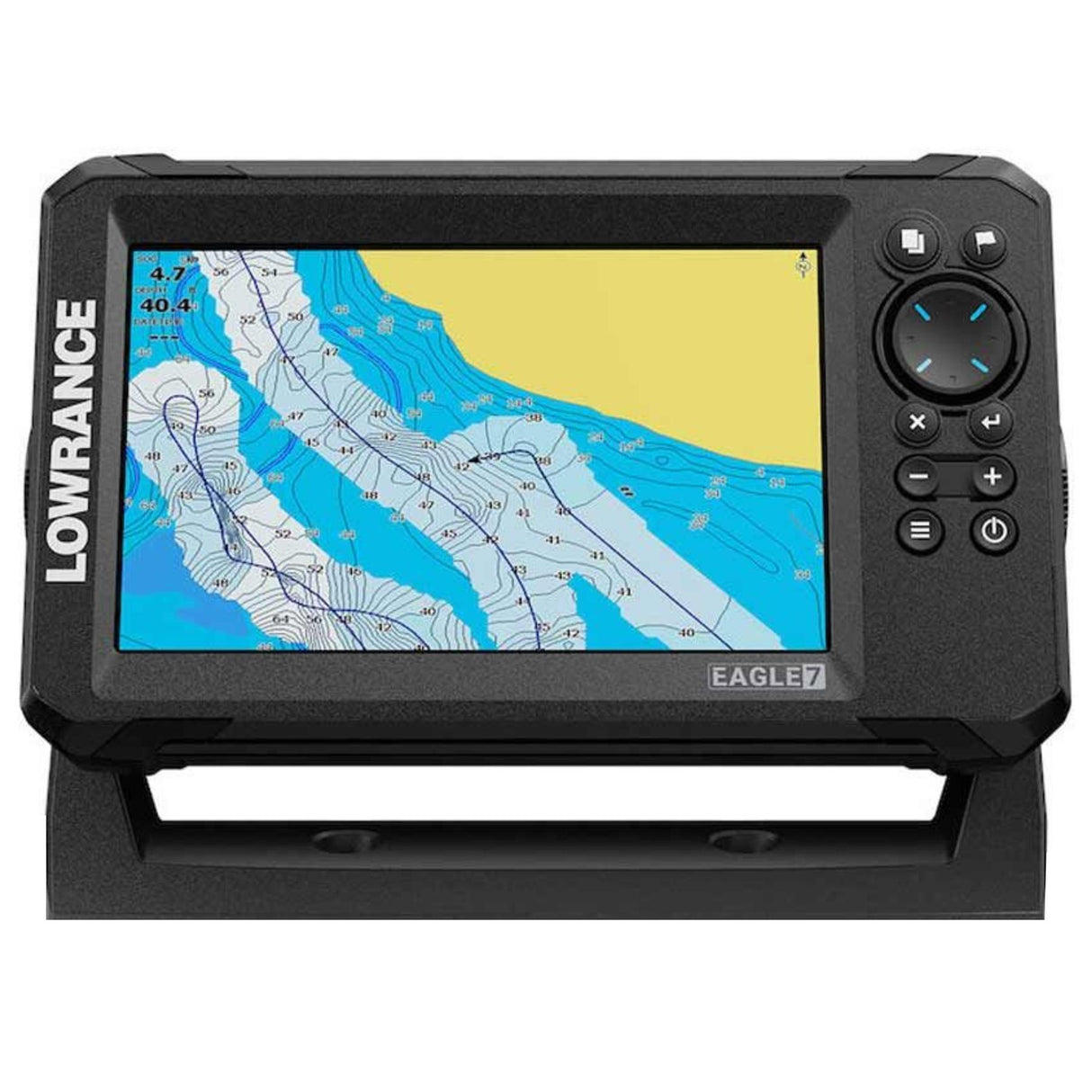

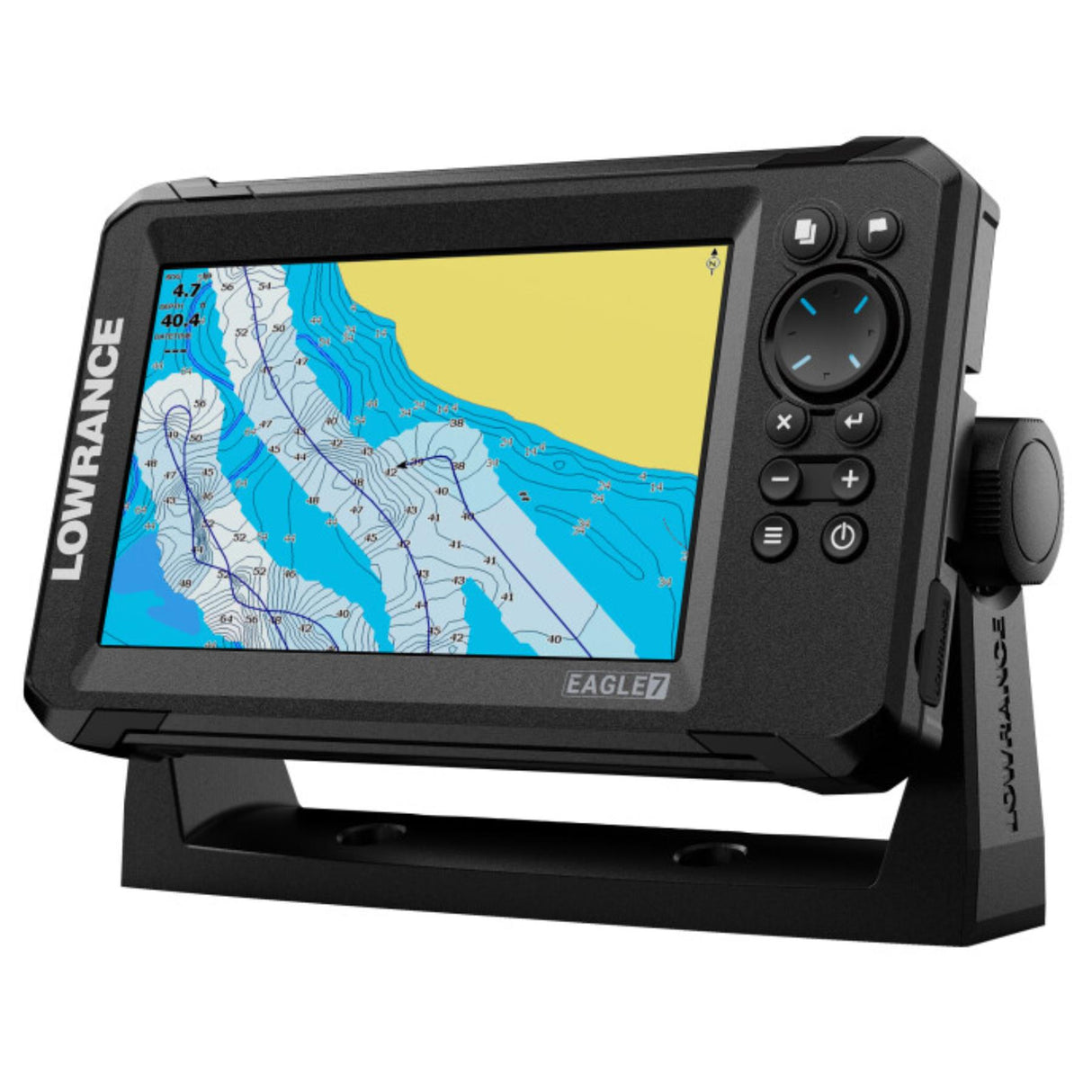

Preloaded Base map and Charting
This model comes with a worldwide base map chart and offers the option to upgrade to CMAP Discover or other charting providers for detailed navigation.

Genesis Live
This features allows the user to create custom 1/2-foot contour maps of local lakes or uncharted waters in real-time.

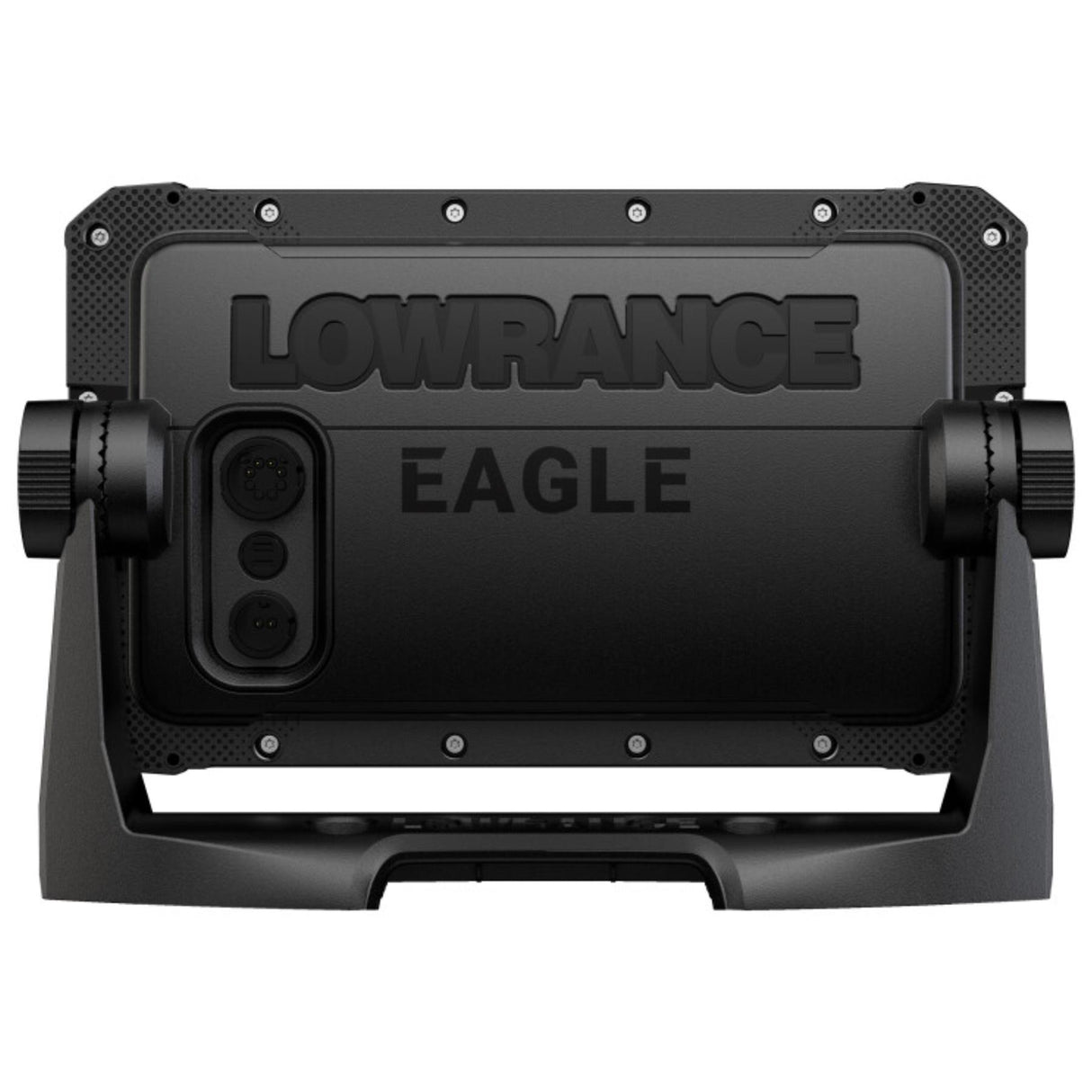

New Connector System
Improved twist-locking connector for easy setup and removal.

One-Year Warranty
Provides peace of mind with a one-year warranty guarantee.

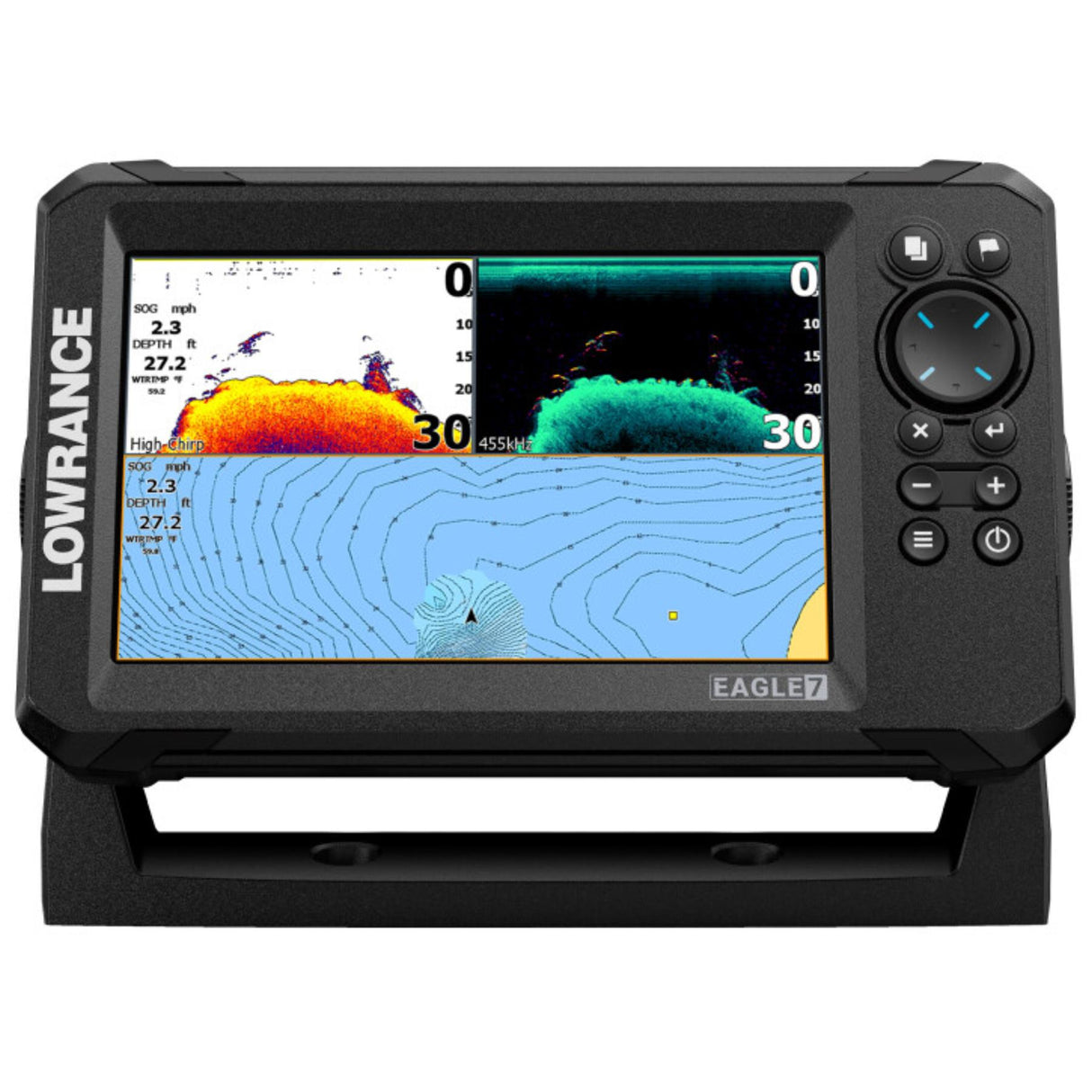

The combination of CHIRP sonar, DownScan Imaging, and FishReveal technology helps anglers identify and target fish effectively.

The improved IPS screen ensures clear and sharp images in various lighting conditions, improving the overall user experience (compared to previous models).

Autotuning sonar and the latest connector system make setup and adjustments quick and hassle-free.

The Genesis Live feature allows for precise mapping of local fishing spots, offering a significant advantage for serious anglers.

The preloaded base map with upgrade options ensures comprehensive coverage and detailed navigation aids.

Lowrance Eagle 7 and 9 Installation Guide and Mounting Template

Lowrance Eagle 7 and 9 Mounting Template

Lowrance Eagle 7 EU Declaration of Conformity

Lowrance Eagle Quick Start Guide

Lowrance Eagle Series Operator Manual

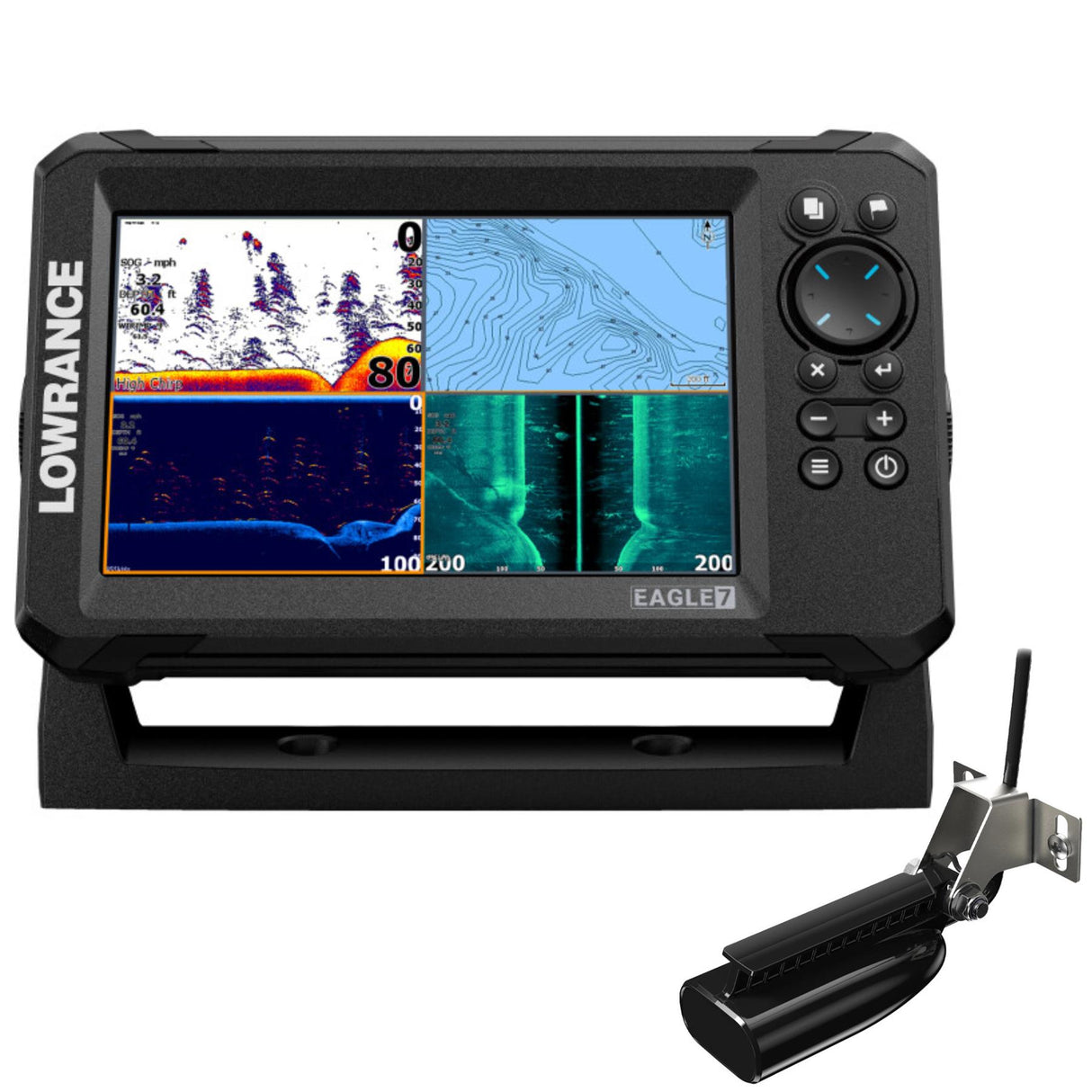

o Enhanced SplitShot HD Transducer with Autotuning sonar
o Worldwide base map IPS screen, viewable from all angles, even in polarised glasses
o Reliable twist-lock connector system for easy installation in any boat or kayak
o SD card slot for software updates, Genesis Live recording and charting add-ons
o See fish hiding in cover with FishReveal mode
o Increase contrast and viewability with all-new Imaging colour palettes

Display
o Backlight Color: Pure white LED
o Display Resolution: 800 x 480
o Display Size: 7 inches
o Screen Brightness: 1000 NITS
o Viewing Angles: 80° top/bottom, 80° left/right

Connectivity
o SD Card Storage: 1 slot (microSD 32 GB maximum)
o Sonar: 1 port
o Charts supported: C-MAP DISCOVER.

Sonar
o Sonar compatibility
o Integrated:
- CHIRP, Broadband, DownScan
o Max depth:
- 200 kHz: 152m (500ft)
- DownScan: 91m (300ft)
o Max range:
- SideScan: 183m (600ft) side-to-side

o Sonar frequencies
o CHIRP*:
- 200kHz (High)
- 83kHz (Medium)
- 50 kHz (Low)
-*depending on transducer
o DownScan:
- 455 kHz (Low)
- 800 kHz (High)
o SideScan:
- 455 kHz (Low)
- 800 kHz (High)

Electrical
o Power Consumption max: 550 mA @ 12 V DC with backlight on full
o Power Consumption min: 250 mA @ 12 V DC with backlight off
o Power Consumption typical: 550 mA @ 12 V DC with backlight on full
o Recommended Fuse Rating: 3A
o Supply Voltage: 12v DC (10.8-17VDC)
o 12v DC (10.8-17VDC)

Environment
o Humidity: 60°C, 95% relative humidity (RH) for 48 hours
o Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
o Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
o Waterproofrating: IPX7 with card door closed

GPS
o Correction: SBAS
o Time to First Fix: 45s

MFD
o Cartography included: Worldwide basemap chart
o Cartography supported: C-MAP DISCOVER, C-MAP Genesis Live
o Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails

Physical
o Compass Safe: 12" (300mm)
o Dimensions W x H x D: 225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
o Mounting Type: Gimbal bracket or dash mount
o Weight: 0.67 kg (1.48 lb)

Other
o Interface: Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
o Warranty Period: 1 Year + 4 additional years of upgrade options totaling 5 years
