Digital Yacht

Digital Yacht Enginelink Wireless NEMA 2000 Engine Interface

Escribe una reseña
| Haz una pregunta

ZDIGELINK 2 Year Warranty

£214.66 £234.00

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

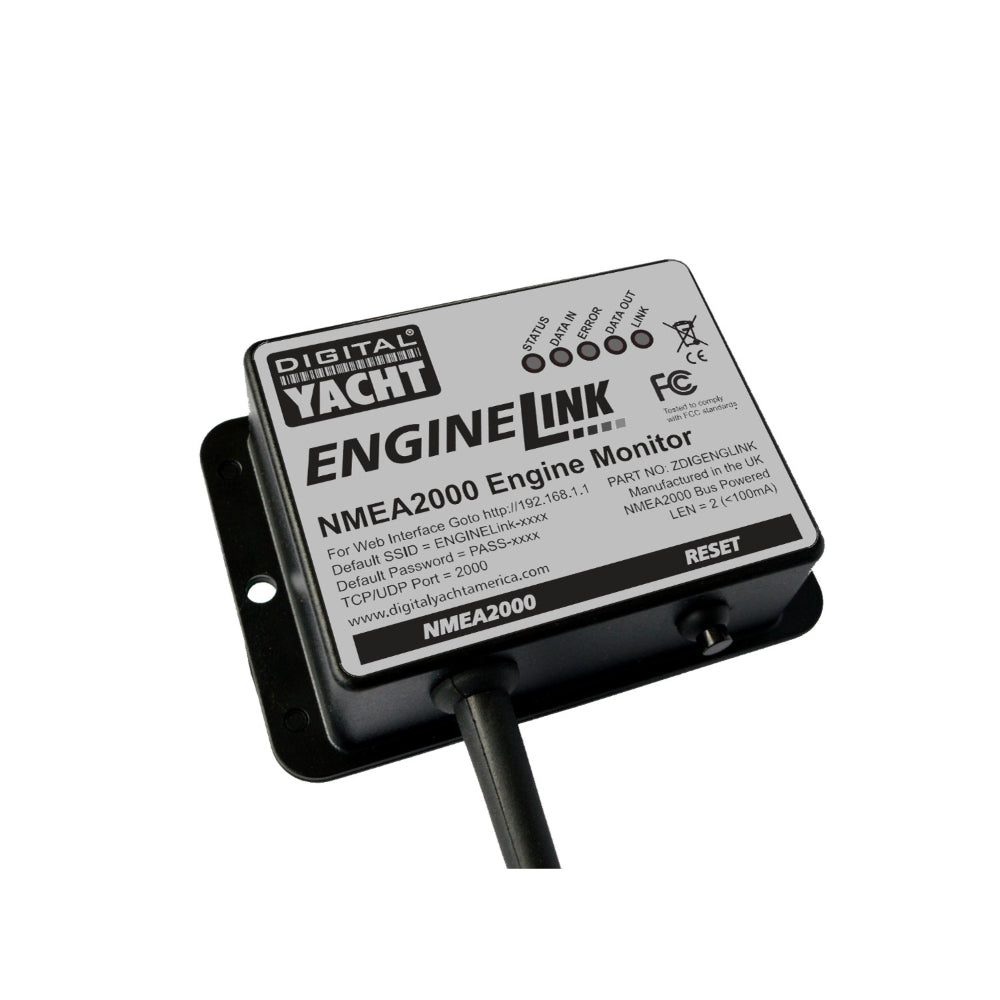

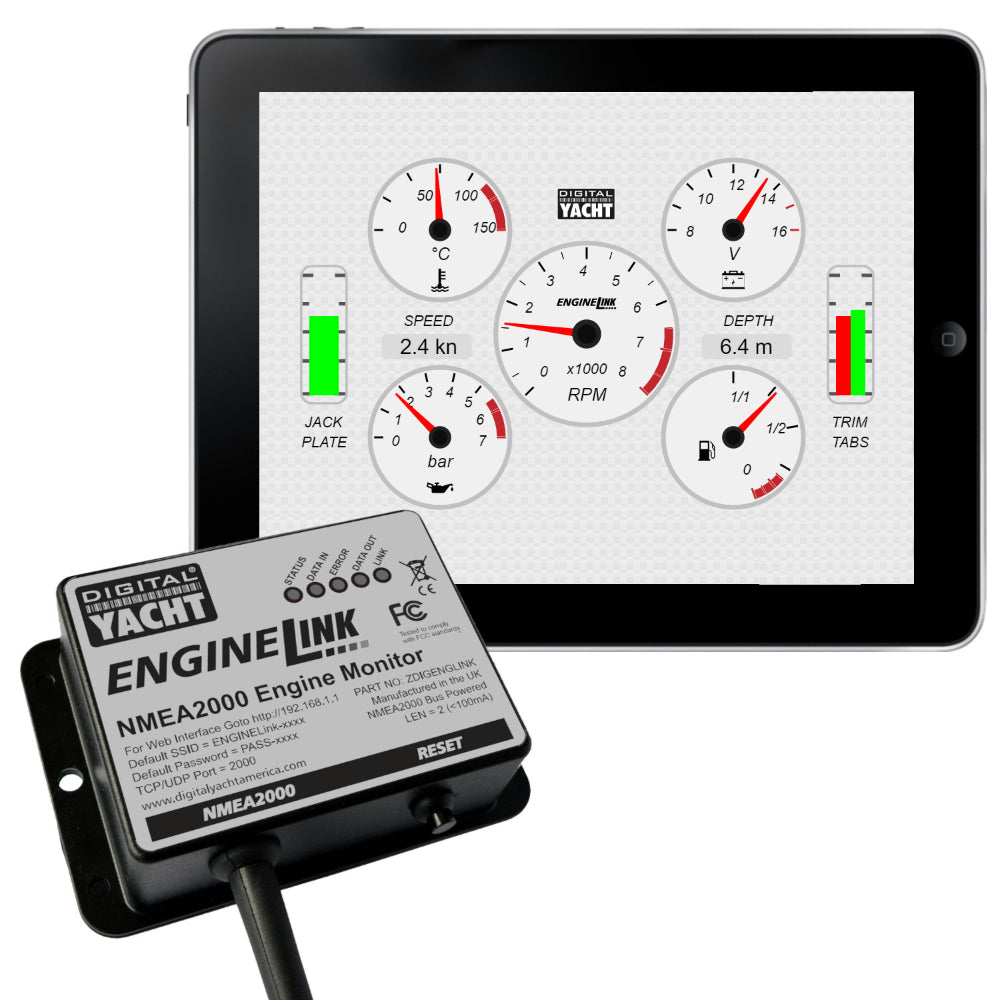

ENGINELink is a new NMEA 2000 wireless gateway that allows mobile phones and tablets to display engine data (utilising a NMEA 2000 interface) as well as providing a feed of AIS and GPS data to popular apps like Navionics NavLink iNavX SavyNavy AquaMaps and more.  Now boaters can have engine data plus their favourite charting app displays on their connected devices.

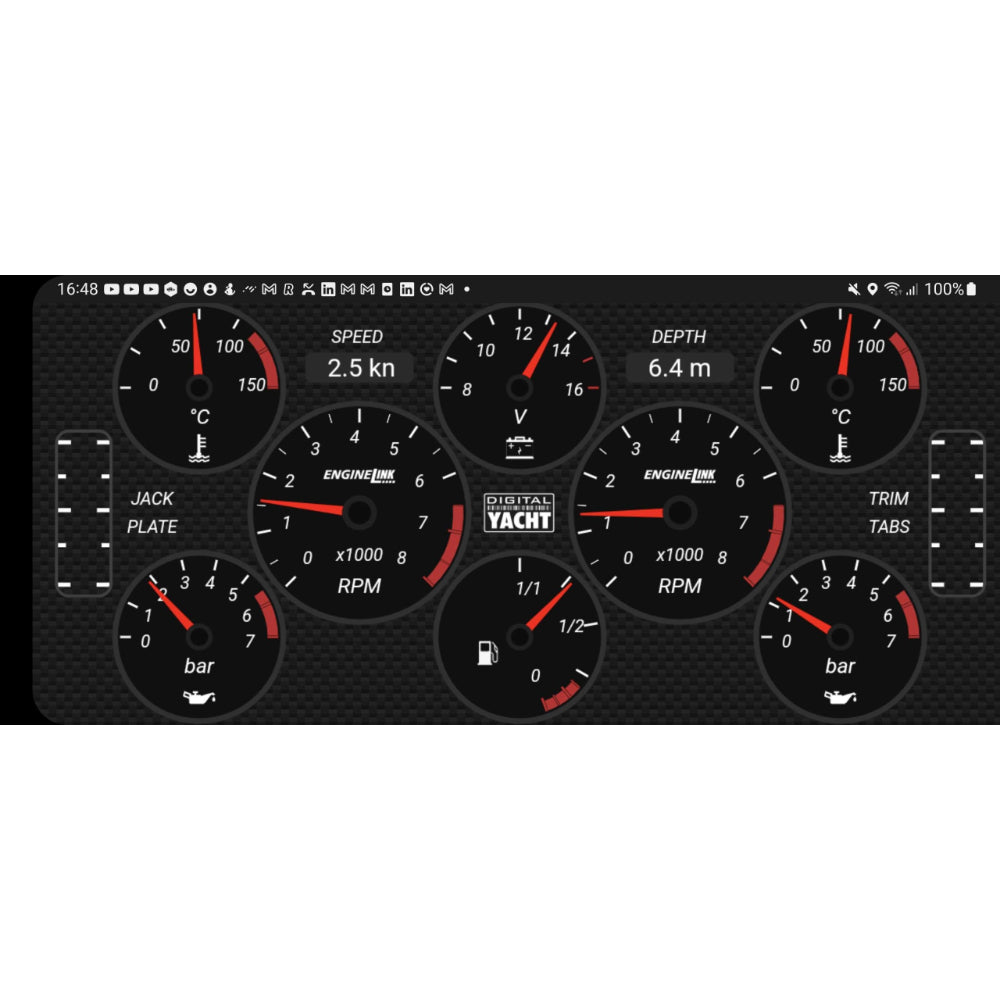

Engine information such as RPM temperature pressure and battery voltage are displayed as an attractive dashboard display through the web browser on the mobile device so there’s no need for a custom app. iOS and Android devices can display app data and a web browser page side by side so you can have your favourite charting app open alongside engine instrument displays.

Setup and installation is easy.  Just “T” into the NMEA 2000 backbone and ENGINELink is self powered from the network.  It creates a secure password protected local wifi network with up to 7 devices able to connect simultaneously.  UDP and TCP/IP protocols are supported too for compatibility with 3rd party apps.

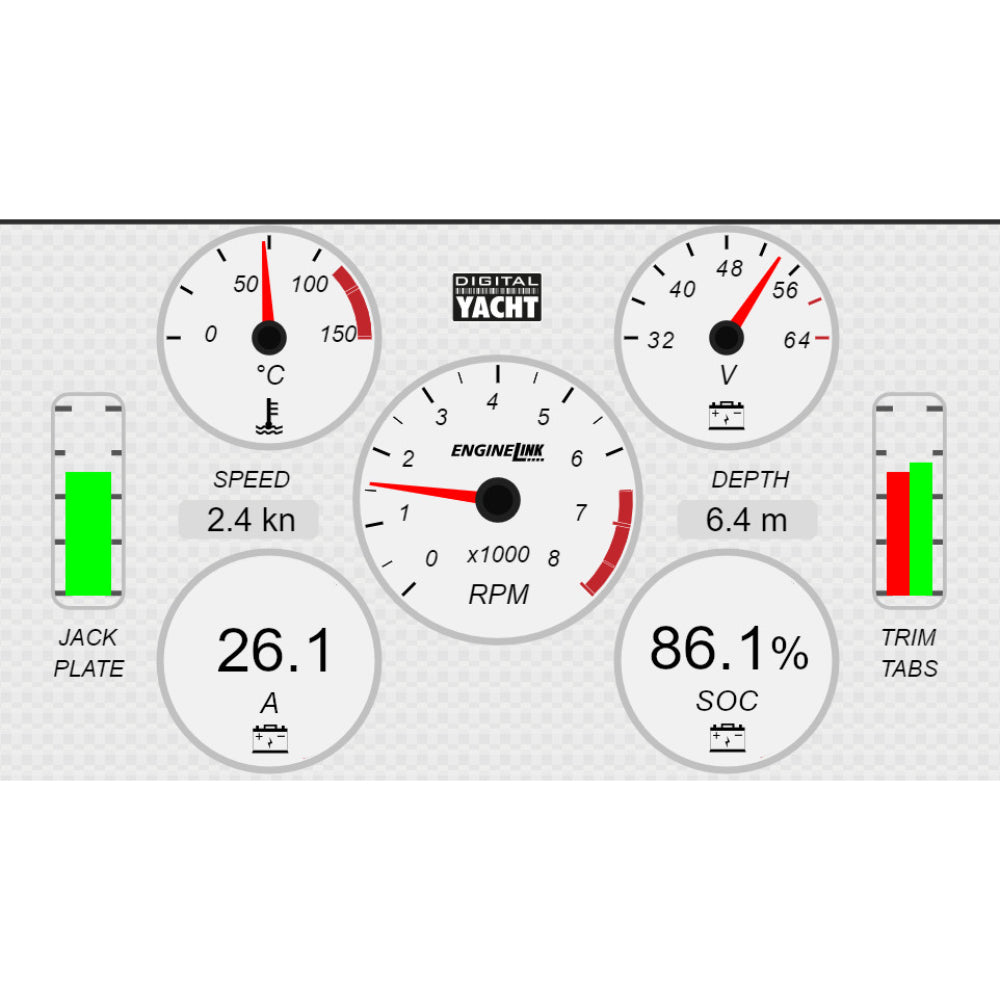

Most modern outboards and engines have an NMEA 2000 interface or the ability to add as an accessory and ENGINELink has preset dashboards for popular manufacturers including Honda Suzuki Tohatsu Mercury Yamaha Yanmar and Volvo. In addition ENGINELink has a dashboard for the new generation of electric engines that displays current consumption and battery capacity.

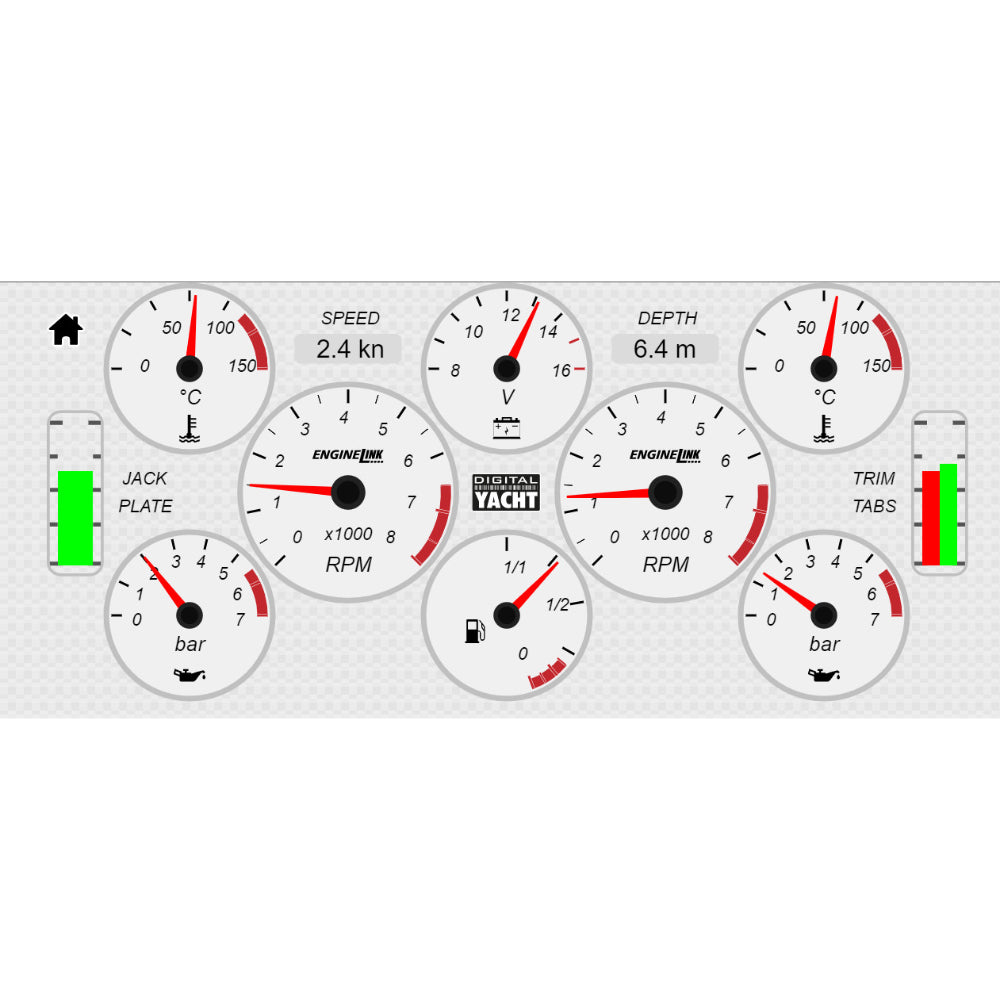

Either single or dual engine installations are currently supported and ENGINELink will work with any “NMEA 2000 ready” engine. If the vessel is fitted with NMEA 2000 compatible Trim Tabs or Jack Plates then the status of these performance critical accessories are also displayed on the dashboard.

Introduction

Dual Engine Setup

Electric Engine Setup

Features

o Wireless gateway for NMEA 2000 networks with integrated engine instrument displays
o Compatible with engines/outboards with NMEA 2000 capability
o Secure, password protected wifi network or connect to existing boat wifi network
o Displays for popular parameters like RPM, battery voltage, temperature, pressure, fuel,etc
o Dedicated electric engine display page
o Support for single or dual engines
o Simply connect to backbone and connect iPad, smart phone, tablet, PC or MAC via wifi – any device with a browser can display the instrument dash
o Streams real time AIS and GPS data to other apps such as Navionics too for precision boat GPS data and AIS overlay
o Displays data from NMEA 2000 compatible Trim Tabs and Jack Plates
o Easily updateable as engines offer more parameters
o Logging capability for diagnostics

Specifications

N/A (Not Applicable)
