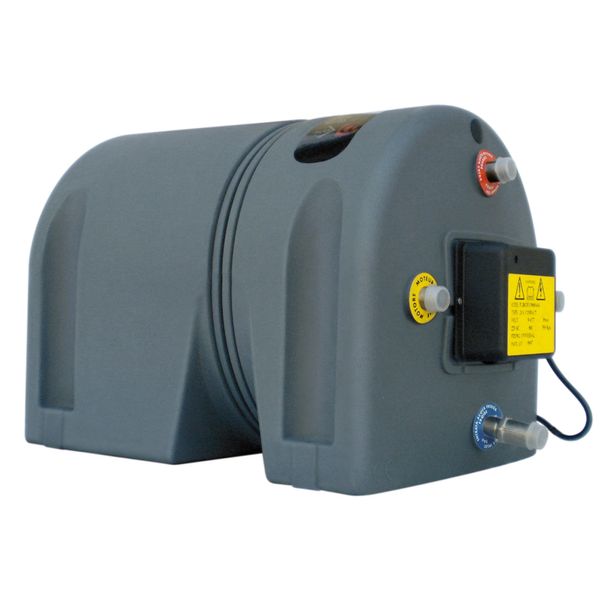

Quick Compact Calorifier Vertical / Horizontal (30L / 800W / 1 Coil)

Escribe una reseña
| Haz una pregunta

FLB030UC0800A00 3 Year Warranty

£590.65 £647.90

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

Quick calorifier with a capacity of 30 Litres and a wattage of 800W. This Sigmar Marine Compact calorifier is constructed with high quality materials specially designed for marine use. The tank and heat exchanger are made from AISI 316 stainless steel with 20mm thermal insulating polyurethane foam and sturdy plastic casing with integrated brackets.

The calorifier is suitable for vertical or horizontal installation to the bulkhead, deck-head or floor.

This calorifier produces hot water from the Incoloy electric heating element. Also featuring a safety / non-return valve that allows discharging of the water heater in case of disuse, set at 6 bar (±1).

This Boiler comes with a regulating thermostat with double safety and 1/2" engine and water fittings.

Electric cable with Schuko plug

220V Mains electrical immersion heaters, thermostatically controlled

Simple to fit with easy to identify connections & instruction manual

Quick sigmar compact calorifier manual

Part Number Volume Lt. (Gal) Width (mm) Length (mm) Height (mm) Heating Element 220 Volt Weight (kg)
9-93100 20 (5. 1/3) 366 430 358 800 Watt 7
9-93101 22 (6) 287 558 297 800 Watt 8
9-93102 30 (8) 366 540 358 800 Watt 9
9-93103 40 (10. 1/2) 366 660 358 800 Watt 11
9-93123 40 (10. 1/2) 366 660 358 800 Watt 13

Features

N/A (Not Applicable)

Specifications

o Capacity Description: 30 Litres (7.9 US Gallons)
o Material: Stainless Steel AISI 316 Heat Exchanger & Tank, Polyurethane Foam Tank Heat Insulation, Incoloy Electric Heating Element, Plastic Casing & Brackets
o Working Pressure: 5 bar (500 kPa)
o Primary Construction: Stainless Steel 316
o Calorifier Coil: Single
o Connections Description: Engine & Water: 1/2" BSP ISO 228 Thread
o Pressure Rating: Pressure Tested at: 5 bar (500 kPa), Safety Valve: 6 bar
o Brand: Quick
o Model: B030 UC
o Voltage Description: 220V AC
o Wattage: 800W
o Approvals: CE
o Height Description: 358mm
o Width: 366mm
o Length: 540mm
o Weight: 9kg
o Country of Origin: United Kingdom
