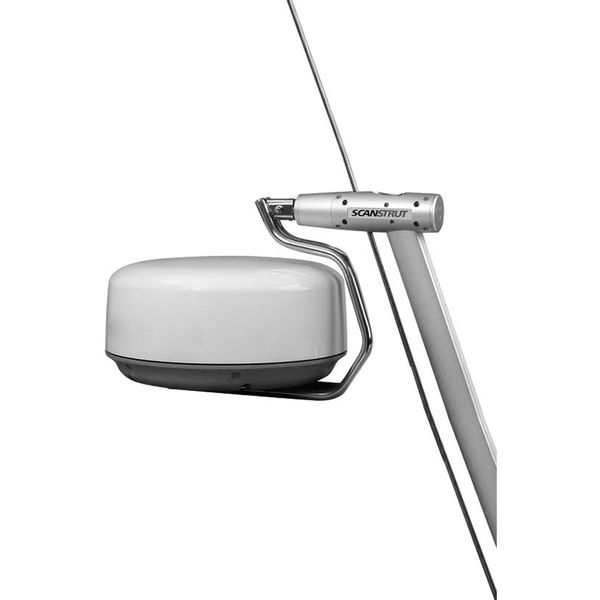

Scanstrut LMB-F2 Self-Levelling Radar Mount (Forward Backstay / 2.6m)

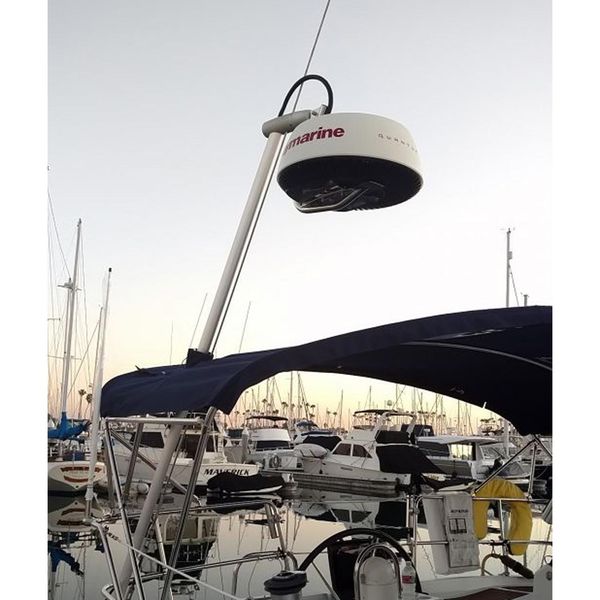

Maximize your Radar's performance with Scanstrut LMB-F2 self-levelling radar mount, measuring 2.6m high and constructed from the best marine-grade aluminium. The forward leaning mount sits forward of the backstay, keeping your radar away from any interference and leaving a clear deck free from obstruction. The backstay radar mount is designed to fit the most up-to-date radars from Furuno, including:

Radar Radomes:

- Furuno 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18") & NavNet (24")

- Humminbird AS 21RD4KW

- Interphase Mini RE-1, RE-8 & RE-9

- JRC 1000, 1000mk2, 1066, 1500 & 1500mk2

- Koden 2kW 12" & 4kW RB715A

- Lorenz 2kW

- Lowrance LRA-1800, RB714A & DX42

- Navman 8000 Series, 8084 & 8120 18"

- Nobeltec 2kW (20")

- Northstar M series/8000i (18")

- Seiwa SWR-1 & SWR-8

- Simrad GB40, NX40/45, NSE8/12, RB712A & DX42S

- Sitex MDS -1, MDS -8, MDS -9, MDS-12 & NKE-1066

- Techmarine T-72.01, T-72.02 & T-72.04

- Hydraulic damping: The main levelling unit has a fine-tuned damping system which reacts to major changes in heel angle of the boat. It is entirely maintenance-free and no power is required.

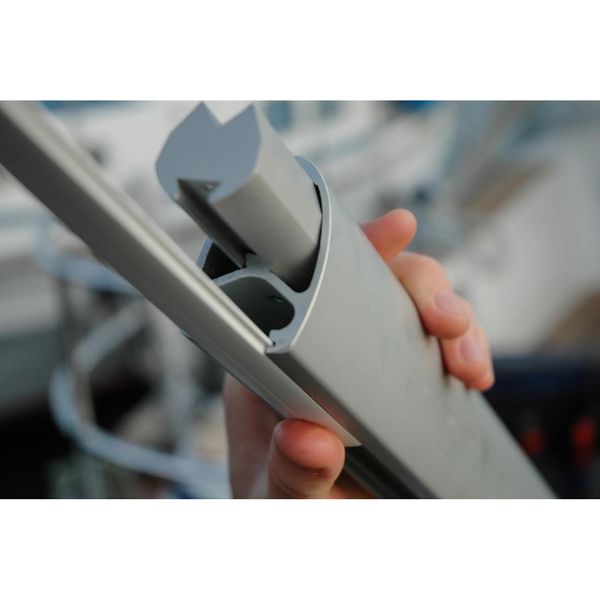

- Bespoke mounting pole: The 2.6m (8'6") aluminium mounting pole is supplied in 2 x 1.3m lengths with a hidden joiner piece. Cables are routed down a cable channel for a neat install. Extension pieces are available.

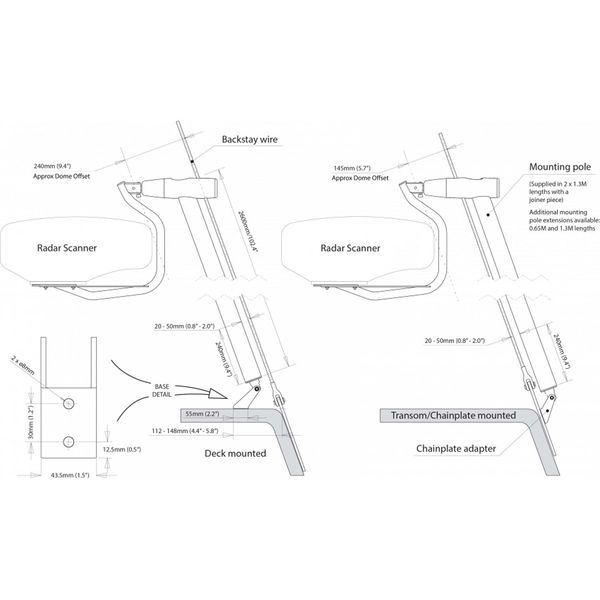

- High strength universal base for mounting pole: Eliminates loading on backstay. The base can be deck, transom or chain-plate mounted.

- Suitable for any yacht: Stainless radome cradle has a fine tune adjustment for backstay angle and the product can be installed on both adjustable and split backstays.

- Nylon backstay bushing supplied: Clamps around the backstay allowing cable tension to be adjusted.

- Mount your radar higher: Additional 0.6m and 1.3m lengths are available to mount your radome higher.

lmb f1 lmb f2 installation instructions

N/A (Not Applicable)

o Material: Marine Grade Aluminium
o Brand: Scanstrut
o Height Description: 2600mm (8'6")
o Width: Base: 43.5mm (1.5")
o Length: Base: 55mm (2.2")
