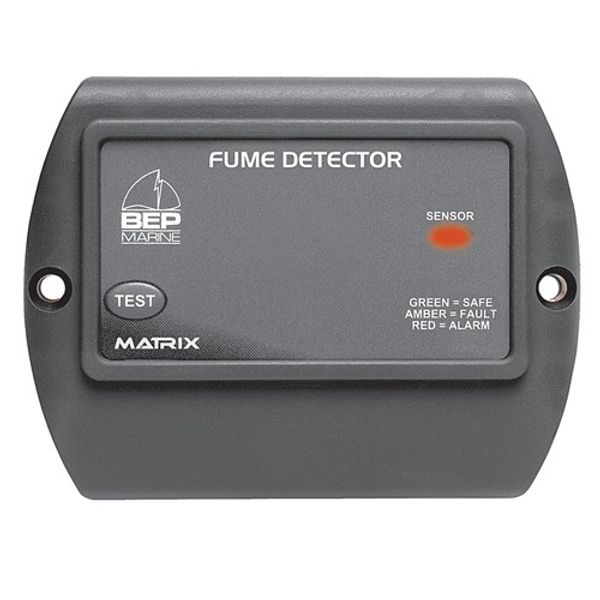

BEP Gas Fume Detector with 5m Sensor

GAS DETECTORS

The BEP Detectors use microprocessor control to ensure correct sensor sensitivity. The Detectors have the capability to control two sensors which detect both LPG and Petrol, with visual and audible alarms

Supplied with sensor (5 m cable) which is capable of detecting combustible gases.

o Dual sensors for LPG and Petrol
o Visual and audible alarms; provision for external alarm
o Automatic shut-off solenoid control with pulse and hold circuit for low power draw (600-GDL only)
o Self-testing
o Provision of bilge blower
o 67 x 88 x 17mm (2.4" x 3.5" x 0.7" )
o FD-2 is designed for an economic in-dash installation.

o Specifications:FD-2
o Voltage (V DC):10–32 V
o Current (mA):350 max
o Alarm Sensitivity:20% lower explosive limit
o Current@Out (mA):800 max.
o Solenoid (mA):700 pulse, 250 hold
