Blue Sea Systems

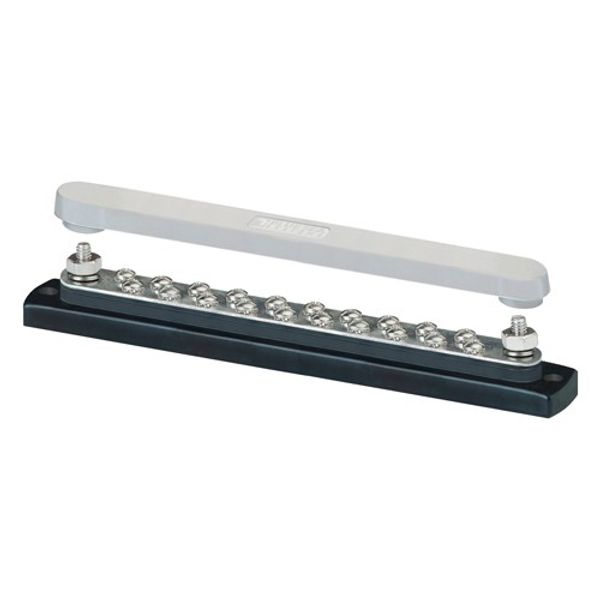

Blue Sea Common Busbar 20 Gang with Cover (150A)

Escribe una reseña
| Haz una pregunta

2312-BSS 3 Year Warranty

£34.40 £35.20

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción
150 AMP COMMON BUSBARS The industry standard busbar for positive distribution and the collection of negative or AC ground circuits Screw Terminal Torque: 15 in-lb (1.69 Nm) Stud Torque: 60 in-lb (6.78 Nm) 8-22302 Spare Cover

Features

N/A (Not Applicable)

Specifications

o Material: Bus: Tin-Plated Copper (CDA 110 / UNS 11000), Base: Glass Reinforced Thermoplastics (UL 94-V0 Rated), Cover: Clear Polycarbonate
o Connections Description: Terminals: 1/4" Stud, #8-32 Screw
o Brand: Blue Sea Systems
o Colour: Black
o Voltage Description: 300V AC / 48V DC maximum
o Amps Description: Continuous: 130A AC & 150A DC
o Approvals: CE

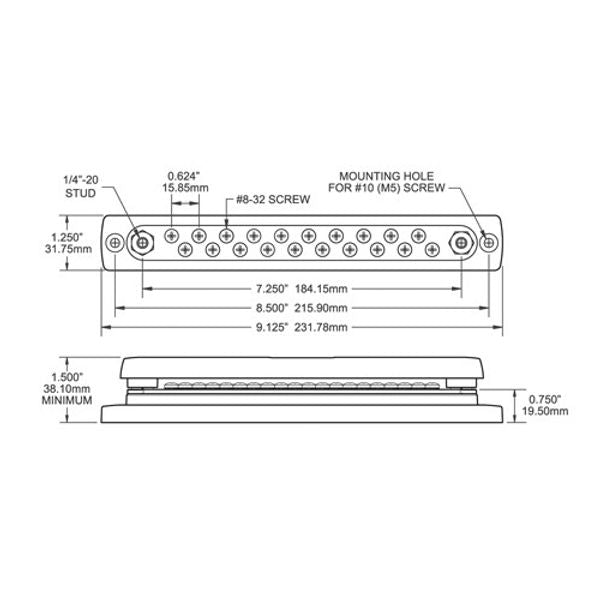

o Height Description: 36.43mm (1.4") minimum
o Width: 31.75mm (1-1/4")
o Length: 234.95mm (9-1/4")
o Rating: 150A
o Dimensions: Distance Between Mounting Hole Centres: 215.9mm (8-1/2")
