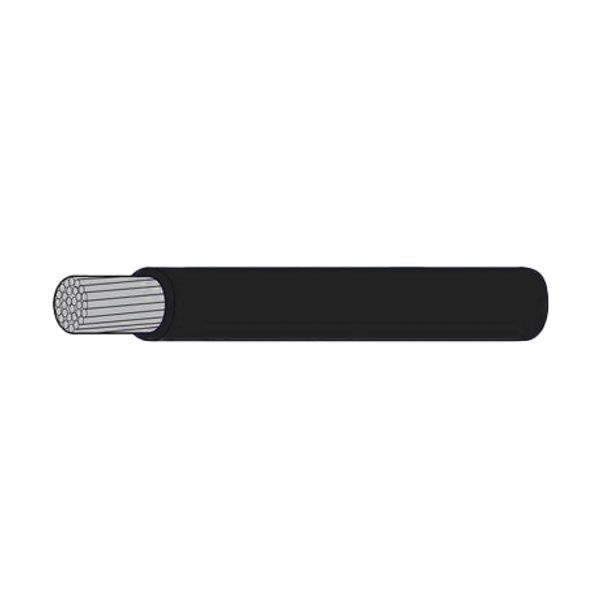

Oceanflex 1 Core Tinned Cable 21/030 1.5mm2 Black 500m

High temperature, thin wall, low voltage, wiring cables, suitable for use in automotive, marine, and other harsh environments. The tinned copper conductors make this cable more resistant to corrosion. Specifications: o *Conductor Specification: 21/0.30mm o Conductor Cross Section: 1.5mm2 o Maximum Overall Diameter: 2.4mm o Nominal Current Rating**: 21.0 Amps o Maximum Loading 12 Volts: 252 W o Maximum Loading 24 Volts: 504 W o Resistance Per Metre at 20C: 0.0130 Ohms o Reel Size: 500 metres o Colour: Black *The conductor specifications shown are representative configurations, actual cable strand may differ slightly, but will meet resistance values shown. **Nominal current amperage ratings are provided as a guide only and can vary depending on application, conditions and environmental factors. If in doubt, please consult a qualified electrician.

o Cores manufactured to ISO 6722-1:2011 (class B) 105?C
o Tinned Copper Conductors, PVC Insulated
o Suitable for use at temperatures from -40?C to 105?C with excursions up to 120?C
o Twins and multicores PVC sheathed at 70?C
o Suitable for 12v and 24v systems (maximum 60v)
o Good resistance to petrol, diesel, lubricating oils and diluted acid
o Very good resistance to moisture
o PVC insulation saves weight and offers good resistance to abrasion and cut through
o Cables are printed with the specification on the insulation
o Manufactured in the UK

o Style: Thin Wall Cable
o Cable Conductor: Tinned Copper
o Cable Cores: 1 Core
o Unit of Sale: 500 Metres
o Cable Insulation: Hard Grade PVC
o Conductor Specifications: 21/0.30 mm
o Cable Conductor Cross Section Description: 1.5mm?
o Resistance Per Metre at 20degC: 0.00130 ohms
o Shape Description: Round
o Brand: Oceanflex
o Colour: Black
o Voltage Description: Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
o Amps Description: Nominal Current Rating: 21A
o Approvals: Manufactured in accordance with ISO6722: 2011 (Class B)
o Temperature Range: -40C to +105C (with excursions to 120C max)
o Diameter Description: Max Outside Diameter: 2.4mm
o Country of Origin: United Kingdom
