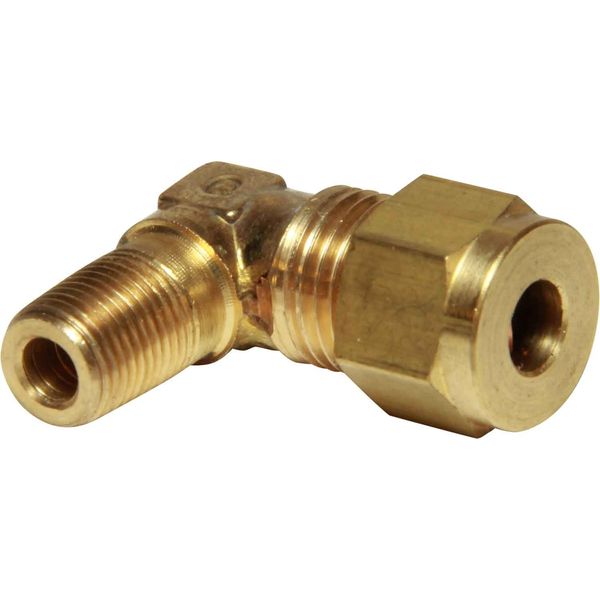

AG Brass Male Elbow Coupling 1/4" x 1/8" BSP Taper

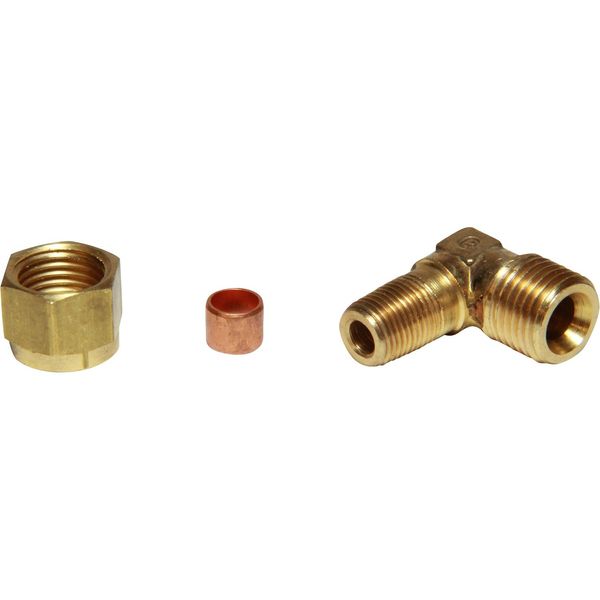

This brass threaded compression elbow features a 1/8" BSP Taper male thread one end and a 1/4" compression pipe connection the other end. The AG range of 90 degree brass imperial BSP male threaded compression elbows are supplied complete with nuts and annealed copper rings as standard for use with copper tube. AG 90 degree compression fittings are manufactured to BS 2051 part 2 standards and from materials to all of the following standards - Bar parts: BS EN 12164, CW609N, Stampings: BS EN 12164, CW617N, Castings: BS EN 1982, CC491K, Copper rings: BS EN 12449, CW024A.

N/A (Not Applicable)

o Material: Brass
o Compression Fitting Size: 1/4"
o Fitting: Elbow
o Primary Construction: Brass
o Thread Connection: Compression|BSP Tapered
o Thread Fitting Size: 1/8"
o Thread Gender: Male
o Thread Size: 1/8" BSP Tapered Male
o Brand: AG
o Angle: 90 Degree
