Actisense PRO-MUX-2 NMEA 0183 Intelligent Multiplexer

Escribe una reseña
| Haz una pregunta

PRO-MUX-2 5 Year Warranty

£578.66 £690.12

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

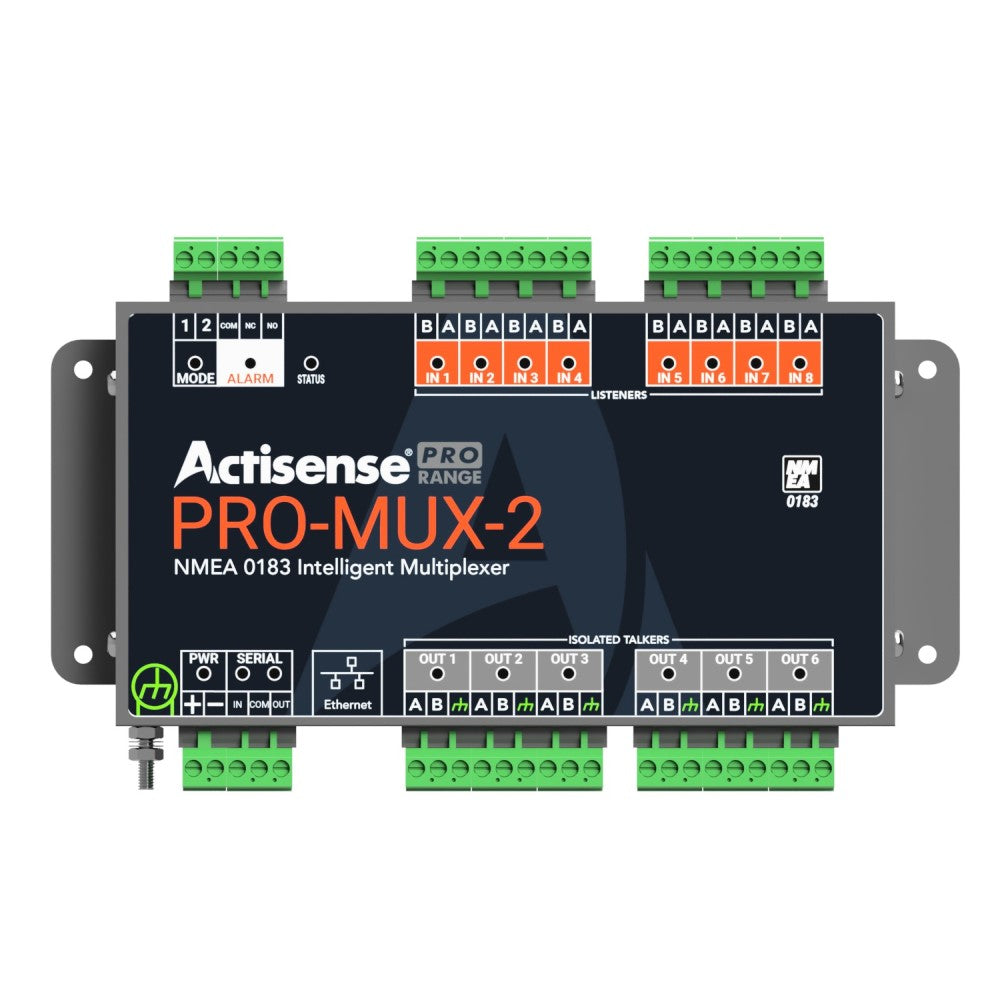

The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.
  • 8 OPTO-isolated NMEA 0183 inputs
  • 6 ISO-Drive NMEA 0183 outputs
  • Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output)
  • 0183 streaming via Ethernet
  • Alarm output (N/O and N/C contacts)
  • Designed for 12- and 24-Volt supply
  • Isolation to battery supply
  • Configurable input and output baud rates for rate conversion
  • Data combining from any input to any output
  • 2 independent Autoswitch virtual inputs with priority
  • Advanced sentence-based filtering / routing
  • Diagnostic LEDs on all inputs and outputs
  • Alarm mode and Bi-colour Status LED’s
  • 2-part pluggable connector system supports both screw and screwless terminals
  • DIN rail or Panel mountable
  • Advanced statistics are available via a Web Browser

Eight OPTO-isolated inputs and six ISO-Drive isolated outputs. Offering device protection and excellent flexibility all in one product.


Introducing the Actisense PRO-MUX-2 the intelligent type-approved PRO range multiplexer.

The PRO-MUX-2 is rugged with a stainless steel housing and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs six NMEA 0183 outputs a bi-directional serial port and an Ethernet port the PRO-MUX-2 is a perfect solution for larger leisure vessels commercial shipping and is a great addition for systems that require type-approved devices.

The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems from leisure through to class vessels.

The eight NMEA 0183 inputs can be routed to any of the six NMEA 0183 outputs providing a highly customisable network. A bi-directional serial port and an Ethernet port allow for simple configuration and diagnostics using Actisense software.

The configuration tool is accessible via any popular web browser (using the Ethernet port) so there are no PC operating system compatibility issues to contend with. Using the web based configuration tool will allow the user to finely tune the exact data available on each output. The default setup is for all data to go to all outputs.

2-part pluggable connectors on the PRO-MUX-2 (screw or screwless terminals available) mean that new devices can easily be installed without the need to remove the PRO-MUX-2 from its mounted location. A professional DIN rail mounting mechanism keeps the PRO-MUX-2 secure in high vibration environments. Helpful LEDs indicate power data in data out and the alarm status to aid diagnostics.

Features

N/A (Not Applicable)

Specifications

Power Supply
o Input Supply Voltage: 10 to 35 V DC
o Input Supply Current: 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
o Input Protection: Continuous reverse polarity, transient overvoltage and ESD protection
o Power Indicator: LED, Blue – indicates unit is functioning correctly
o Input Supply Connector: Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

NMEA 0183 Port – Listener & Talker
o Number of Listener / Input Ports: 8 isolated NMEA 0183 Listeners
o Number of Talker / Output Ports: 6 isolated NMEA 0183 Talkers
o Compatibility: Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
o Speed / baud rate: 4800 to 38400 bps
o Talker Output Voltage Drive: >= 2.2V (differential) into 100 ohm
o Talker Output Current Drive: 20 mA maximum per output
o Talker Output Protection: Short circuit and ESD
o Talker Data Indicator: LED, Orange (Flashes at data rate)
o Listener Input Voltage Tolerance: -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
o Listener Input Protection: Current limited, overdrive protection to 40 VDC and ESD protection
o Listener Data Indicator: LED, Green (Flashes to indicate valid input)
o Connectors: Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Serial Port
o Compatibility: RS422 & RS232 compatible. RS485 Listener compatible
o Speed / baud rate: 4800 to 115200 bps
o Output Voltage Drive: >= 2.1V (differential) into 100 ohm
o Output Current Drive: 20 mA max.
o Output Protection: Short circuit and ESD
o Input Voltage Tolerance: -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
o Input Protection: Current limited, overdrive protection to 40 VDC and ESD protection
o Data Indicators: LED’s: Green = Receive, Orange = Transmit
o Connectors: Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Ethernet Port
o Host Interface: 10/100BaseT, automatic polarity detection
o Supprted Protocols: TCP/IP for configuration and firmware updating
o : TCP/IP and UDP for NMEA 0183 comms
o Indicators: Green = Link/Activity, Yellow = 100 Mbps
o Connector: RJ45

Isolation
o NMEA 0183 Listener: OPTO-Isolated, Hi-Pot tested to 1000V
o NMEA 0183 Talker: Uses IsoDrive™, Hi-Pot tested to 1000V
o Serial Port: Uses IsoDrive™, Hi-Pot tested to 1000V
o Alarm Relay: Hi-Pot tested to 1000V
o Ethernet Port: 2kV for 60s

Mode Inputs
o Input Voltage Range: 0 to 35V DC
o Protection: Transient overvoltage and ESD protection
o Connectors: Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Alarm Output
o Contacts: Common, Normally Open and Normally Closed
o Alarm Indicator: LED, Red indicates a valid alarm condition
o Contact Ratings: 35VAC / 50VDC
o Connectors: Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Mechanical
o Housing Material: 316 Stainless Steel
o Dimensions: 210mm (W) x 128mm (H) x 27mm (D)
o Weight: 540g
o Mounting: Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications
o EMC: IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
o Compass Safe Distance: 175mm
o Type Approval Certificate: TBD
o Operating Temperature: -25 to +70°C
o Storage Temperature: -40 to +85°C
o Relative Humidity (RH): 95% @ 55°C
o Environmental Protection: IP40
