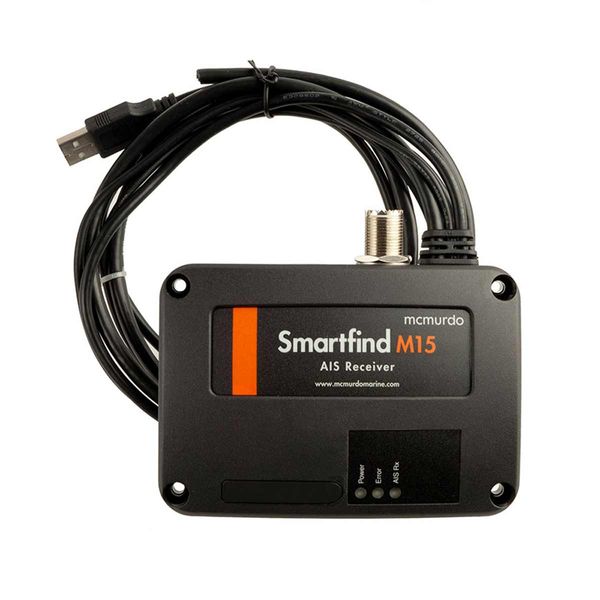

McMurdo SmartFind M15 Dual Channel AIS Receiver

The McMurdo SmartFind M15 AIS Receiver receives all Class A, Class B, AIS SART, AIS MOB and AIS Base Station transmissions, plotting their positions directly on a chart plotter or PC/Mac using the PC AIS Viewer software supplied. At only 128 x 88 x 36mm, the McMurdo SmartFind M15 is compact and easy to install and set up, supporting integration with existing navigation systems via its NMEA0183 or USB interfaces. - Led Indication: Power, Error, AIS Rx, Radio Tx (M15S model only). - VHF Radio: M15S - Female: Type M (PL 259) - VHF Port Insertion Loss: M155 - Receiver Pa: 3.5dB - Transmit Path: 1.2dB

o Dual channel AIS receiver
o Displays all AIS message types
o NMEA
o USB 2.0
o 12/24V DC or USB power
o Compact and economical

o Brand: McMurdo
o Voltage Description: 12V - 24V DC
o Wattage: <1.60 Watt
o Contents: Smartfind M15 AIS Receiver with integrated Power/USB/ NMEA0183 Cable 1m, User Manual, CD-ROM (User���s manual indigital format, Configuration Utility, USB driver, AIS Viewer), Mounting screws 4 M3.5x25,
o Height Description: 36mm (1.40")
o Width: 128mm (4.99")
o Depth: 88mm (3.43")
o Length: Cable Length (power, USB, NMEA 0183): 1000mm
o Weight: 210g (inc. cable)
o Operating Temperature: -15 to +55 C
