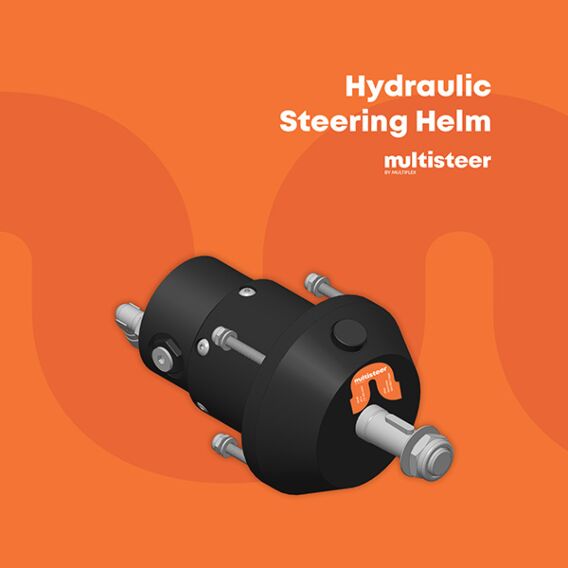

Flush Mount Hydraulic Helm Pump 16 cc / 0.9 ci

› Robust design
› Ball Bearing Piston race
› Built-in Lock Valve to safeguard feedback from the Rudder
› Integral Relief Valve to protect the steering system from excess pressure
› 3/4” standard tapered Shaft
› Easily accessible Lock Valve Seals & Shaft Seal for replacement
› All Helms include a pair of 90° adjustable Chrome plated Brass Elbow Fittings to connect to 5/16” Hose tube
› Both the Ports are tightly locked with red dummy plugs for hose connection to the Cylinder
› The dummy port is locked with Hex Stud which can be used to connect to the dual station kit
› Mounting Hardware & Template are provided with helms
› Helm mounting is designed in such a way that it is easily interchangeable with other brands
› Robust design
› Ball bearing piston race
› Built-in lock valve to safeguard feedback from the rudder
› Integral relief valve to protect the steering system from excess pressure
› 3/4” standard tapered shaft
› Easily accessible lock valve seals & shaft seal for replacement
› All Helms include a pair of 90° adjustable chrome plated brass elbow fittings to connect to 5/16” hose tube
› Both the ports are tightly locked with dummy plugs to avoid oil leakage
› The dummy port is locked with a dummy plug which can be used to connect to the dual station kit when required
› Mounting hardware & template are provided with helms
› Helm mounting is designed in such a way that it is easily interchangeable with other brands
