AMC 3 Core TW Cable 32/0.20 1.0mm2 100m Black

Auto Marine thin wall electrical cable, with 1mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand three core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade black PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.

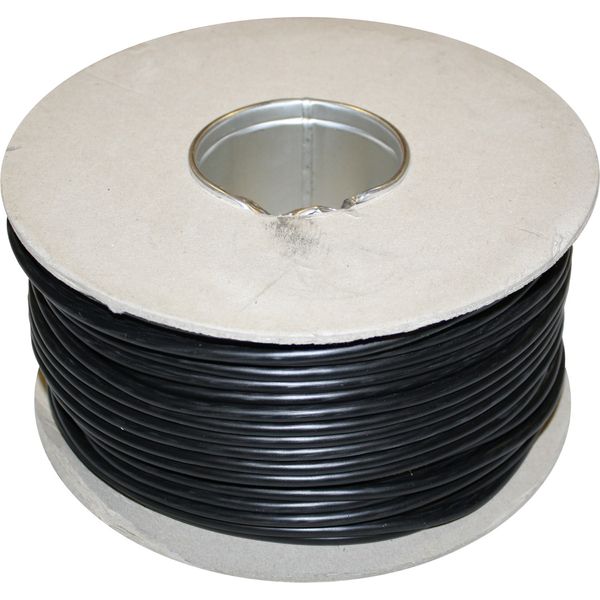

This is a 100 metre cable reel with a rounded black PVC wall.

N/A (Not Applicable)

o Maximum Load Description: 12V = 198 Watts, 24V = 396 Watts
o Style: Thin Wall Cable
o Cable Conductor: Plain Copper
o Cable Cores: 3 Core
o Unit of Sale: 100 Metres
o Cable Inner Colours: Red, Black & Green
o Cable Insulation: Hard Grade PVC
o Conductor Specifications: 3 x 32/0.20 mm
o Cable Conductor Cross Section Description: 1.0mm?
o Replaces: 712319-A
o Resistance Per Metre at 20degC: 0.0185 ohms
o Shape Description: Round
o Brand: AMC
o Colour: Black
o Voltage Description: Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
o Amps Description: Nominal Current Rating: 16.5A
o Approvals: Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005
o Temperature Range: -40C to +105C (with excursions to 120C max)
o Diameter Description: Max Outside Diameter: 5.5mm
o Country of Origin: United Kingdom
