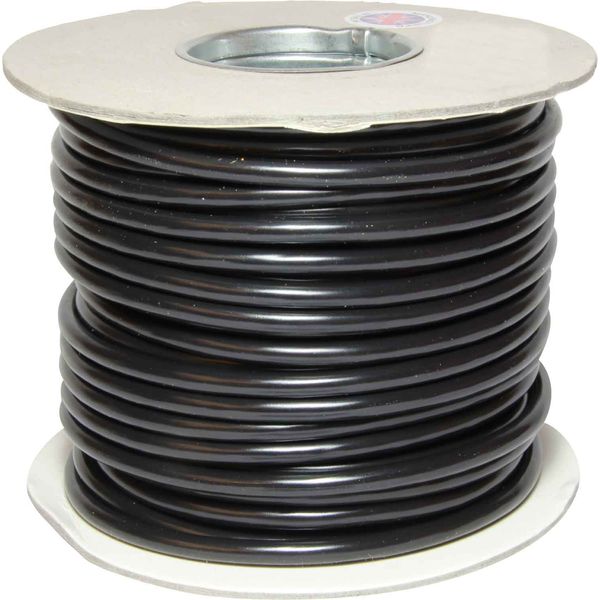

AMC 1 Core TW Cable 80/0.40 10.0mm2 100m Black

Technical Specifications Reduced insulation gives considerable savings in weight & volume Good resistance to petrol, diesel, lubricating oils, diluted acids & moisture Hard grade PVC insulation offers good resistance to abrasion & cut through Suitable for use at temperatures from -40C to +105C with excursions up to 120?C. Maximum voltage 60V Suitable for 12v or 24v systems (Maximum voltage 60v). Manufactured in accordance with ISO 6722-1:2011 (Class B). Plain copper conductors to BS EN 60228:2005, PVC insulated.

N/A (Not Applicable)

o Maximum Load Description: 12V = 840 Watts, 24V = 1680 Watts
o Style: Thin Wall Cable
o Cable Conductor: Plain Copper
o Cable Cores: 1 Core
o Unit of Sale: 100 Metres
o Cable Insulation: Hard Grade PVC
o Conductor Specifications: 80/0.40 mm
o Cable Conductor Cross Section Description: 10.0mm?
o Resistance Per Metre at 20degC: 0.00182 ohms
o Shape Description: Round
o Brand: AMC
o Colour: Black
o Voltage Description: Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
o Amps Description: Nominal Current Rating: 70A
o Approvals: Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005
o Temperature Range: -40C to +105C (with excursions to 120C max)
o Diameter Description: Max Outside Diameter: 5.6mm
o Country of Origin: United Kingdom
