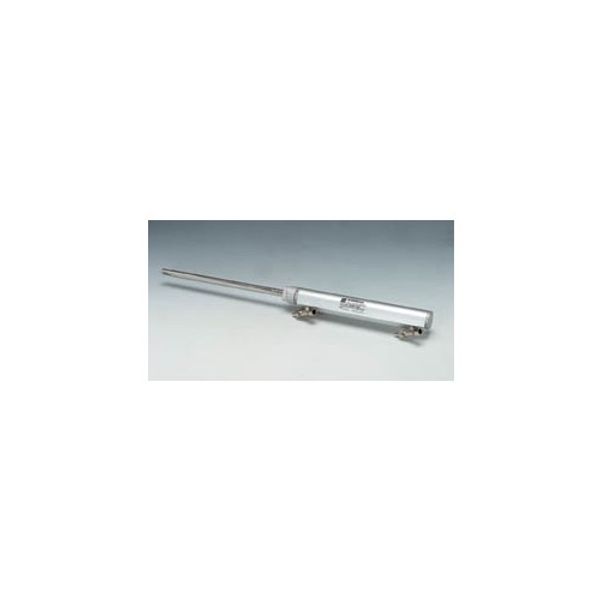

Ultraflex UC132-OBS Outboard Side Mount Hydraulic Cylinder

Write a review
| Ask a question
£294.62 £420.54

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description

4-48064 side mount cylinder features a turning nut for a fast and easy installation to the engine tube (Patented).

Clearance required at the engine tube side: 375mm (14.76").

WARNING: The UC-132-OBS is not recommended for use in installations where the boat speed exceeds 45mph (45knots),

& the power exceeds max Coast Guard recommendation for the boat.

Not intended for racing applications.

Ultraflex UC-132-OBS Outboard Side Mount Hydraulic Cylinder is suitable for the following sterndrive applications:

Mercruiser power assisted engines:

- Alpha (To date)

- Bravo One (To date)

- Bravo Two (To date)

- Bravo Three (To date)

Volvo Penta power assisted engines:

- 280 (To date)

- 290 (To date)

- DP-S (To date)

Specifications Part No. 4-48064
Volume 132/163 - 8/9.95cu.in.
Output Force 464/574kg - 1023/1265lbs.
Inside Diameter 32mm - 1.25"
Stroke 203mm - 8"
3/8" (9.5mm) Fittings For connection to outboard hose kits.

Features

N/A (Not Applicable)

Specifications

o Capacity Description: 132/163cc
o Output: 464/574kg - 1023/1265lbs.
o Fitting: Hose Connector
o Connections Description: 3/8" OD Pipe
o Stroke: 203mm (8")
o Brand: Ultraflex
o Model: UC132-OBS
o Diameter Description: 32mm - 1.25" ID
o Mounting Description: Side
