Shadow-Caster SCR-16 Underwater 4" Bronze LED Light - Blue & White

Write a review
| Ask a question

SCR-16-BW-BZ-10 1 Year Manufacturer

£507.35 £584.12

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description

  • Proprietary clear-gel-filled design, injected through entire unit - eliminates condensation and/or water intrusion under stress
  • Tough, scratch resistant, tempered glass lens with bronze housing - impervious to acetone, solvents and demanding marine environments
  • Transient surge and reverse polarity protection - dramatically prolongs unit life
  • Thermal throttling technology - enables safe operation even out of water
  • From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
  • 3-Year Warranty
<a class="pagebuilder-button-primary" href="https://www.shadow-caster.com/media/2020/07/SCR-16-Series-Underwater-LED-Lights-Datasheet_HR.pdf" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fas fa-file-alt"></i> <span data-element="link_text" style="font-weight: 600;"> Datasheet</span> </a> <a class="pagebuilder-button-primary" href="https://www.shadow-caster.com/media/SCR-BW-Operating-Instruction-Sheet_HR.pdf" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fas fa-toggle-on"></i> <span data-element="link_text" style="font-weight: 600;"> Operation</span> </a> <a class="pagebuilder-button-primary" href="https://www.shadow-caster.com/media/2020/07/SCR-Series_24_16-Installation-instructions_HR.pdf" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fas fa-wrench"></i> <span data-element="link_text" style="font-weight: 600;"> Installation</span> </a> <a class="pagebuilder-button-primary" href="https://www.shadow-caster.com/media/SCM-Switch-with-SCR-Underwater-Lights.pdf" target="_blank" style="text-align: center; font-weight: normal;"> <i class="fas fa-code-branch"></i> <span data-element="link_text" style="font-weight: 600;"> Wiring</span> </a> <a class="pagebuilder-button-primary" href="#video" style="text-align: center; font-weight: normal;"> <i class="fab fa-youtube"></i> <span data-element="link_text" style="font-weight: 600;"> Video</span> </a>

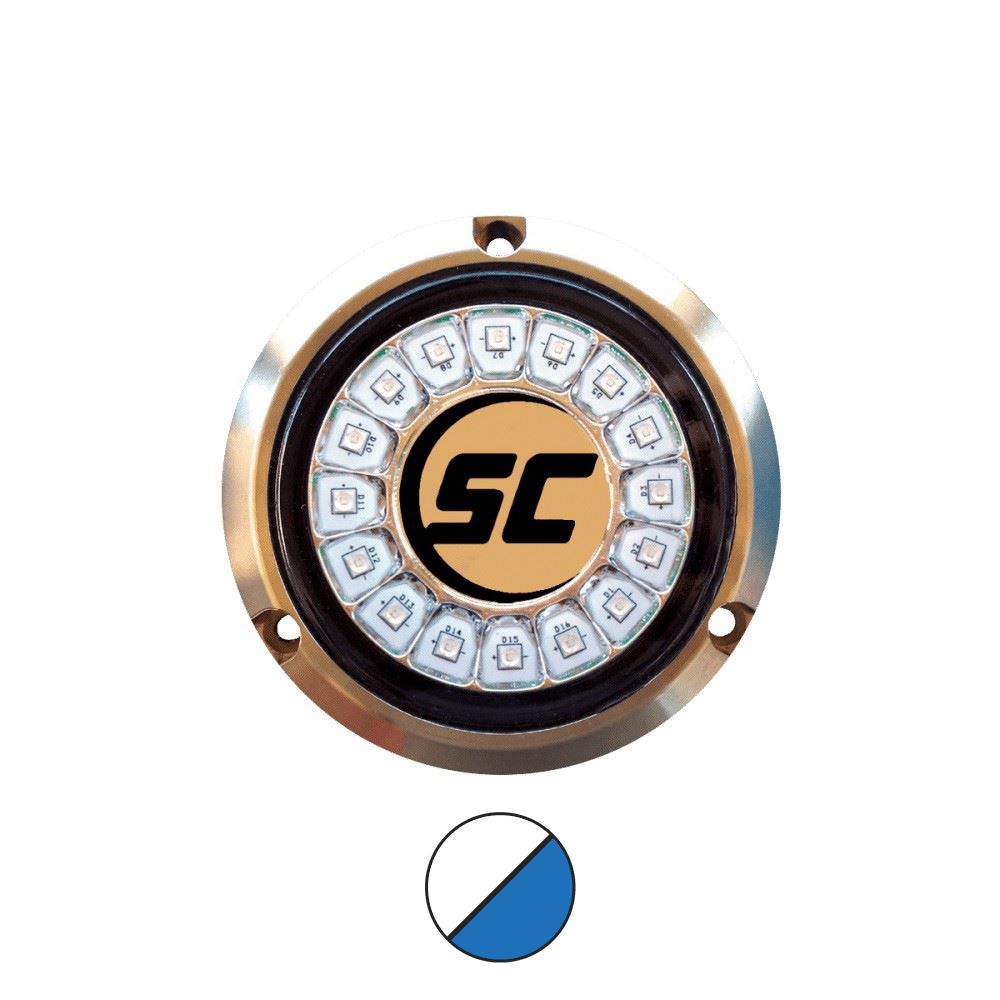

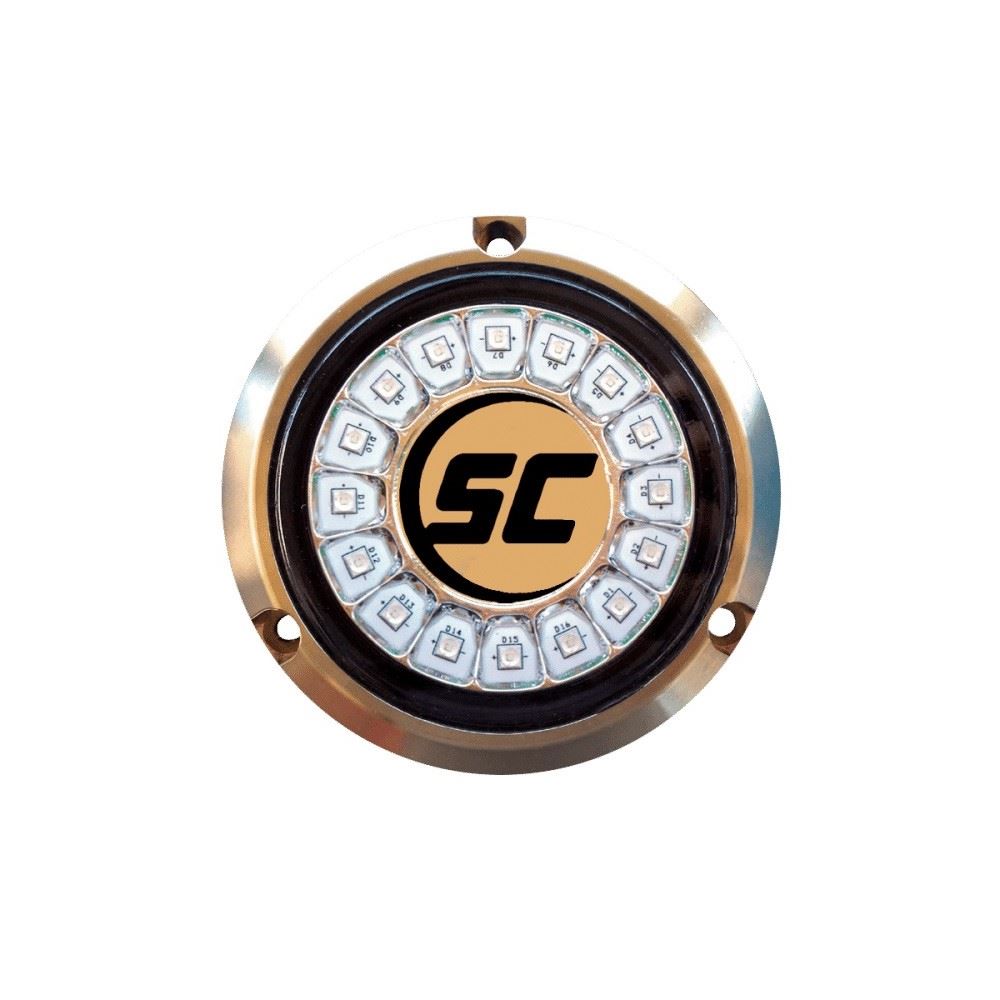

The SCR-16 is a 16 LED round underwater marine light and provides your vessel with 60 watts of intense LED lighting. The SCR-16’s are designed within a compact 4″ diameter bronze housing for under waterline surface mounting. Single or two-colour versions available with variable brightness and a wide array of control options.

Tehnical Information

  • Up to 7,000 lumens
  • 120° beam angle
  • 60 watts power draw
  • 5 amps operating current draw @ 12 volts
  • 10-30 volts input
  • 4” (102 mm) OD
  • IP68 fully submerisble waterproof design

Control Options

Power Toggle Control

Quickly toggle power source to advance to next colour or brightness level. Used with a single colour lights allows for light on/off, fade in/out and strobe. Two colour lights allows either single colour on, fade between colours and strobe current colour. Full colour lights allow for any single colour on, fade blue to white, fade through all 12 colours and strobe current colour.

Push Button Control

Connect to any push button controller. Ask about Shadow-Caster’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements. Used with a single colour lights allows for light on/off, fade in/out and strobe. Two colour lights allows either single colour on, fade between colours and strobe current colour. Full colour lights allow for any single colour on, fade blue to white, fade through all 12 colours and strobe current colour.

Shadow-Net Control

Shadow-NET is a multi-channel communications platform created by Shadow-Caster to allow seamless integration and control of all of your boat’s lighting. Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET control module (SCM-MFD-LC) & app. Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of colour and fading, dimming, strobe rate, music sync, multiple zones and much more.

Features

N/A (Not Applicable)

Specifications

N/A (Not Applicable)
