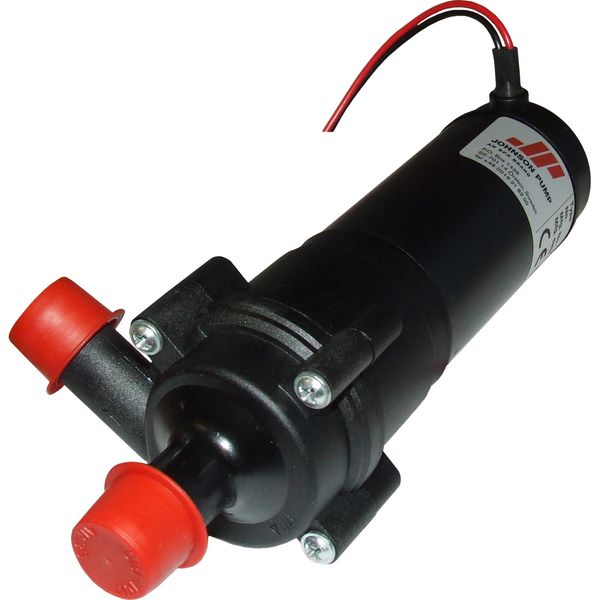

Johnson Circulation Pump CM10P7-1 with 16mm Ports 24V

A line of compact centrifugal pumps which combine high flow rates with very low electric current consumption, making them ideally suited for circulating fresh water in live fish tanks, heating and cooling systems. But not saltwater. Withstands dry running up to 30 mins 5000 hour service life rated Seal-less design makes 100% leak proof Technical Specifications: Pump Body: PPA thermoplastic Impeller: PPS thermoplastic O-ring: EPDM Shaft: Stainless Steel Magnet housing: PSU Liquid temperature: Min -40C, Max +100C Motor: 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation* Models CM10P7-1, CM30P7-1 & CM90 CE marked according to the following standards: o EN55014: 1993/Radio disturbance o ISO8846: Small Craft - Electrical devices -protection against ignition of surrounding flammable gases o ISO10133: Small Craft - Electrical systems - extra low voltage DC installations o 72/245/EEG, 95/54/EG Electromagnetic compatibility Pressure & Capacity Data (based on water at 20C/68F) *5000 hr service life rated

N/A (Not Applicable)

o Flow Rate Description: 15 LPM (4 US GPM)
o Continuously Rated: Yes
o Hose Size: 16mm / 5/8"
o Inlet Outlet: For 16mm (5/8") ID Hose
o Brand: Johnson
o Series: CM10P7
o Model: 10-24501-04
o Voltage Description: 24V DC
o Amps Description: 0.6A
o Fuse: 0.8A
o Approvals: CE Marked to EN55014, ISO8846, ISO10133 and 72/245/EEG, 95/54EG
o Height Description: 85mm
o Width: 68mm
o Length: 177mm
o Temperature Range: Min -40C, Max +100C
