Hafele Flush Cranked Hinge in Zinc Plated Steel for 15-19mm Doors

Flush cranked hinge in glossy zinc plated steel, suitable for 15mm - 19mm cupboard and cabinet doors. The flush hinge is ideal for caravans, campervans and motorhomes. It features a fixed pin and non-mortice surface mounting with 4 fixing holes, as well as a rounded flange.

Please note: 4x 2.5mm diameter countersunk screws will be required to mount this hinge.

N/A (Not Applicable)

o Hinge: Flush Hinge

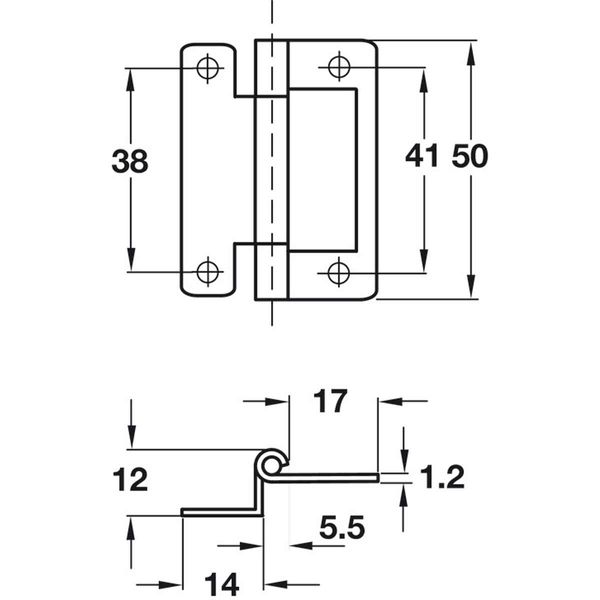

o Dimensions: Distance between mounting hole centres: 38mm & 41mm
o Screw Holes: 4
o Screw Size: 2.5mm Diameter - Order Separately
o Brand: Hafele
o Height Description: 50mm
o Width: 36.5mm
o Thickness: Flange: 1.2mm
o Material: Zinc Plated Steel
o Primary Construction: Zinc Plated
o Diameter Description: Knuckle: 5.5mm
