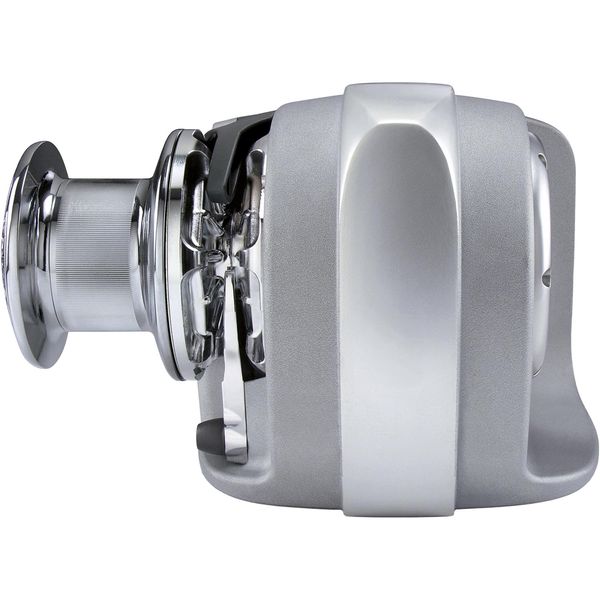

Quick HC3 712DB Windlass Gypsy & Drum R (700W / 12V / 10mm)

The Quick HC3 Hector 712DB horizontal windlass is suitable for boats from 7m to 10m (23 to 33ft). The on-deck windlass is easy to install with an Aluminium base, housed in a Composite jacket, making it well protected and durable. Supplied with pressure lever control and a built-in manual emergency recovery system, anchoring has never been easier. The Quick windlass features a 10mm (3/8") gypsy on the right side, which is suitable for 10mm ISO and 3/8" G4 chain, as well as 5/8" (15.8mm) rope. The Hector 712DB also features a drum connected to the gypsy on the right side.

Quick hc3 hector manual

Quick hector drilling template

o Horizontal on-deck windlass
o Jacket in composite material
o With drum
o Rope and chain on a single gypsy
o Integrated sensor and magnet for chain counter
o Supplied with pressure lever
o Integrated solenoids unit
o Emergency manual lift system
o Manual Free-Fall system
o IP66 watertight motor

o Primary Construction: Composite
o Suitable For: Chain and Rope
o Boat Size: 7 to 10 metres in length
o Gypsy Size: 10mm
o Brand: Quick
o Series: Hector HC3
o Model: 712DB
o Voltage Description: 12V DC
o Wattage: 700W
o Working Load: 100kg (220.5 lb), Maximum: 300kg (661.4 lb)
o Maximum Pull Load: 1100kg (2425 lb)
o Maximum Chain Speed: 27.4 m/min (89.9 ft/min), At Working Load: 14.0 m/min (45.9 ft/min)
o Amps Description: 90A at 100kg
o Fuse: 60A Protection Circuit Breaker
o Contents: Windlass, Handle, Bolts and Screws, Drill Template, User Manual
o Approvals: CE
o Height Description: 213mm (8-3/8")
o Width: 318mm (12-17/32")
o Depth: 373mm (14-11/16")
o Diameter Description: Mounting Holes: 11mm (7/16")
o Thickness: Deck: 20mm - 60mm (25/32" - 2-11/32")
o Size: Motor Cable: 25mm2 (AWG3)
