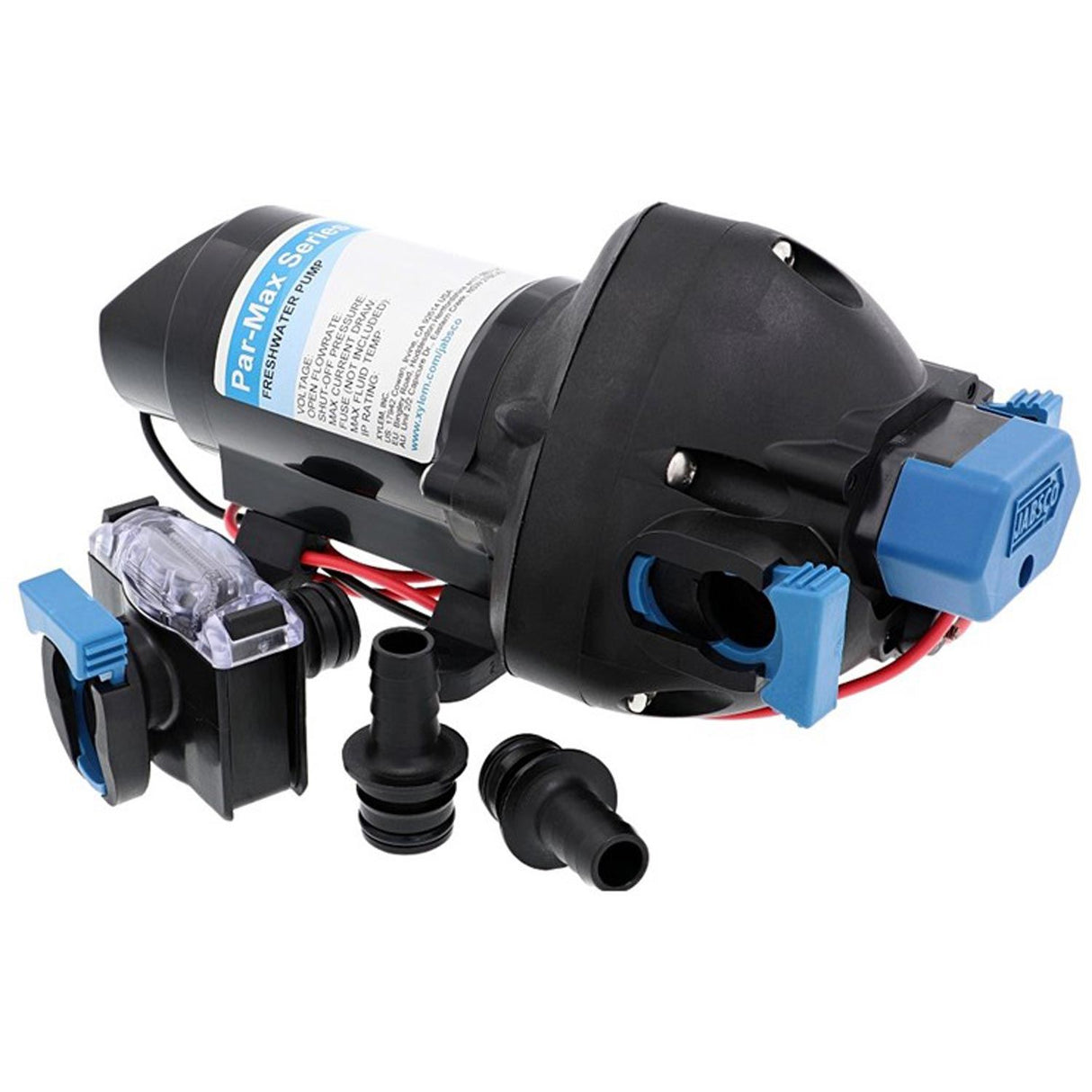

Jabsco Par-Max 3 Freshwater Pressure Pump with Quick Connect Fittings, 12V, 11LPM

Jabsco 31395-2512 water pressure pump system is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The Jabsco water pressure system also comes complete with quick connect fittings - for ease of pump installation - as well as an inline strainer.

The Jabsco Par-Max 3 pump replaces Jabsco 31395-0292 Par-Max 2.9 pressure pumps.

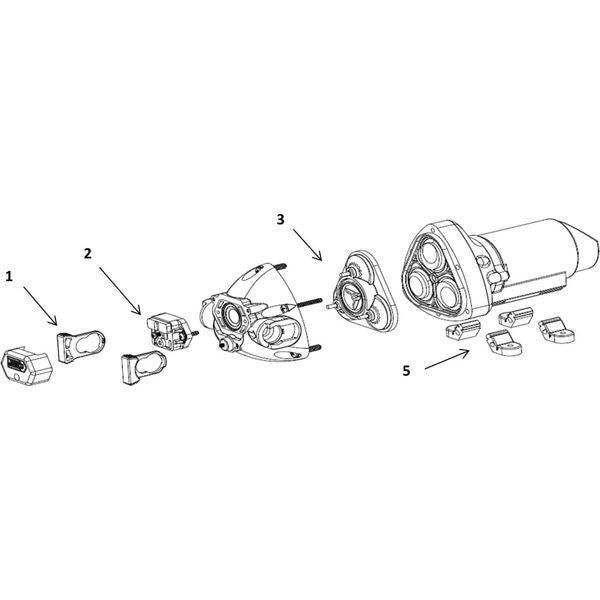

Jabsco Pump 31395-2512-3A Spare Parts:

Part ID | Spare Part | Part Number

1 | Port Clips | 30647‐1000

2 | Switch Kit | 18916‐1025

3 | Check Valve Assembly| 20407034

4 | Diaphragm/Drive Assembly | Not offered

5 | Baseplate/Mounting Feet | 20717001A

o Enclosed motor
o Integrated Pressure Switch
o Vibration & Noise reducing mounting
o Self‐priming
o Runs Dry without Damage

o Hose Size: 13mm / 1/2"
o Replaces: Jabsco 31395-0292 Par Max 2.9, WP-001 & 509732
o Self Primes up to: 1.8 Metres (5.9 Feet)
o Inlet Outlet: Fittings for 13mm (1/2") ID hose
o Brand: Jabsco
o Voltage Description: 12V DC
o Model: 31395-2512-3A
o Height Description: 110mm (4.3")
o Width: 152mm (6")
o Length: 230mm (9")
o Fuse: 10A
o Flow Rate Description: 11 LPM (2.9 US GPM)
o Approvals: Complies with ISO8846 Marine (Ignition protection)
o Series: Par Max 3
o Amps Description: 5.2A
o Supplied With: Quick Connect Fittings & Inline Strainer
o Cut In Pressure: 15 PSI / 1 Bar
o Cut Out Pressure Description: 25 PSI / 1.7 Bar
o Warranty: 3 Years
