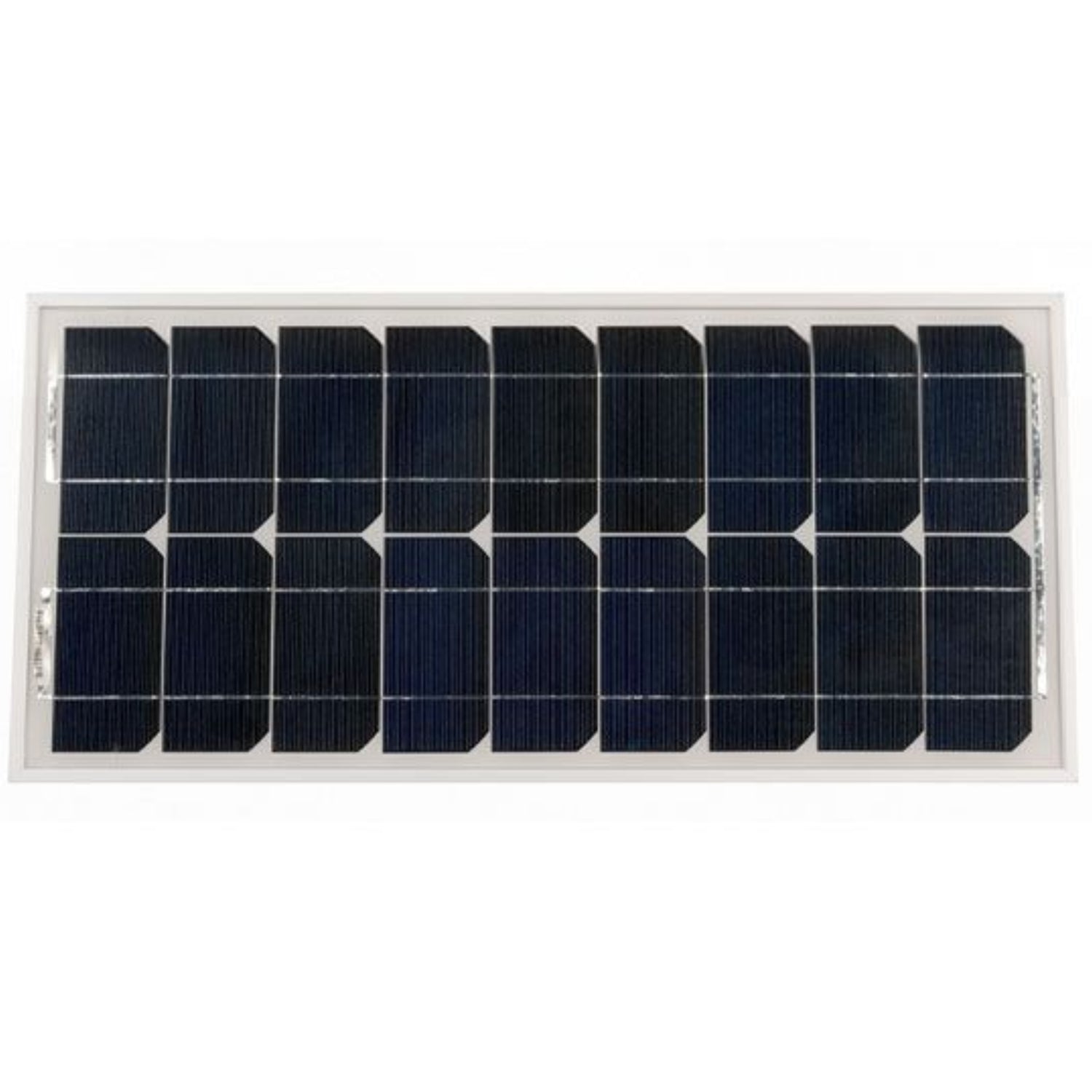

Victron BlueSolar Monocrystalline 20W-12V Mono Solar Panel - 44 x 35 x 2.5cm

Low voltage-temperature coefficient enhances high-temperature operation. Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance. 5-Year limited warranty on materials and workmanship.

Sealed, waterproof, multi-functional junction box gives high level of safety. High performance bypass diodes minimize the power drop caused by shade. Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.

A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems. Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance. High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

Datasheet

N/A (Not Applicable)

o Power: 20W
o Size: 440 x 350 x 25mm
o Weight: 1.9Kg
o Vmp (VDC): 18.5
o Imp (A): 1.09
o Voc (V): 22.6
o Isc (A): 1.19
