Furuno M1815 8.4'' Colour Radar System With 15m Cable

Écrire une critique
| poser une question

IMD03492007 2 Year Warranty

£2,912.23

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description

  • Peak Output Power: 4 kW
  • Type: 488 mm (19\") radome
  • Frequency: 9410 MHz ± 30 MHz
  • Beam Width (Horizontal): 5.2°
  • Beam Width (Vertical): 25°
  • Range Scales: 0.0625 - 36 NM
  • Minimum Range: 25 m
  • Antenna Rotation Speed: 24 rpm
  • Weight: 6.5 kg 14.3 lb
  • Display Unit: 8.4\" color LCD

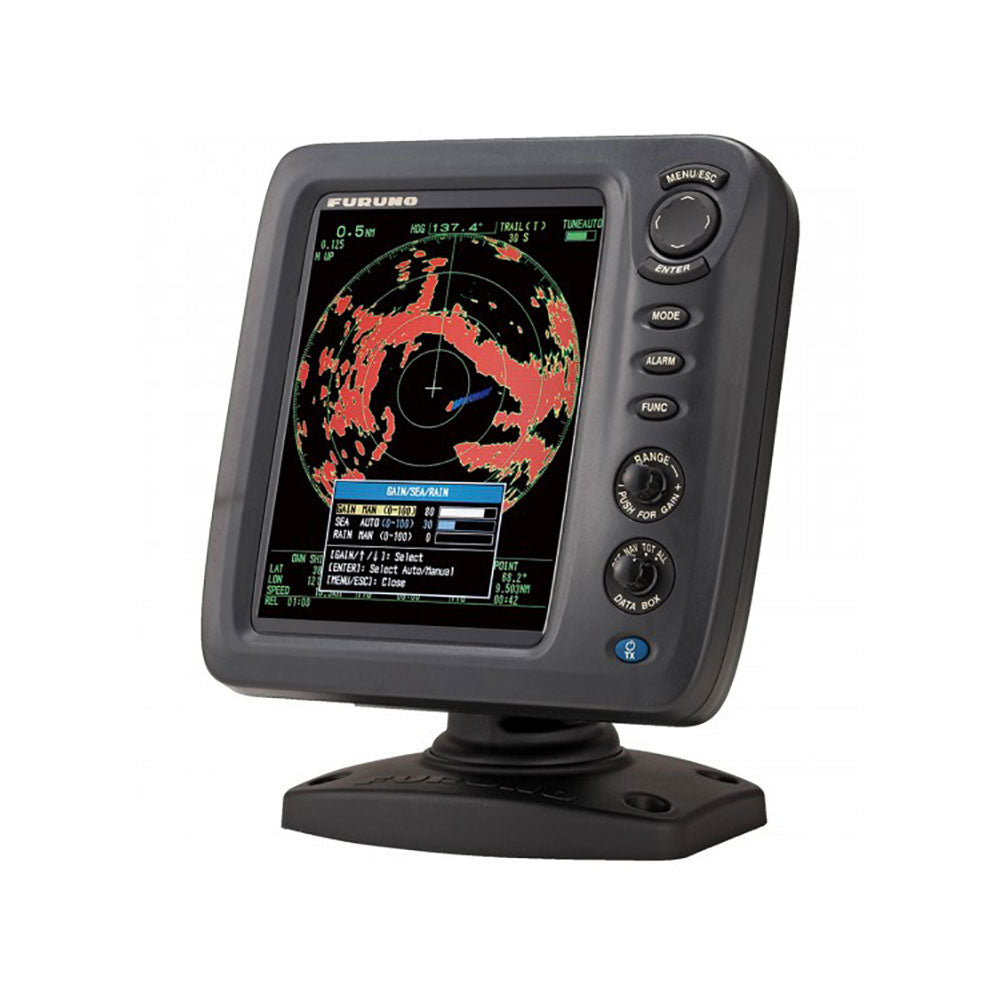

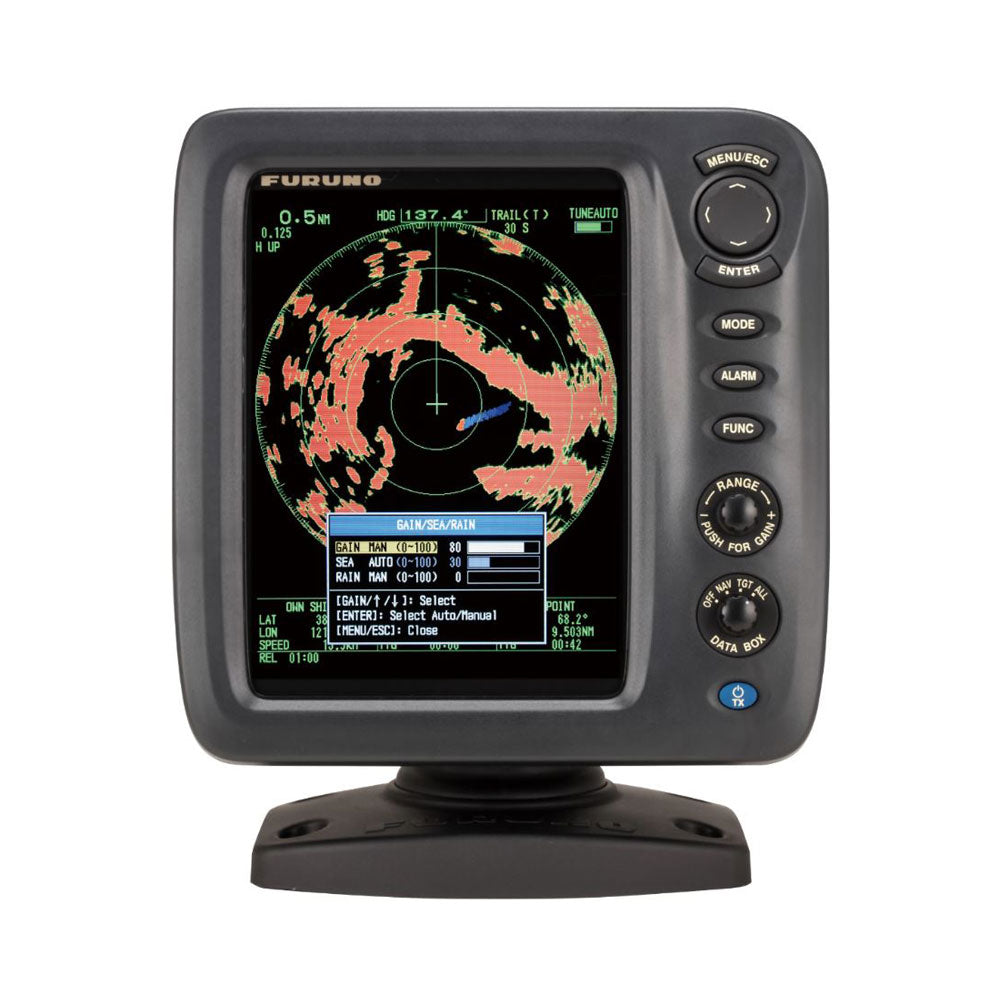

The M1815 is an 8.4” color LCD radar designed for pleasure craft and small fishing boats. The Radar has easy-to-use intuitive controls while maintaining the high performance you expect from FURUNO products. Even in poor visibility such as fog or storms the radar produces detailed pictures of coastline and targets at short ranges by utilizing narrow pulses and dual IF bandwidths. The waterproof display makes it ideal for exposed installations such as fly bridges.

The M1815 utilizes our Fast Target Tracking™ True Trail Mode and True View Mode technologies to ensure optimum performance in detecting and ranging targets of interest.

Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter

To display targets clearly and accurately the gain must adjusted. The MODEL1815 can do this automatically for you. By automatically adjusting the gain the Radar eliminates unnecessary echoes and display a clear image.

Fast Target Tracking™ (TT) function

Fast Target TrackingTM (TT) function manually or automatically acquires and tracks 10 targets. After selecting a target it only takes a few seconds for a speed and course vector to be displaed. With accurate tracking information estimation of other vessel\'s course and speed is made easier.

AIS display

When connecting a FURUNO FA-30/50 AIS unit up to 100 AIS targets can be tracked and displayed on the Radar screen. The AIS improves safety during travel by sharing the status and position of your vessel with other AIS-equipped vessels nearby. You can easily read detailed information about other AIS equipped vessels nearby such as speed and heading.

True Trail mode

When using the True Trail mode moving objects will show up on the main screen with a gradational trail. These trails make it possible to see the movement of nearby vessels in the blink of an eye. (Heading data and positional data are required.)

Multi-station configuration

The multi-station configuration allows up to three RDP-157 (MODEL1815 displays) to be connected to a single antenna via an ethernet hub without the need to install individual antenna units on each display. This configuration provides a cost saving and dynamic setup for situations requiring the ability to monitor the Radar from different locations on the ship.

"

Features

N/A (Not Applicable)

Specifications

N/A (Not Applicable)
