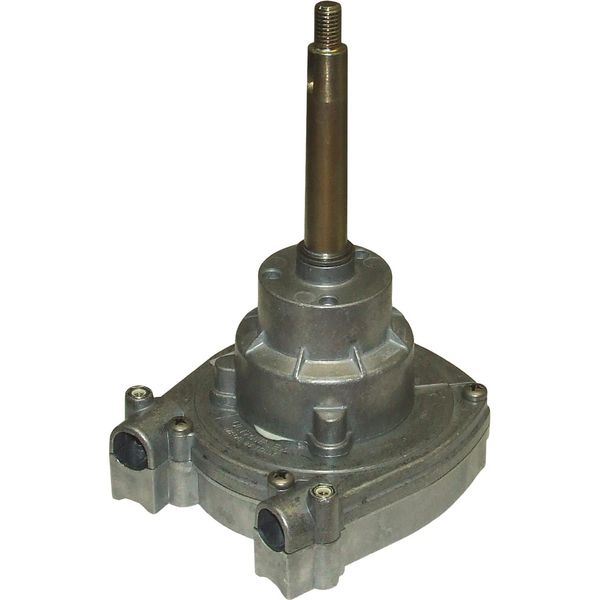

Ultraflex T73NRFC Fast Connect Boat Outboard/Inboard Non-Return Steering Helm
Écrire une critique
|
poser une question
38869M 2 Year Warranty
£142.86
£198.26
Prix unitaire /
Indisponible
Free Delivery
28% de réduction
Ultraflex T73NRFC Fast Connect Boat Outboard/Inboard Non-Return Steering Helm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
FAST FREE UK STANDARD SHIPPING*
FAST FREE UK STANDARD SHIPPING*
• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)
• Click here for more delivery information
60 DAY NO QUIBBLE RETURNS
60 DAY NO QUIBBLE RETURNS
• 60 days hassle-free returns. - exclusions apply
![](http://proteusmarinestore.com/cdn/shop/files/Screenshot_2023-07-13_at_09.21.24.png?v=1689238301&width=1000)
Description
Description
T71FC,T72FC,T73NRFC,T74NRFC Steering Systems.
Common Features:
- Planetary Gear Design.
- Particularly suitable where clearance is limited.
- All stainless steel cable output ends as per ABYC safety standards.
- Made exclusively in corrosion resistant materials.
- Optional 90° or 20° installation.
- Standard 3/4" tapered shaft.
- Maximum steering wheel diameter: 406mm (16").
- Stroke: 228mm (9").
- Minimum steering cable bend radius 200mm (7.9").
- Maximum operating load at the tiller end:3300N (340kg; 750lbs).
- Should not be used on boats equipped with engines that exceed the max horsepower rating of the boat.
- For boats faster than 50mph the twin cable steering system is recommended.
- Exceeds ABYC P17 & EN 28848 safety standards.
T73NRFC
- Planetary Gear Design
- Patented non reversible mechanism
- Compact rotary helm unit
- The non-reversible steering helm eliminates the continuous load
- on the operator caused by the propeller torque making steering easy and safe.
- Ideal for outboards and surfacing propellers.
