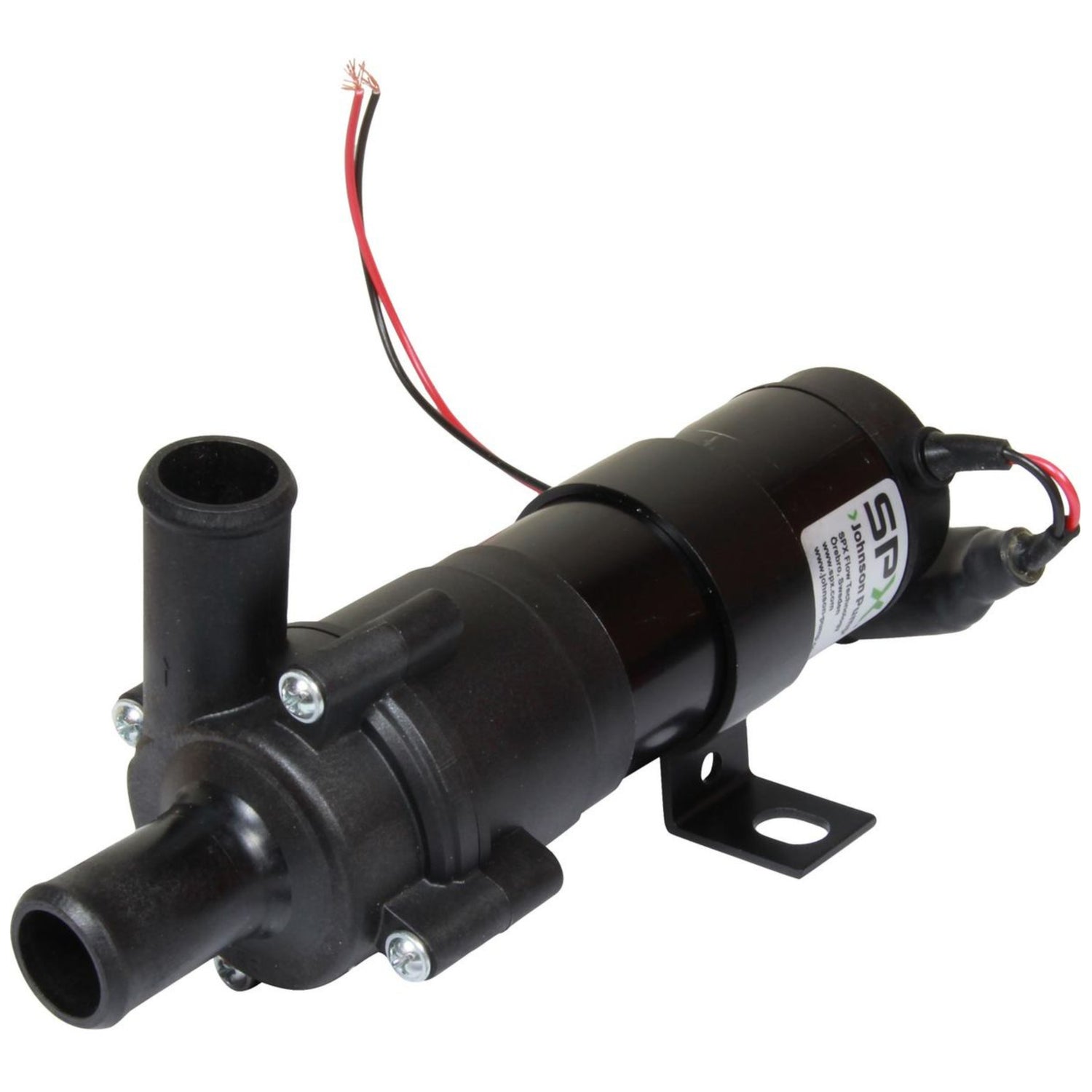

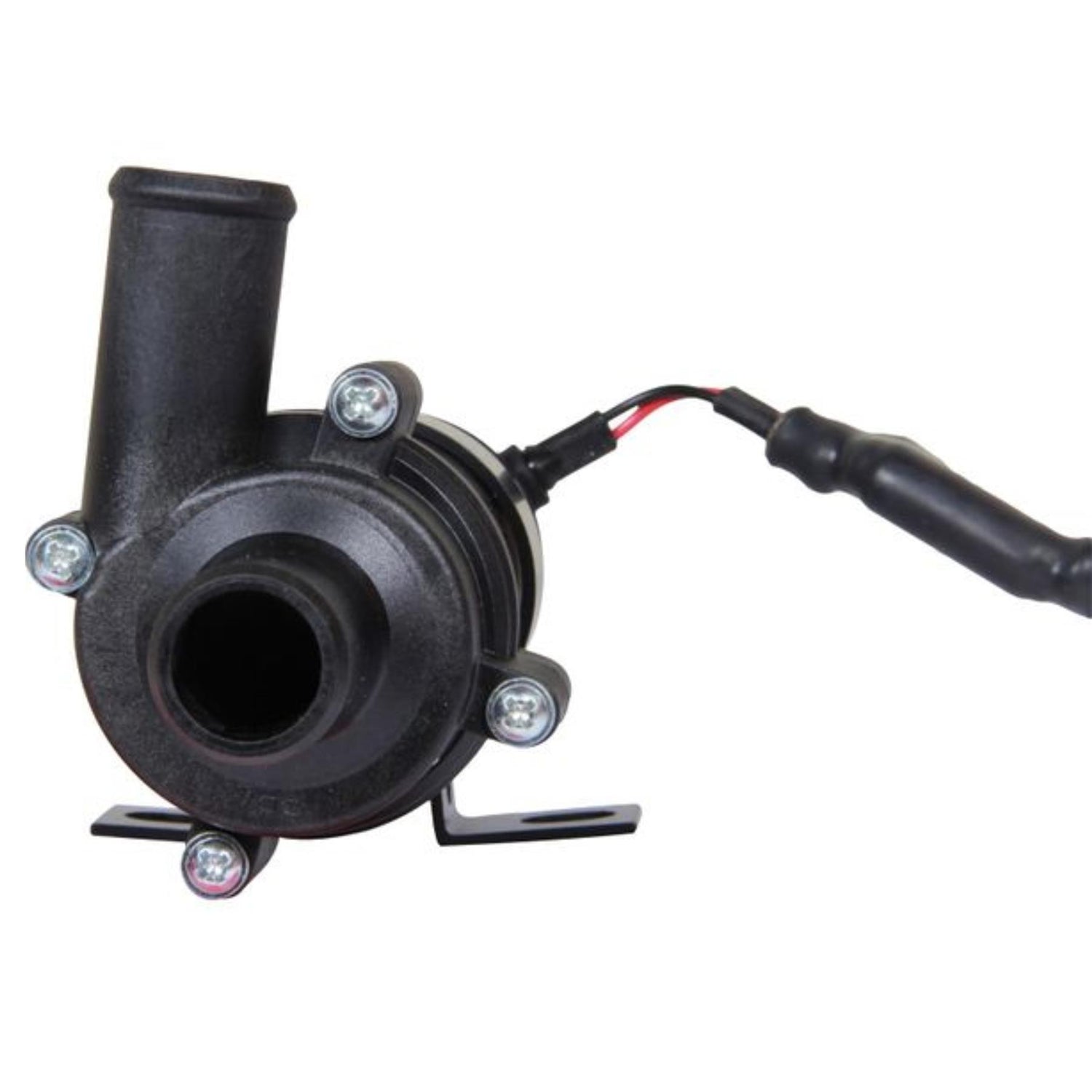

Johnson Circulation Pump CM30P7-1 with 20mm Ports 24V

CM Series Circulation Pumps are a line of compact centrifugal pumps which combine high flow rates with very low electric current consumption, making them ideally suited for circulating fresh water in live fish tanks, heating and cooling systems. But not saltwater.

Technical Specifications:

• Pump Body: PPA
• Impeller: PPA
• Shaft: Stainless Steel
• Liquid: Water/glycol mixture; max 60% glycol, fresh water
• Liquid temperature: Min -40°C, Max +100°C
• System Pressure: 2.5 Bar max
• Port Size: Ø 16mm (5/8") hose
• Dry Running: Max 30 mins
• Input Power: Max 27W
• Mounting: Separate universal bracket for flat services
• Motor: 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation
• Dimensions (LxWxH): 177mm x 68mm x 85mm (6.97" x 2.68" x 3.35")
• Weight: 0.6kg (1.3lbs) with bracket

N/A (Not Applicable)

o Flow Rate Description: 22.5 LPM (5.9 US GPM)
o Continuously Rated: Yes
o Hose Size: 20mm / 3/4"
o Inlet Outlet: For 20mm (3/4") ID Hose
o Brand: Johnson
o Series: CM30P7
o Model: 10-24504-04
o Voltage Description: 24V DC
o Amps Description: 1.1A
o Fuse: 1.6A
o Height Description: 85mm
o Width: 68mm
o Length: 177mm
o Temperature Range: Min -40C, Max +100C
