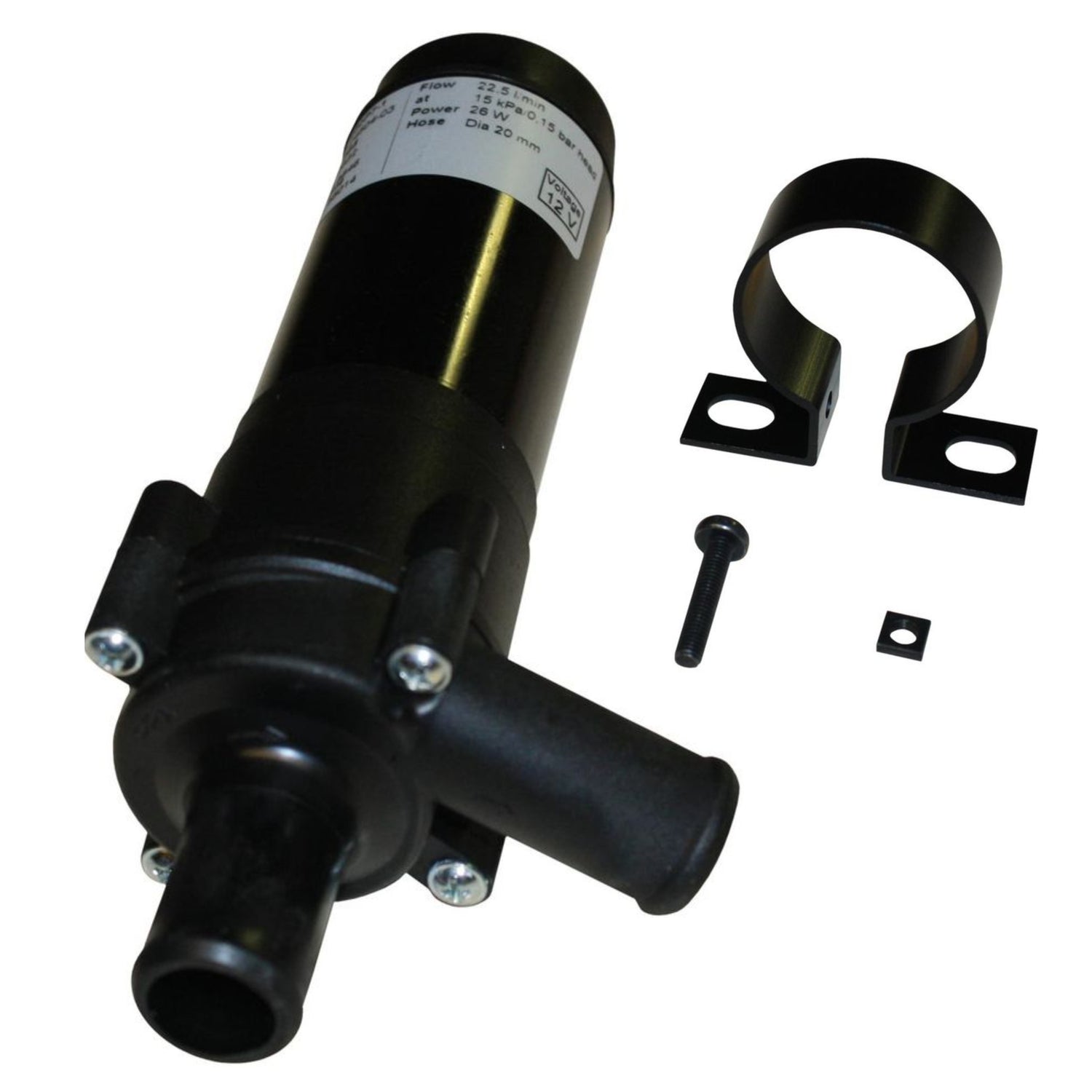

Johnson 12V CM30P7-1 Circulation Pump 22 LPM with 20mm Ports For Marine Boats

CM Series Circulation Pumps are a line of compact centrifugal pumps which combine high flow rates with very low electric current consumption, making them ideally suited for circulating fresh water in live fish tanks, heating and cooling systems. But not saltwater.

Technical Specifications:

o Pump Body: PPA

o Impeller: PPA

o Shaft: Stainless Steel

o Liquid: Water/glycol mixture; max 60% glycol, fresh water

o Liquid temperature: Min -40°C, Max +100°C

o System Pressure: 2.5 Bar max

o Port Size: Ø 16mm (5/8") hose

o Dry Running: Max 30 mins

o Input Power: Max 27W

o Mounting: Separate universal bracket for flat services

o Motor: 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation

o Dimensions (LxWxH): 177mm x 68mm x 85mm (6.97" x 2.68" x 3.35")

o Weight: 0.6kg (1.3lbs) with bracket

N/A (Not Applicable)

o Flow Rate Description: 22.5 LPM (5.9 US GPM) at 0.1 bar
o Continuously Rated: Yes
o Hose Size: 20mm / 3/4"
o Inlet Outlet: For 20mm (3/4") ID Hose
o Brand: Johnson
o Series: CM30P7
o Model: 10-24504-03
o Voltage Description: 12V DC
o Amps Description: 2.2A Maximum
o Fuse: 3A
o Approvals: CE Marked to EN55014, ISO8846, ISO10133 and 72/245/EEG, 95/54EG
o Height Description: 85mm
o Width: 68mm
o Length: 177mm
o Temperature Range: Min -40C, Max +100C
