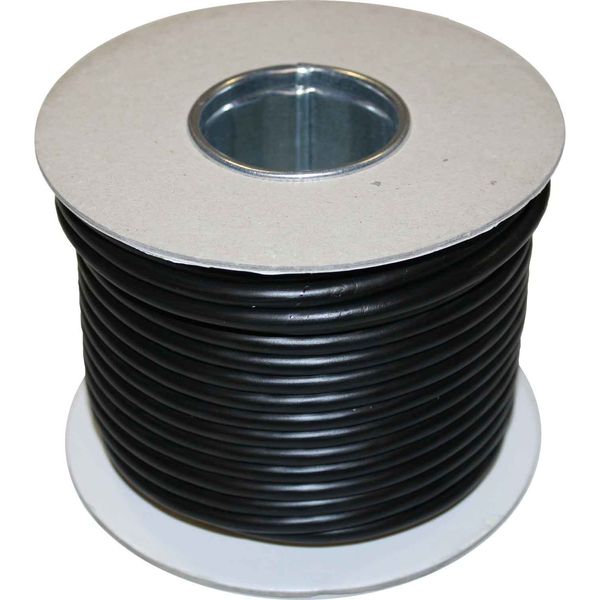

AMC 4 Core TW Cable 32/0.20 1.0mm2 100m Black

Écrire une critique
| poser une question

TW04/01.100 1 Year Warranty

£134.10 £188.22

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Description

Manufactured to ISO 6722:2006 (Class B) Plain copper conductors PVC sheathed 70C

Features

N/A (Not Applicable)

Specifications

o Maximum Load Description: 12V = 198 Watts, 24V = 396 Watts
o Style: Thin Wall Cable
o Cable Conductor: Plain Copper
o Cable Cores: 4 Core
o Unit of Sale: 100 Metres
o Cable Inner Colours: Red, Black, Green & White
o Cable Insulation: Hard Grade PVC
o Conductor Specifications: 4 x 32/0.20 mm
o Cable Conductor Cross Section Description: 1.0mm?
o Resistance Per Metre at 20degC: 0.0185 ohms
o Shape Description: Round
o Brand: AMC
o Colour: Black
o Voltage Description: Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits)
o Amps Description: Nominal Current Rating: 16.5A
o Approvals: Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005
o Temperature Range: -40C to +105C (with excursions to 120C max)
o Diameter Description: Max Outside Diameter: 5.8mm
o Country of Origin: United Kingdom
