Scanstrut

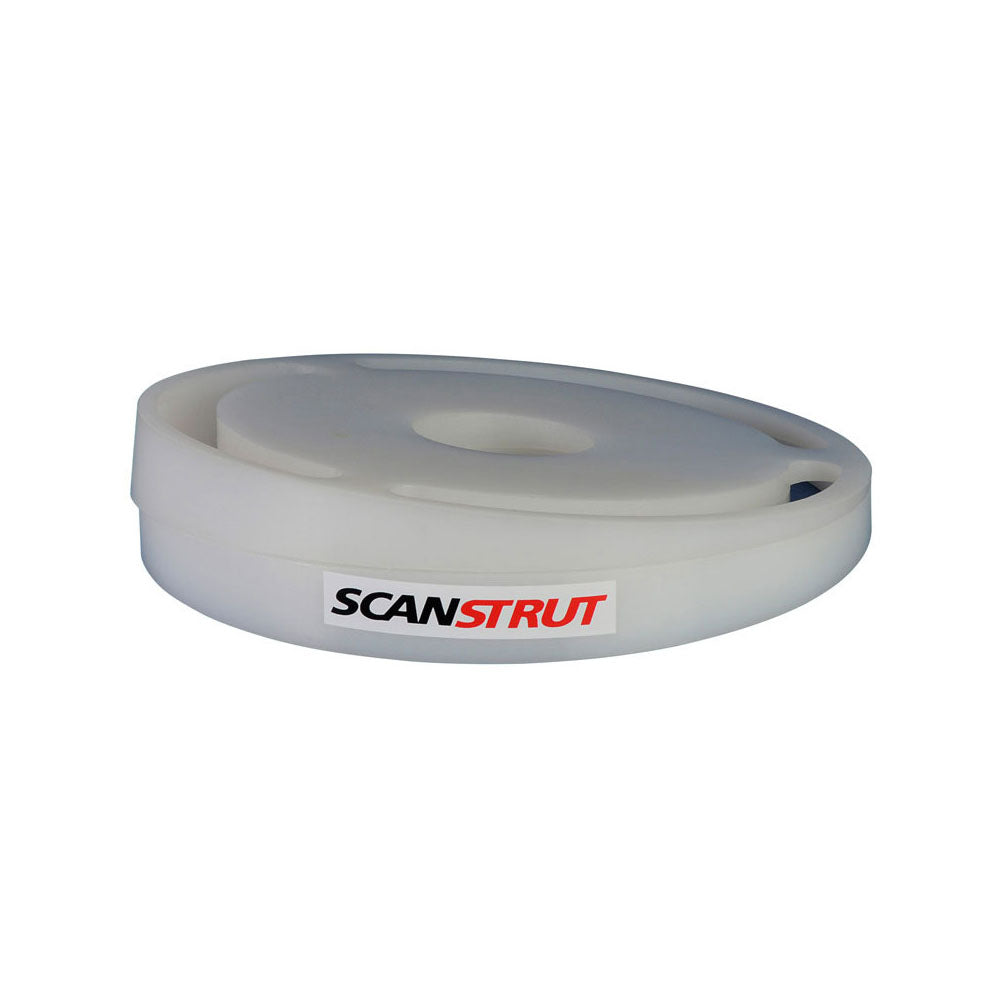

Scanstrut Adjustable Satcom Base Wedge

Escribe una reseña
| Haz una pregunta

SC50 3 Year Warranty

£257.26 £334.80

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

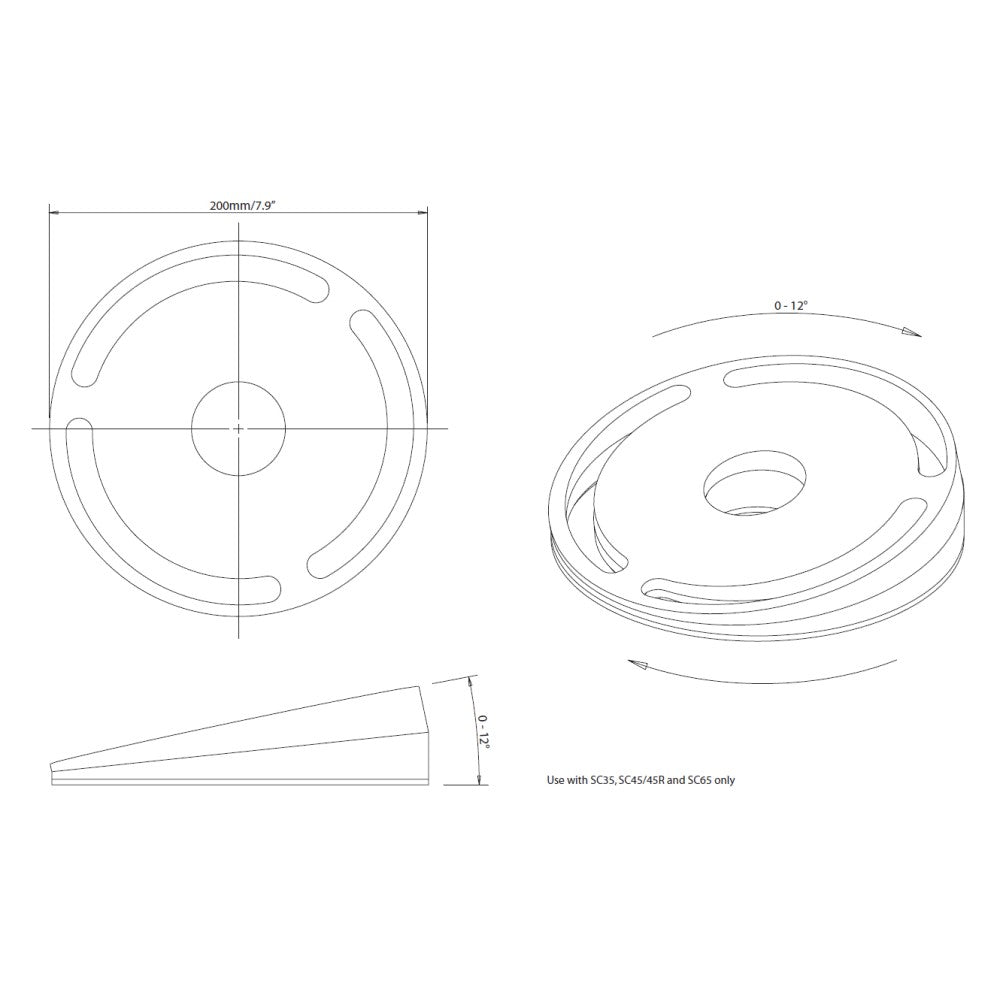

  • Marine-grade polymer in white UV stabilised
  • 200mm diameter
  • Ingenious yet simple - simply counter-rotate the angled discs until the top surface is horizontal.
  • A channel system inside the discs allows un-restricted positioning of the antenna mounting bolts
  • 4 pairs of 6° angled washers provide a level fastening surface for the antenna mounting bolts
  • Watertight base seals fitted
<a class=\"pagebuilder-button-primary\" href=\"https://www.dropbox.com/s/nkb8lfl1bltq9zq/SC50_Instructions_-_Issue_3.pdf?dl=0\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-wrench\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Installation</span> </a>

Satcom antennas require a horizontal mounting surface to function correctly. Finding this on any powerboat is often difficult. This means expensive and time-consuming interface plates have to be made.

Satcom wedges eradicate this problem by providing a level mounting on slopes from 0° to 12°. Designed to work with Scanstrut\'s Satcom mounts you can quickly and easily provide a level mounting surface on any boat.

Compatible with:-

  • 705-SC35 - Scanstrut Satcom Antenna Mount for KVH M2/3 Raymarine 37STV Intellian i3 & Seatel Coastal 14
  • 705-SC45 - Scanstrut Satcom Antenna Mount for KVH M5/G4 & SeaTel Coastal 18/24/30
  • 705-SC45R - Scanstrut Satcom Antenna Mount for Raymarine 45STV & Intellian i4
  • 705-SC65 - Scanstrut Satcom Antenna Mount
"
