Quick TB3 Tumbler 724 Vertical Capstan Winch

Escribe una reseña
| Haz una pregunta

FSTB07240000B00 3 Year Warranty

£1,396.77 £1,543.80

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

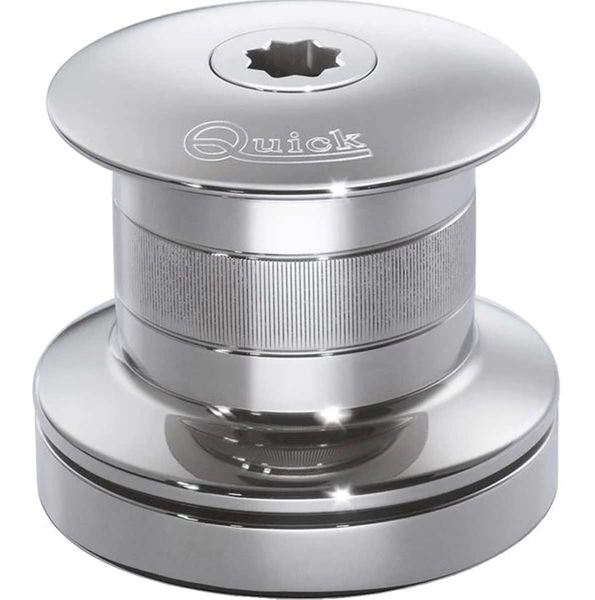

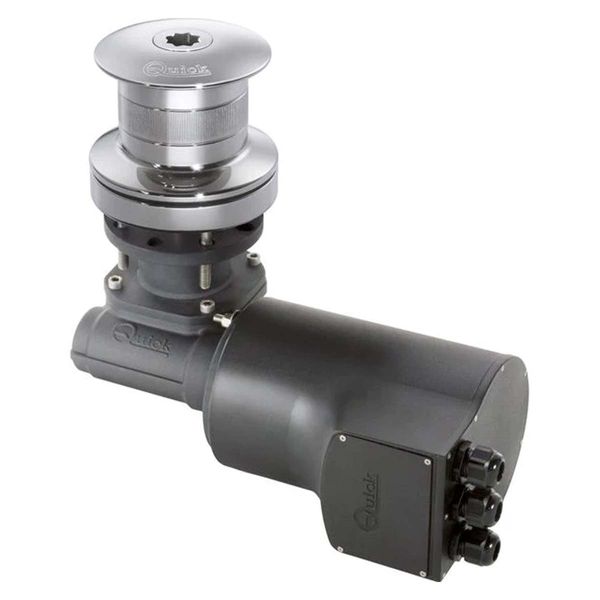

The Quick TB3 Tumbler 724 vertical capstan winch is suitable for boats from 7m to 10m (23 to 33ft). The capstan features a AISI 316 stainless steel base and drum (INOX steel) with an anodised aluminium gearbox, making it well protected and durable. Supplied with a nylon handle control, anchoring has never been easier. The Quick capstan winch features a 130mm (5 - 1/8") diameter drum which is suitable for rope.

Features

o Warping Winch
o AISI Stainless steel 316 base and drum
o IP67 Motor watertight
o Anodised aluminium gearbox

Specifications

o Primary Construction: Stainless Steel
o Brand: Quick
o Model: Quick TB3 Tumbler 724
o Colour: Black and Silver
o Voltage Description: 24V DC
o Wattage: 700W
o Working Load: 100kg (220lb), Maximum: 300kg (661lb)
o Maximum Pull Load: 850kg (1874 lb)
o Maximum Chain Speed: 22m/min (72ft/min), At Working Load: 14m/min (64ft/min)
o Amps Description: 55A at 100kg
o Fuse: 40A Protection Circuit Breaker
o Contents: Capstan, Handle, Contactor Unit, Bolts and Screws, Drill Template, User Manual
o Height Description: Overall: 268.4mm (10 - 37/64"), Above Deck: 113mm (4 - 29/64"), Below Deck: 155.4mm (6 - 1/8")
o Width: 332.5mm (13 - 3/32")
o Depth: 206.5mm (8 - 1/8")
o Diameter Description: Drum: 130mm (5 - 1/8"), Cut Out: 65mm (2 - 35/64"), Mounting Holes: 4 x 9mm (23/64")
o Thickness: 25mm - 50mm (31/32" - 1-31/32")
o Size: Motor Cable: 10mm2 (AWG7)
o Mounting Description: Vertical Mount
