Quick BL2 Free Fall Windlass (600W / 12V / 8mm / with Recyclable Gearbox)

Escribe una reseña
| Haz una pregunta

FSBL20612FY8B00 3 Year Warranty

£1,480.22 £1,668.35

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

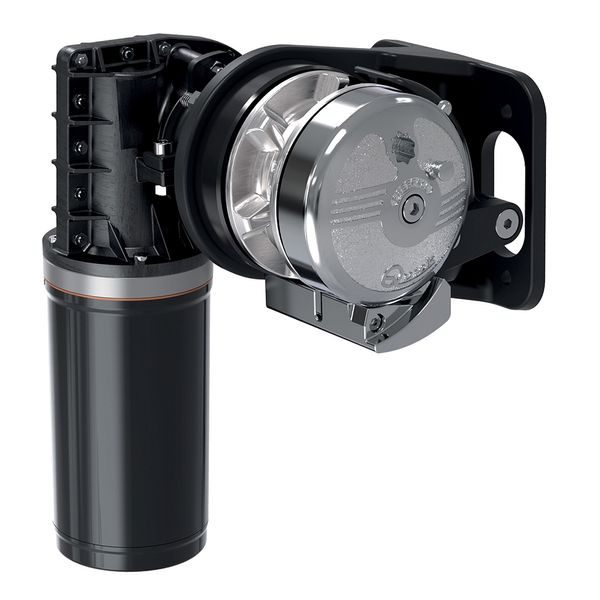

The Quick Balder BL2 windlass with horizontal axis is designed for installation in the anchor locker compartment. This windlass is fitted with a 100% recyclable technopolymer gearbox.

This BL2 model has a 600W motor at 12 volts, providing a maximum working load of 200kg (441 lbs) and a maximum chain speed of 28.9 meters per minute (94.8 ft per minute).

To ease the positioning, the motor can rotate up to 180° at 45° increments and thanks to a specific bracket, the windlass can be installed on the bulkhead or below deck.

This windlass features an 8mm gypsy which is suitable for 8mm DIN 766, 8mm ISO and 1/2" (12.7mm) rope (this value refers to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick®” system).

Product contents:

- Windlass

- Reversing contactor unit T6411-12

- Nylon handle

- Mounting bracket

- Installation and user manual

- Warranty

- Drill template

Features

N/A (Not Applicable)

Specifications

o Primary Construction: Stainless Steel
o Suitable For: Chain and Rope
o Boat Size: 5 to 8 metres in length
o Gypsy Size: 8mm
o Brand: Quick
o Series: Balder BL2
o Model: BL2 FF 6
o Voltage Description: 12V DC
o Wattage: 600W
o Working Load: Working Load: 65kg (143.3 lb) / Max. Working Load: 200kg (440.9 lb)
o Maximum Pull Load: 660kg (1455 lb)
o Maximum Chain Speed: 28.9m/min (94.8 ft/min)
o Amps Description: 80A at 65kg
o Fuse: 60A Protection Circuit Breaker
o Contents: Windlass, Reversing contactor unit T6411-12, Nylon handle, Bolts and screw (assembly, top/gearbox), Installation and User manual, Warranty, Drill template
o Approvals: CE
o Weight: 12.3kg (27 lb) without drum
o Diameter Description: Mounting Holes: 9.50mm (3/8")
o Size: Motor cable: 16mm? (AWG5) up to a total cable length of 20 metres
