Lenco 16" Hatch Lift 12V 33" to 49" (Hl-1600)
20776-001 2 Year Warranty
Sign up to be the first to know when it's here
Lenco 16" Hatch Lift 12V 33" to 49" (Hl-1600) está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
FAST FREE UK STANDARD SHIPPING*
FAST FREE UK STANDARD SHIPPING*
• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)
• Click here for more delivery information
60 DAY NO QUIBBLE RETURNS
60 DAY NO QUIBBLE RETURNS
• 60 days hassle-free returns. - exclusions apply
Descripción
Descripción

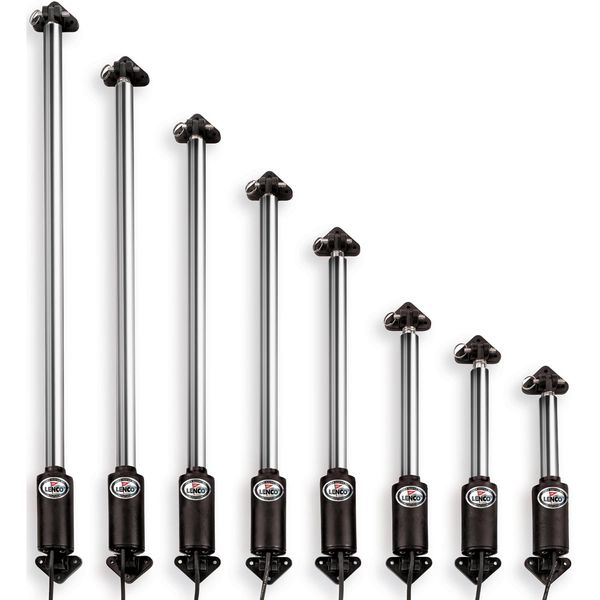

o Clear anodized aluminium tubing
o Sizes 4" (10.1cm) through 30" (76.2cm) stroke
o Available in 12 & 24 Volt
o Complete with 2' (61 cm) lead and Deutsch plug (see below for actuator extension harnesses)
o Clutch-less ball screw design will not drift, never binds and runs in sync on dual lift applications
o Inline motor design delivers over 500lbs. (226.79kg) of force
o Water resistant and made entirely of non-corrosive materials
o Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors
o High impact, corrosion proof mounting brackets with stainless steel pull pins
o Powdered metal gears for strength and precision
o Stainless steel ram locks in any position
o CE-certified, ignition protected and ABYC compliant
o ATTENTION 20A circuit breaker & 20A rated switch required.
| Approx LOA Retracted | Approx Stroke | Approx LOA Extended | Part No 12V | Part No 24V |
| 15" (38.1cm) | 4" (10.1cm) | 19" (48.3cm) | 4-46709 | 4-46710 |
| 20" (50.8cm) | 6" (15.2cm) | 26" (66.0cm) | 4-46711 | 4-46712 |
| 20" (50.8cm) | 8" (20.3cm) | 28" (71.1cm) | 4-46713 | 4-46714 |
| 24" (60.9cm) | 8" (20.3cm) | 32" (81.2cm) | 4-46715 | 4-46716 |
| 24" (60.9cm) | 12" (30.5cm) | 36" (91.4cm) | 4-46717 | 4-46718 |
| 29" (73.7cm) | 12" (30.5cm) | 41" (104cm) | 4-46719 | 4-46720 |
| 29" (73.7cm) | 16" (40.6cm) | 45" (114cm) | 4-46721 | 4-46722 |
| 33" (83.8cm) | 16" (40.6cm) | 49" (124cm) | 4-46723 | 4-46724 |
| 33" (83.8cm) | 20" (50.8cm) | 53" (134cm) | 4-46725 | 4-46726 |
| 37" (93.9cm) | 20" (50.8cm) | 57" (144cm) | 4-46727 | 4-46728 |
| 37" (93.9cm) | 24" (60.9cm) | 61" (154cm) | 4-46729 | 4-46730 |
| 41" (104cm) | 24" (60.9cm) | 65" (165cm) | 4-46731 | 4-46732 |
| 47" (119cm) | 26" (66.0cm) | 73" (185cm) | 4-46733 | 4-46734 |
| 47" (119cm) | 30" (76.2cm) | 77" (195cm) | 4-46735 | 4-46736 |
