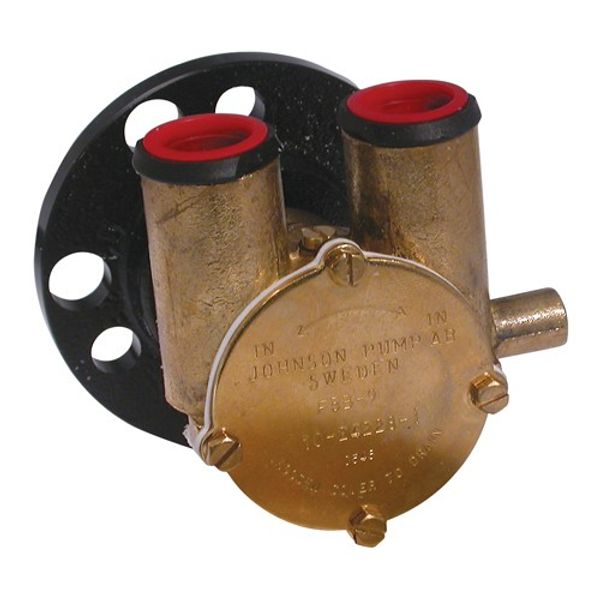

Johnson F5B-9 Pump Hi-Speed for 32mm Hose

Escribe una reseña
| Haz una pregunta

10-24228-1 3 Year Warranty

£354.60 £490.19

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descripción

Johnson 10-24228-1 pump is fitted to the following marine engines:

- Alaska Diesel M439, M445, M668, M4219, M4239, M4276, M6414, L439, L445, L668, L4219, L4239, L4276 & L6414

- CT Marine FD 80

- Flagship 350

- Indmar 200

- Marine Exhaust 4 cylinder engines

- Panther Marine 350

- Tingbrand 200 TMB, 225 TMB, 270 TMB & 310 TMB

- York Power 4 cylinder engines

The F5B-9 pump replaces Johnson 10-24076-1, Jabsco 10950-204 and 23800-0251 flexible impeller pumps.

Johnson Pump Spare Parts:

Position | Part No. | | Description | Quantity

1 | 01-24229 | Body F5B-9 | 1

3 | 01-45329 | Cam 1/1 F5B-9 | 1

4 | 01-45312-1 | End Cover F5B / F6B-9 | 1

5 | 08-1027B | Impeller | 1

6 | 01-45315 | Gasket F5B / F6B-9 | 1

7 | 04-46408-01 | Carrier Complete | 1

8 | 0.2233.001 | Lip Seal 16 x 28 x 7mm DPSM | 1

9 | 0.3431.742 | Ball Bearing 6203 2 RS1 ST | 2

10 | 0.2173.402 | O-Ring 15.3 x 2.4mm SS1586 NBR70 | 1

11 | 0.0141.502 | Brass Slotted Screw M5 x 8 DIN933 | 4

12 | 0.0279.033 | Brass Screw M5 x 8 ISO1207 | 1

13 | 01-45680 | Washer F5B / F6B / F7B | 1

15 | 01-45953 | Hose Bushing F5 / F6B-9 | 2

Features

N/A (Not Applicable)

Specifications

o Brand: Johnson
