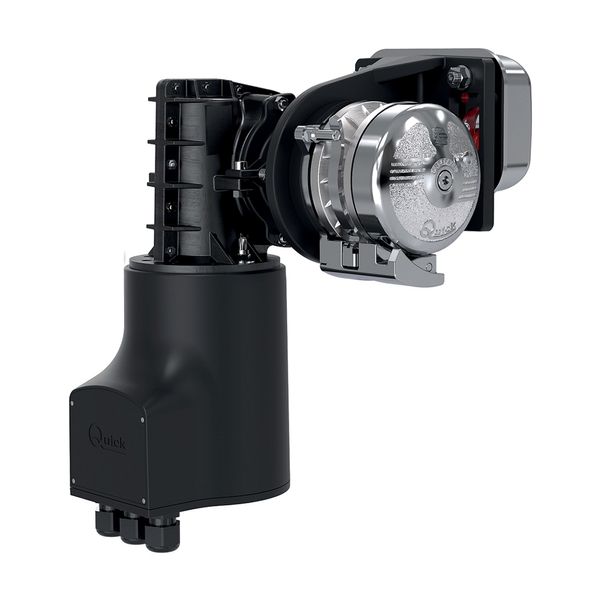

Quick BL2 Free Fall Windlass (900W / 12V / Rope Only)

The Balder BL2 rope only windlass from Quick is the ideal windlass for installation at the stern thanks to the special mounting kit. This windlass also adapts perfectly to any requirement and allows several combinations.

User Manual BL2R Automatic Stop Kit

User Manual BL2R Rope Only Windlass

o Rope only windlass
o 900W motor at 12 volts
o Maximum flexibility of installation
o AISI 316 Stainless steel and chromed bronze construction
o Automatic system of anchor-rode Free-Fall
o Supplied with rope guide devices
o Technopolymer gearbox case
o Watertight IP67 rated motor

o Material: Stainless steel / Chromed bronze
o Primary Construction: Stainless Steel
o Suitable For: Rope
o Boat Size: 9 to 12 metres in length
o Brand: Quick
o Series: Balder BL2
o Model: BL2R FF 9
o Voltage Description: 12V DC
o Wattage: 900W
o Working Load: Working Load: 100kg (220.5 lb) / Max. Working Load: 320kg (705 lb)
o Maximum Chain Speed: 22-25-28m/min (72-82 ft/min)
o Amps Description: 95A at 100kg
o Contents: Windlass, Contactor unit T6315-12, Nylon handle, Bolts and screw (assembly, top/gearbox), Installation and User manual, Warranty, Drill template
o Approvals: CE
o Weight: 16.4kg (36 lb) without drum
o Size: Motor cable: 25mm? (AWG7) up to a total cable length of 20 metres
