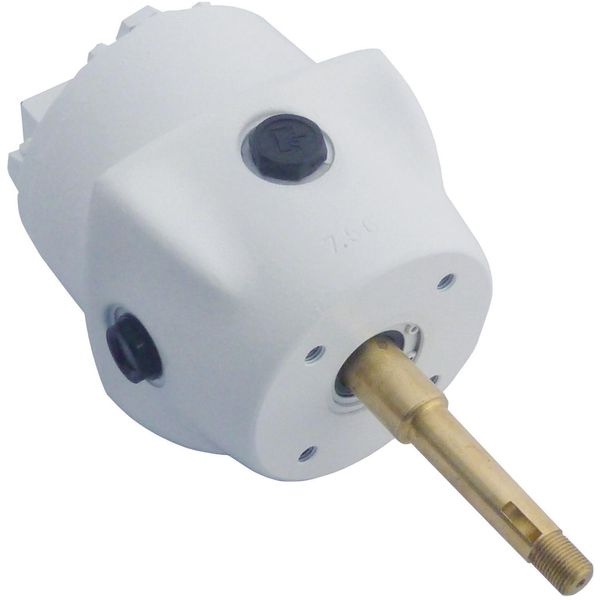

Ultraflex UP56 Hydraulic Steering Helm Pump 56cc (Rear / Intermediate)

Eine Bewertung schreiben
| Stellen Sie eine Frage
£1,240.34 £1,755.56

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Beschreibung

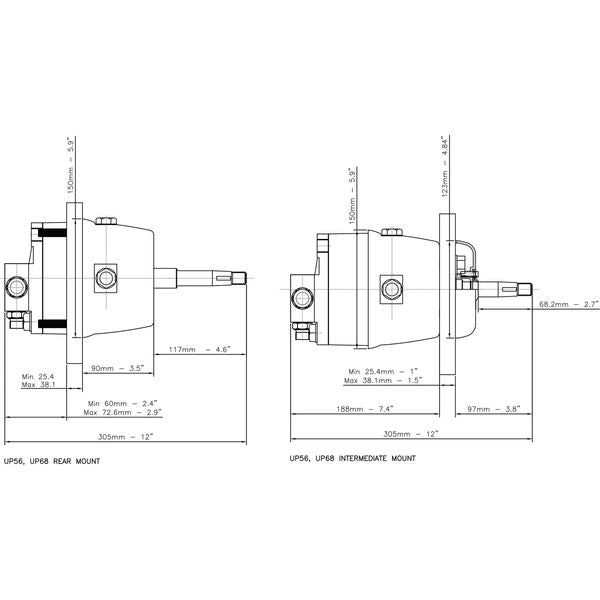

Ultraflex UP56 hydraulic steering helm pump is rated 56cc for rear mounting with KR56 kit (sold separately) or intermediate mounting with KIM56 kit (sold separately).

Ultraflex 40808D inboard helm pump features:

• Ball bearing piston race

• Built-in lock valve for positive rudder lock

• Easily accessible lock valve & shaft seal for replacement

• Brass rotor for greater durability & longer life

• Complete with fittings

• 7 Pistons

• Relief valve setting: 70 Bar (1000 PSI)

• Maximum wheel diameter: 710mm (28")

Please Note: UP56 installation requires either kit KR56 or KIM56:

• KR56 permits to installation of UP56 pumps in a rear mount position and includes a chrome plated cover ring.

• KIM56 hardware kit: permits to install the UP56 pumps in an intermediate mount position.

• KIT F56 (optional) Remote fill adapter

ultraflex up56 up68 installation manual

Features

N/A (Not Applicable)

Specifications

o Capacity Description: 56cc
o Shaft Size: 3/4" Taper
o Connections Description: 3/8" BSP Parallel
o Intergral Check Valves: Yes
o Brand: Ultraflex
o Model: UP56
o Approvals: 2013/53/EU, EN ISO 10592:2017, ABYC P21, CE, Rina
o Height Description: 330mm
o Width: 250mm
o Depth: 250mm
o Weight: 7.5 kg (16.5 lbs)
o Country of Origin: Italy

Ultraflex UP56 Hydraulic Steering Helm Pump 56cc (Rear / Intermediate) - PROTEUS MARINE STORE
Ultraflex

Ultraflex UP56 Hydraulic Steering Helm Pump 56cc (Rear / Intermediate)

£1,240.34 £1,755.56

Ultraflex UP56 hydraulic steering helm pump is rated 56cc for rear mounting with KR56 kit (sold separately) or intermediate mounting with KIM56 kit (sold separately).

Ultraflex 40808D inboard helm pump features:

• Ball bearing piston race

• Built-in lock valve for positive rudder lock

• Easily accessible lock valve & shaft seal for replacement

• Brass rotor for greater durability & longer life

• Complete with fittings

• 7 Pistons

• Relief valve setting: 70 Bar (1000 PSI)

• Maximum wheel diameter: 710mm (28")

Please Note: UP56 installation requires either kit KR56 or KIM56:

• KR56 permits to installation of UP56 pumps in a rear mount position and includes a chrome plated cover ring.

• KIM56 hardware kit: permits to install the UP56 pumps in an intermediate mount position.

• KIT F56 (optional) Remote fill adapter

ultraflex up56 up68 installation manual
