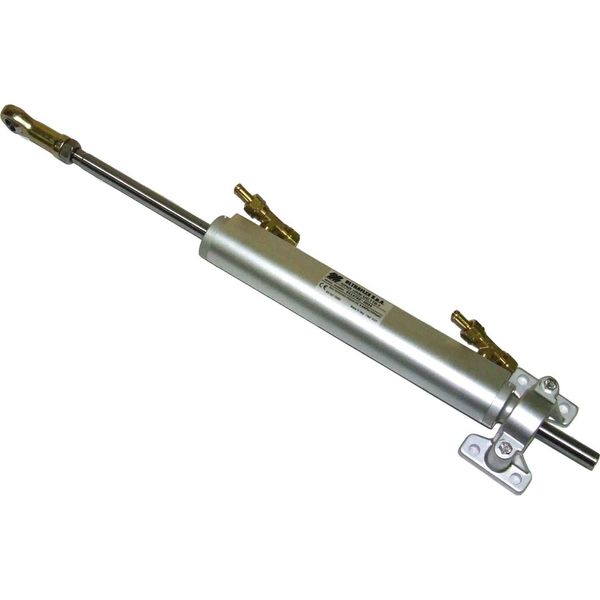

Ultraflex UC168-I Inboard Hydraulic Cylinder 168cc

Ultraflex UC168-I inboard motor steering cylinder for hydraulic steering systems. This steering ram is made from aluminium and is suitable for use in single station and dual station installations. The Ultraflex hydraulic steering ram is connected to the helm via nylon tubes.

N/A (Not Applicable)

o Capacity Description: 168cc
o Material: Aluminium
o Output: 673kg (1483lbs)
o Fitting: Tube|Hose Connector
o Connections Description: 3/8" OD Pipe
o Stroke: 178mm (7")
o Torque: 87kgm (7565lbs.in)
o Brand: Ultraflex
o Model: UC168-I
o Diameter Description: Inner: 40mm (1.57")
