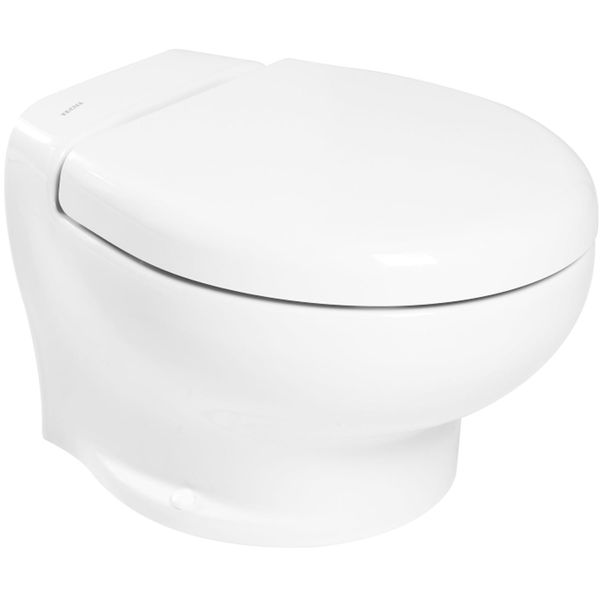

Tecma Nano Toilet Compact Bowl with Premium Panel (12V)

The Tecma Nano toilet comes from the experts in macerating toilets, utilising Turbine Technology to produce a powerful, clog-resistant flush. The Nano combines a high efficiency marine toilet with the smallest design possible, to offer the same comfort of bigger toilets. The 12V Tecma toilet meets requirements for vessels below 50 foot (45 metres). Thetford Marine designed the Nano toilet to be extremely elegant and very flexible to install, thanks to its compact size.

Uses 2 check valves and this combined with a water trap ensures there are no odour issues

Incredibly quiet operation

Can use both raw water and pressure water flush

Leaves a clean, dry bowl after every powerful flush

User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high end flush and tank control features

The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, and limiting the water and electrical consumption to minimal levels. The installation, plumbing and wiring is easy and fast, with virtually no maintenance.

Tecma Nano marine toilets can be found on board of: Chaparral Boats, Monterey and Canados.

Specifications:

Weight: 17.6kg (38.8lb)

Outlet Pump: MAC 4 12V

Inlet Device: Solenoid (optional inlet pump)

Control Panel: Premium

Tecma nano installation user manual

o Italian Ceramic
o Nano = 17.6 kg (38.8 lbs)
o Wide range of control panels
o Silent flush
o Low consumption
o 0.5 - 2 L per flush (0.1 - 0.7 gal)

o Material: Ceramic Bowl
o Toilet Flush Water: Fresh Water|Raw Water
o Toilet Bowl Size: Compact
o Toilet Operation: Electric
o Inlet Outlet Port Size: Waste Pump: 1/2" Inlet, 1/4" Outlet, Solenoid: 1/2" Inlet, 1/4" Outlet
o Replaces: 9-50300
o Brand: Tecma
o Application: Vessels Below 50 ft (45m)
o Model: Nano
o Colour: White
o Voltage Description: 12V DC
o Fuse: 30A
o Height Description: Overall: 295mm (11.6")
o Width: Overall: 370mm (14.6"), Footprint: 190mm (7.5")
o Depth: Overall: 446mm (17.5"), Footprint: 320mm (12.6")
