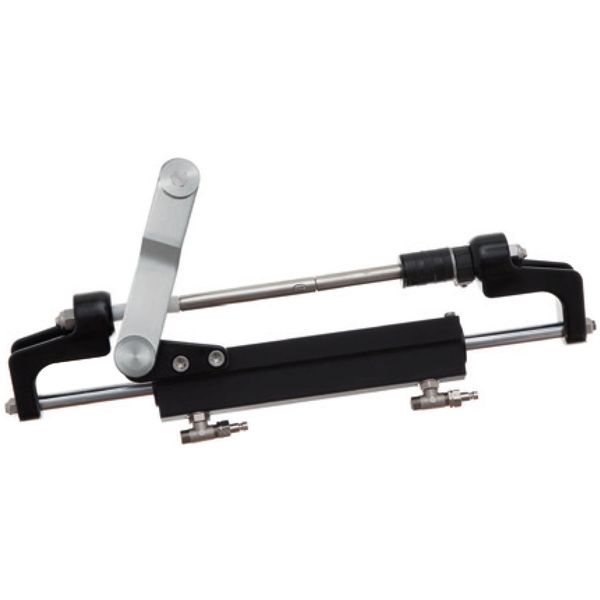

Ultraflex UC95-OBF/2 Outboard Front Mount Cylinder

The UC95-OBF front mount cylinder is recommended for use with outboard engines 175 hp total and less, and where the boat speed does not exceed 55mph (48 knots). It features adjustable boss style fittings for easy installation, a high resistance stainless steel connection bolt (ULTRABOLT) and replaceable cylinder heads. The number of turns lock-to-lock is equal port to starboard or vice-versa.

Ultraflex UC95-OBF/2 Outboard Front Mount Hydraulic Cylinder is suitable for the following engine applications (and will allow for a wider tilting angle than UC95-OBF/1):

Evinrude:

- E40, E50, E55 & E60 2S (2004 - to date)

- E75 & E90 2-stroke (2004 - to date)

- E115, E130 & E135 2-stroke V4 (1995 - to date)

- E150 & E175 2-stroke V6 (1995 - to date)

Johnson:

- BJ70 4-stroke (2001-2007)

- J90 - J115 V4 2-stroke (1995-2007)

- J150 - J175 V6 2-stroke (1995-2007)

Selva:

- 150 White Shark 2S (2001 - 2007)

Suzuki:

- DF70, DF80 & DF90 4-stroke (1998 - to date)

Tohatsu (Nissan):

- 115, 120 & 140 2-stroke (2004 - to date)

Yamaha:

- 75C & 90 2-stroke (1998 - 2008)

- 115C, 130B & 150F 2-stroke (1990 - 2008)

- 150 & 175 HPDI VMAX 2-stroke (2000 - 2008)

UFLEX Brochure 2021

UFLEX UC95 OBF Drawing

N/A (Not Applicable)

o Capacity Description: 94cc
o Material: Stainless steel connection bolt
o Output: 278kg - 613lbs
o Fitting: Hose Connector
o Connections Description: 3/8" OD Pipe
o Steering Wheel Turns: Equal port to starboard or vice-versa
o Stroke: 186mm (7.3")
o Brand: Ultraflex
o Model: UC95-OBF/2
o Approvals: CE
o Height Description: 100mm
o Width: 160mm
o Length: 551mm (21.7")
o Weight: 4.3kg
o Diameter Description: 278kg - 613lbs ID
o Mounting Description: Front
