Mapa Manual Telescoptic Table Leg with Sliding Support for Folding Top

Telescopic manual adjustable table leg supplied with a two-movement shifter with rotation for folding tables with single handle locking.

A very sturdy and stable table support in cold rolled galvanised steel with a plastic coating which ensures its exclusive and sleek design. The support is supplied with its shifter for the movement of the table plane when not closed.

Low position: the support can be easily lowered by pressing the button at the bottom and by pushing the table downwards to its automatic locking (Min height - 34.5cm).

High position: lifting and locking are automatic by pressing the button at the bottom (Max height - 76cm).

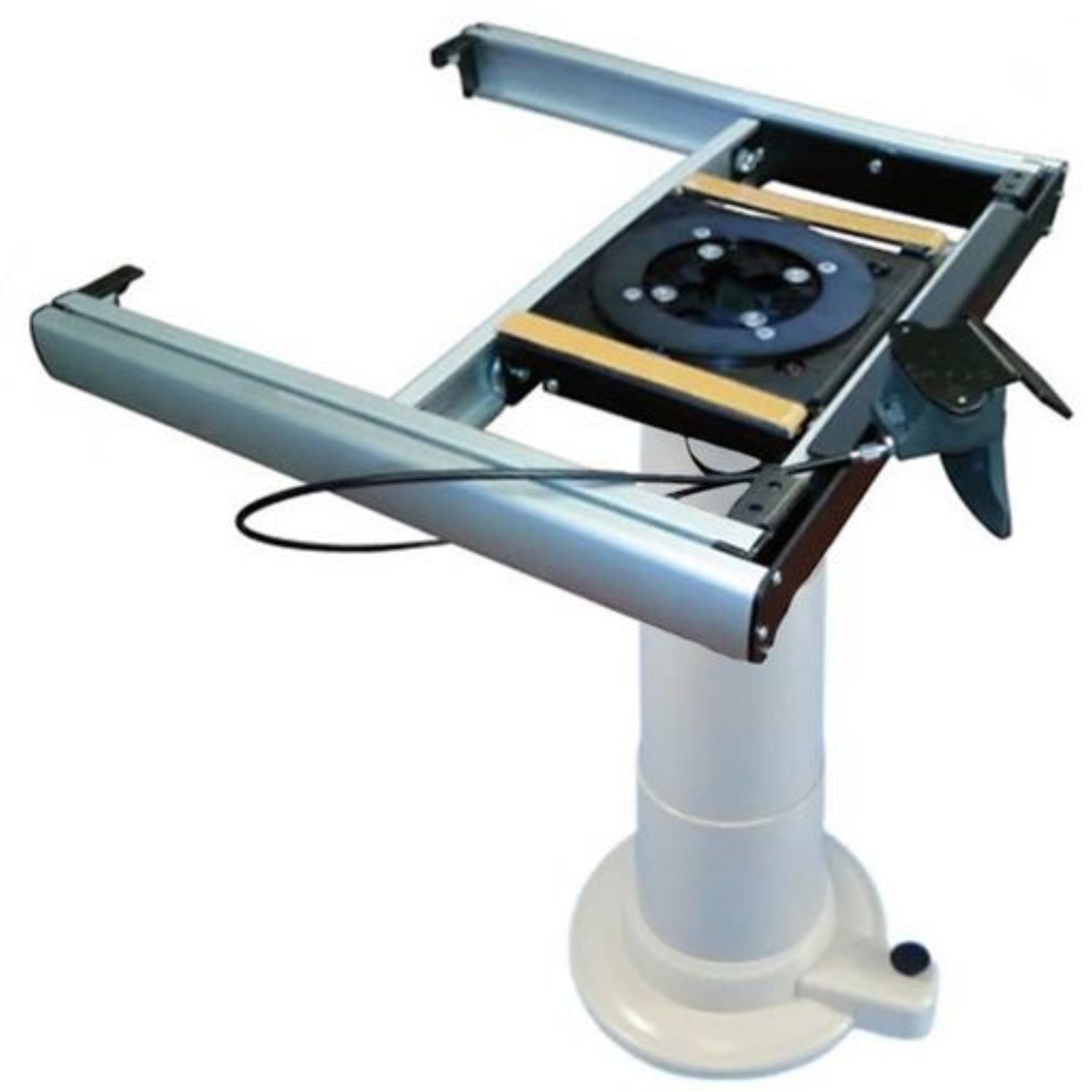

A very light and sturdy sliding support (Specific for table planes with book-like folding) in a silver anodised billet aluminium frame and galvanised steel supports. The ball bearings are delrin covered which ensures great sliding properties and quietness during the movement. It comes with handle locking that enables the movement of the table plane in any direction, by pressing the handle. When the handle is released, the table stops.

Load capacity:

Once a standard table top is installed onto the leg, the centre of the leg it can take up to 50kg, and on the edge it can take 10-15kg.

If the leg and table top is lowered and used as a bed, the table needs to be supported around the edge and can then withstand 120-130kg.

o 360 Degree Rotation
o Electric Movement
o Locking Handle
o Low Minimum Height 33cmN/A (Not Applicable)

o Dimensions:Shifter: 48 x 61cm – 48 x 95cm
o Rotation:360°
o Stroke: 35 x 13cm
o Brand: MAPA
o Type: Telescopic Legs
o Height: Max height - 76cm, Min height - 34.5cm
o Material: Leg: rolled galvanised steel with a plastic coating. Sliding support: silver anodised billet aluminium frame and galvanised steel supports.
o Colour: Grey
