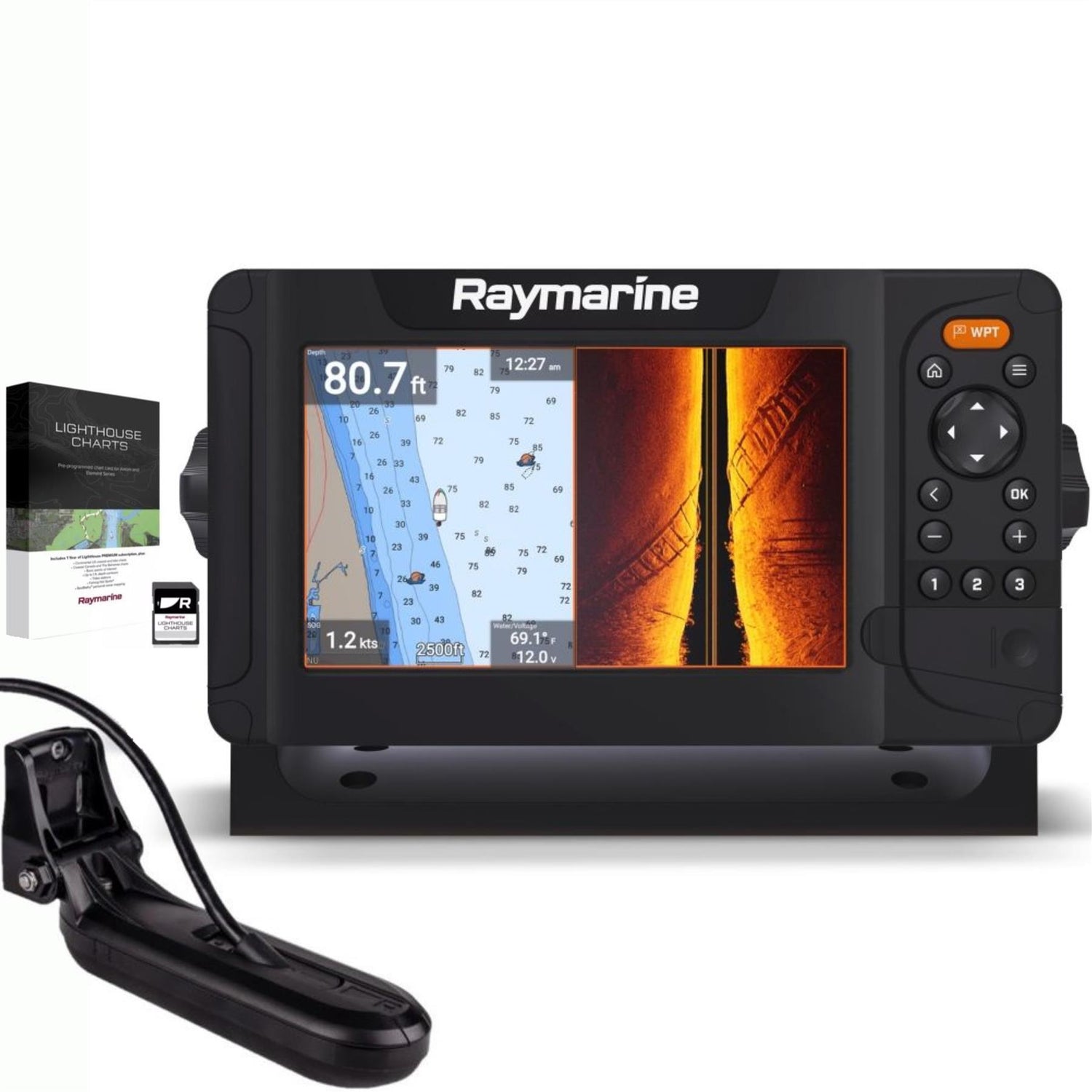

Raymarine Element 7HV Display, HV100+ TDX & Western Europe Chart

Eine Bewertung schreiben
| Stellen Sie eine Frage

E70644-05-WEU 3 Year Warranty

£630.39 £695.00

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Beschreibung

Navigate With Confidence

The Element series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color.

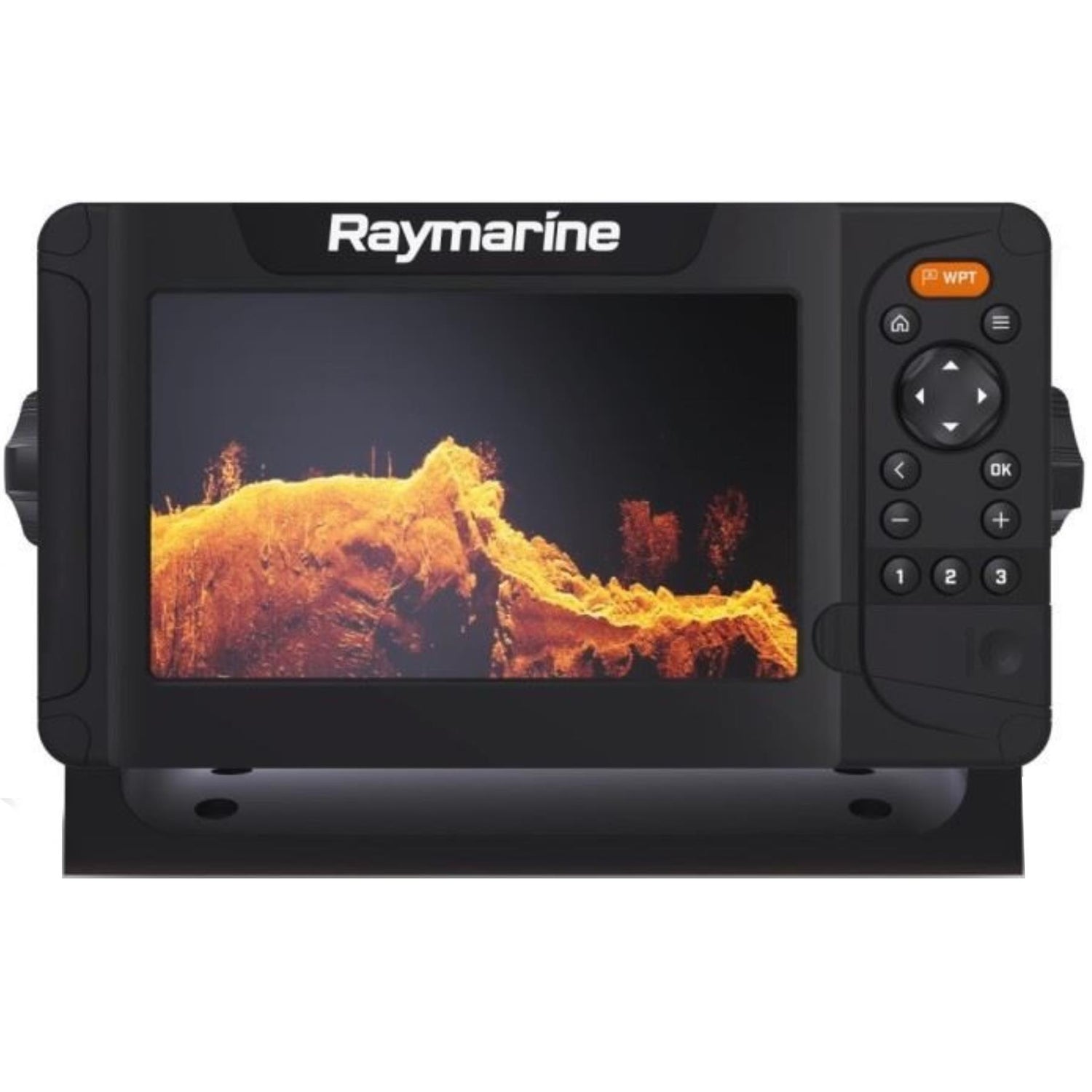

Sonar is Standard - Element HV includes HyperVision, a 1.2 megahertz sonar technology, which turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification. Letting you see structures, vegetation, and fish with amazing life-like clarity.

Quad-core performance - The fast quad-core processor allows instantaneous chart re-draw and continuous 3D rendering while running a simple, easy-to-learn user interface.

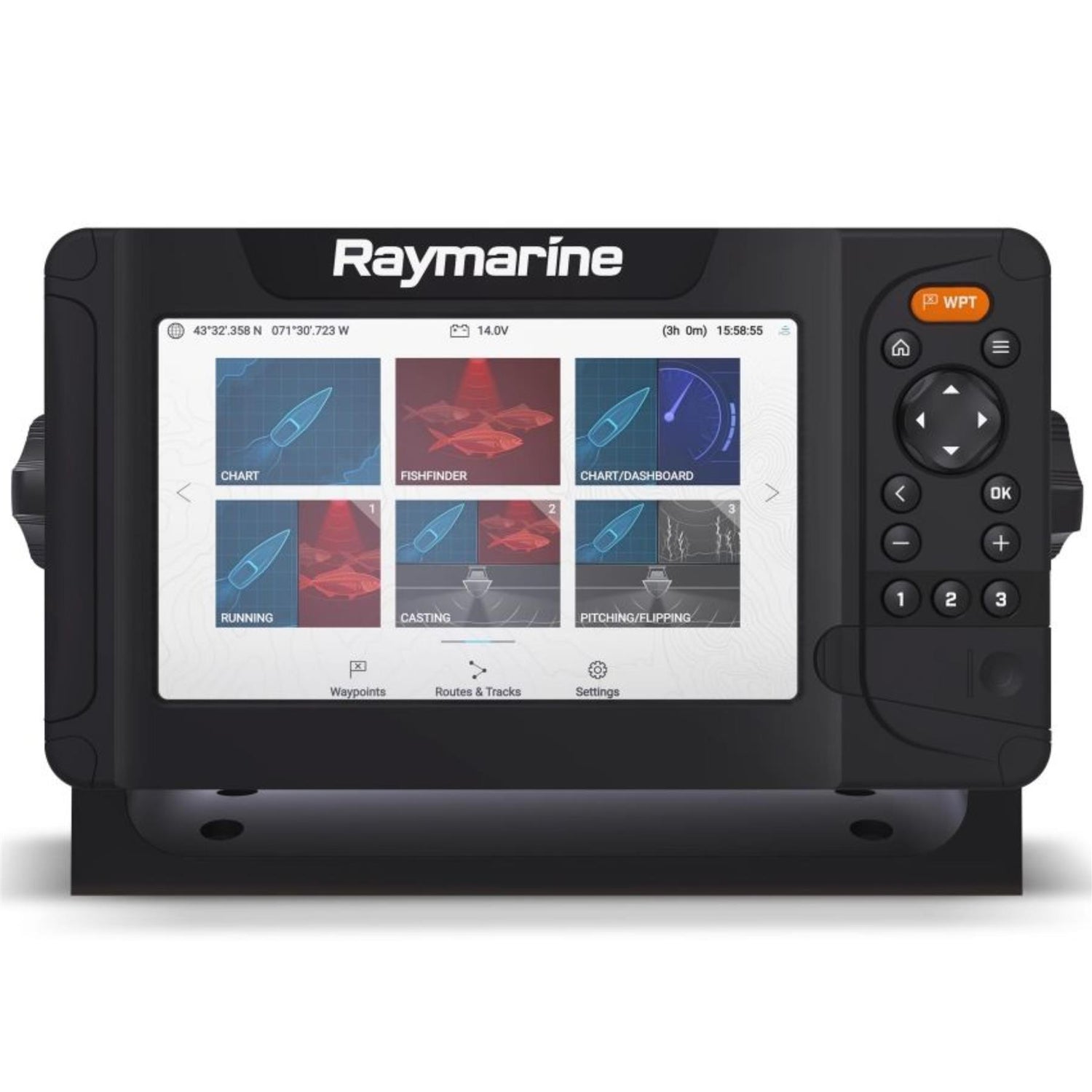

Lighthouse Sport OS - Raymarines Lighthouse Sport operating system is designed for boaters who value simplicity and ease of operation, featuring uncomplicated menus.

Intuitive keypad controls - Helping captains get under way fast and stay on course. Dedicated keypad controls keep the screen free of fingerprints. Additionally, three user-programmable quick keys provide instant access to favored pages, and an oversized waypoint button allows quick and easy marking of areas of interest.

Live menus - Change settings or customize charts while seeing the navigation display change in real time.

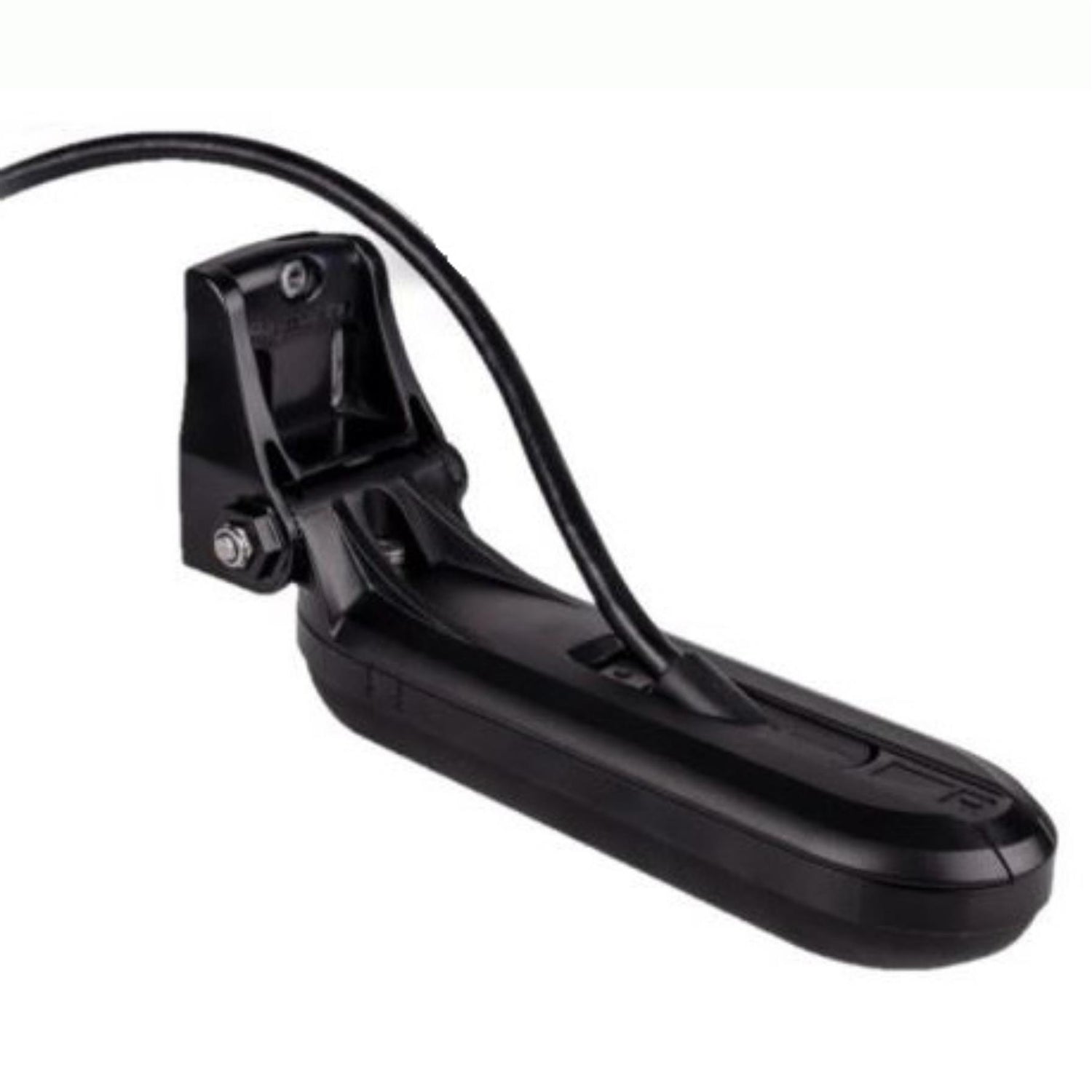

Includes HV-100+ Transom Mount Transducer - All in one transducer compatable with Raymarine Element HV units 1.2MHz HyperVision provides super high-resolution imaging Up to 125ft in DownVision and SideVision modes. 350kHz Standard imaging for great resolution and exceptional range.

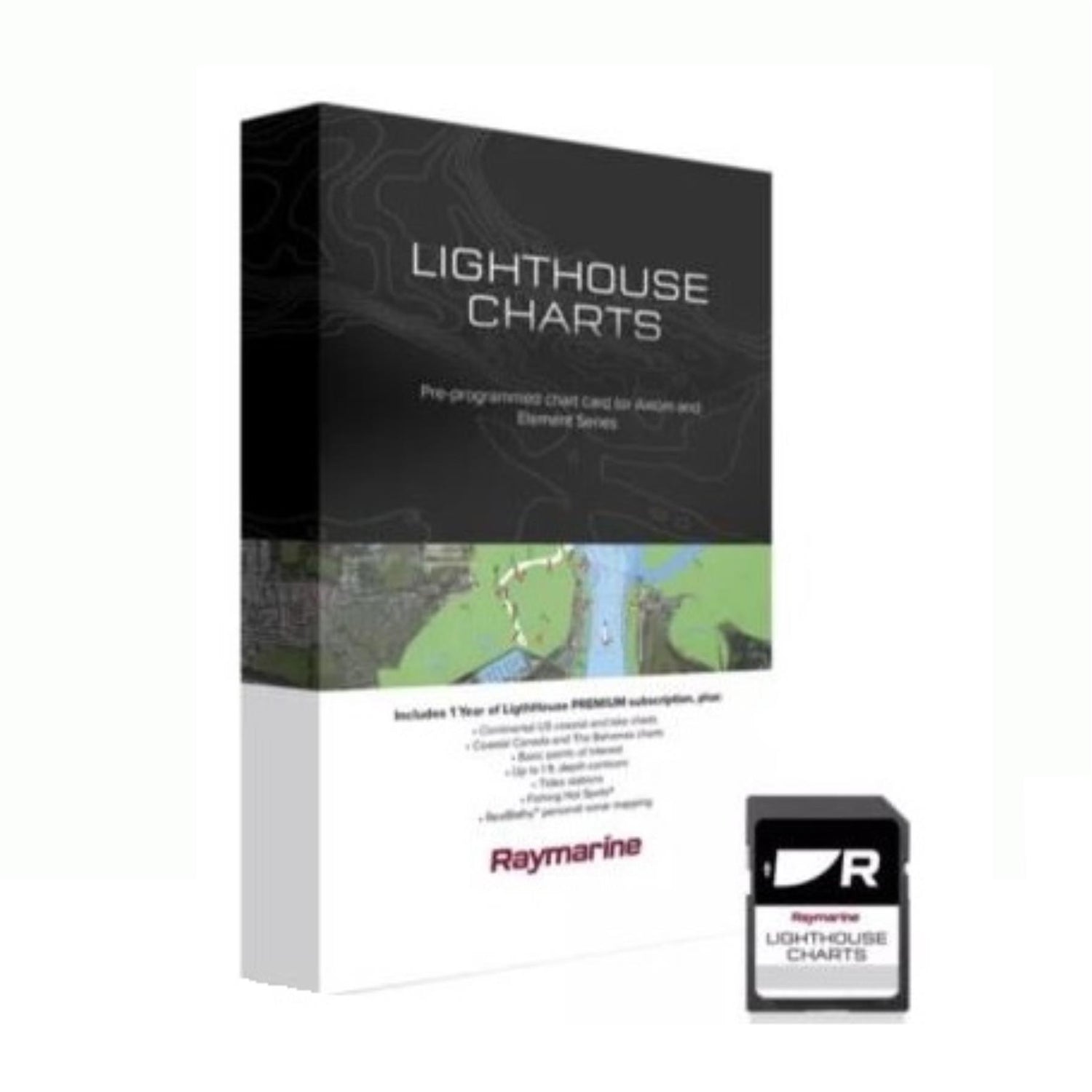

Raymarine LightHouse 2 Chart - Includes Western Europe Lighthouse Chart: coverage area includes Ireland, Great Britain, Portugal, Spain, France, Germany, and Denmark.

In The Box

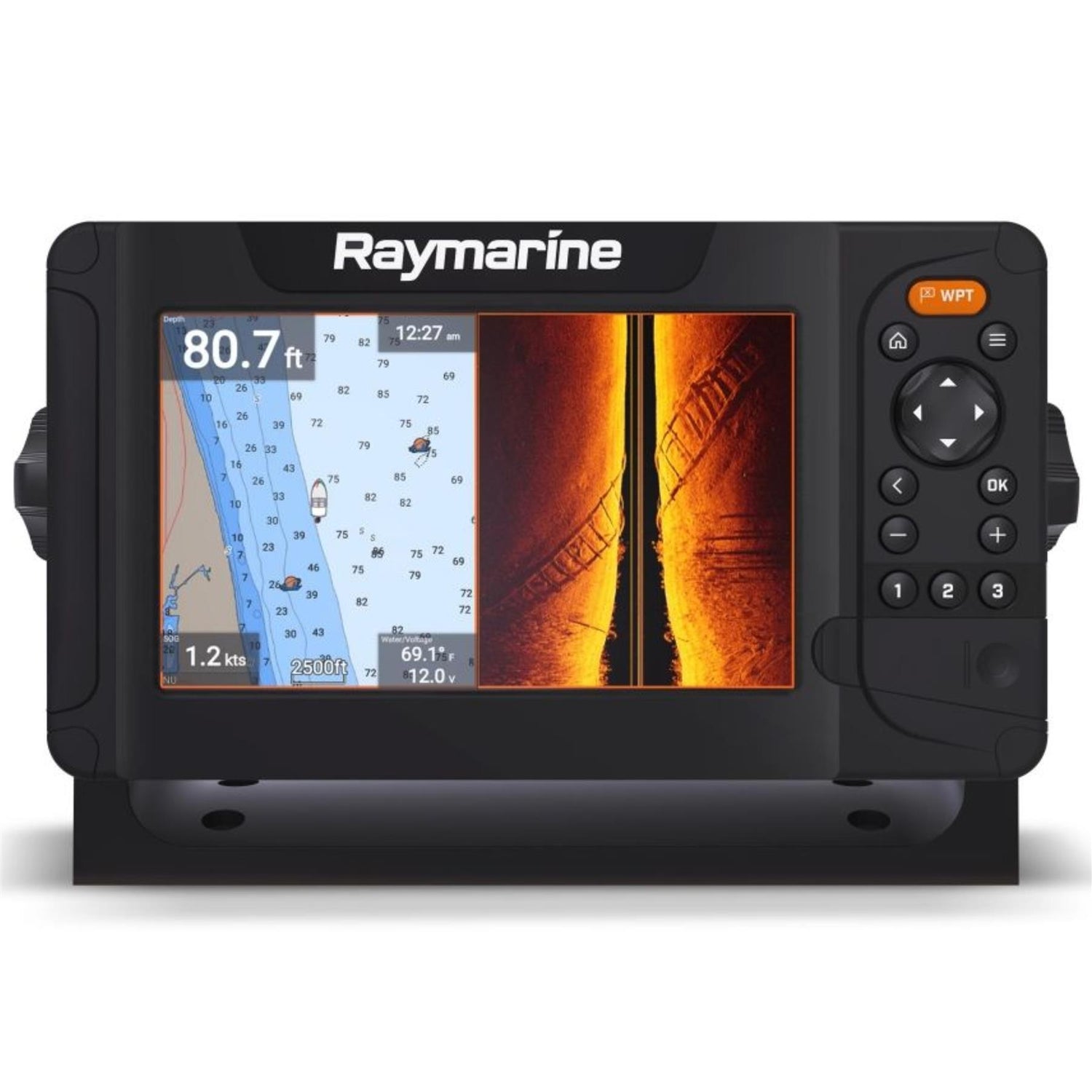

  • Element display
  • HV-100+ Transom Mount Transducer
  • Western Europe Lighthouse Chart
  • Surface mount gasket
  • Suncover
  • Trunnion knobs (x 2)
  • Documentation

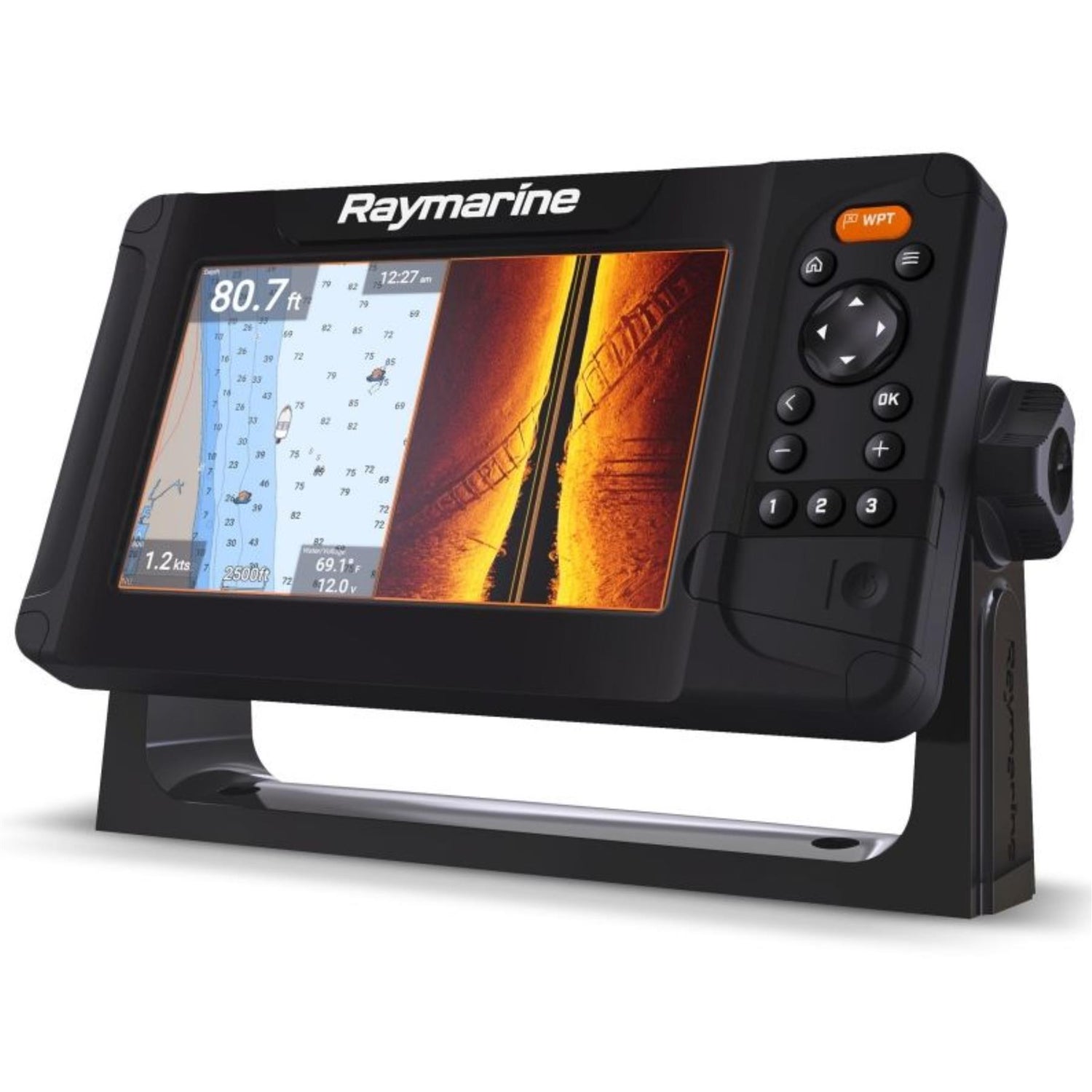

  • Trunnion bracket
  • Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
  • Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

Product Videos


Features

o Display Size: 7.0" Optically Bonded LCD
o Display Resolution: 800 x 480 WVGA
o Three user-programmable quick keys provide access to favorite pages with one button push
o Live menus allows customisation of charts while seeing the navigation display change in real time
o Includes preloaded LightHouse Charts Western Europe chart card
o Includes 1 Free year of LightHouse Charts Premium Subscription

Specifications

Power
o Operating Voltage Range: 8 - 16V DC (Protected up to 32V DC)
o Power Consumption @ 12V DC: 15W
o Nominal Supply Voltage: 12V DC
o Fuse Requirements: Inline fues: 5A, Thermal Breaker: 3A
o LEN (NMEA 2000 Load Equivalency Number): 1 (Based on 9V DC nominal voltage

Enviromental
o Operating Temperature Range: -25°C - 55°C (-13°F - 131°F)
o Storage Temperature Range: -30°C - 70°C (-22°F - 158°F)
o Humidity: up to 93% @ 40°C (104°F)
o Waterproof Rating: IPX6, IPX7

Physical
o Dimensions (Trunion Mounted: 162.59 x 263.85 x 149.4mm (6.4" x 9.43" x 5.88")
o Dimensions (Surface Mounted): 135.1 x 239.6 x 149.4mm (5.32" x 9.43" x 5.88")
o Weight (Display only): 1Kg (2.2lbs)

LCD
o Size (diagonal): 7"
o Resolution: 800 x 480 (WVGA)
o Aspect Ratio: 0.210416666666667
o View Angle (T/B/L/R): 50°/60°/70°/70°
o Display Type: TN
o Colour Depth: 24-bit
o Maximum Illumination: 1,500nits / 1,500 cd/m2

Data Connections
o SeaTalkng / NMEA 2000: 1 x DeviceNet femal connector
o : (Built into power cable)
o 2.4 GHz Wi-Fi: 802.11/b/g/n
o Transducer: 1 x 15-pin HyperVision connector

GPS Receiver
o Position Accuracy: Without SBAS: ≤ 15 metres 95% of the time
o : With SBAS: ≤ 5 metres 95% of the time
o Geodetic Datum: WGS-84 (alternatives can be selected on the MFD)
o Channels: Multiple - ability to simultaneously track up to 28 satellites
o Antenna: Internal - Ceramic chip mounted near top of unit
o GNSS compatibility: GPS, GLONASS, Beidou
o SBAS compatibility: EGNOS, GAGAN, MSAS, QZSS, WAAS
o Signal Acquisition: Automatic
o Almanac Update: Automatic
o Receiver IC Sensitivity: 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
o Operating frequency: 1574 MHz to 1605 MHz
o Cold start: < 2 minutes

Storage
o External: 1 x MicroSDXC card slot
