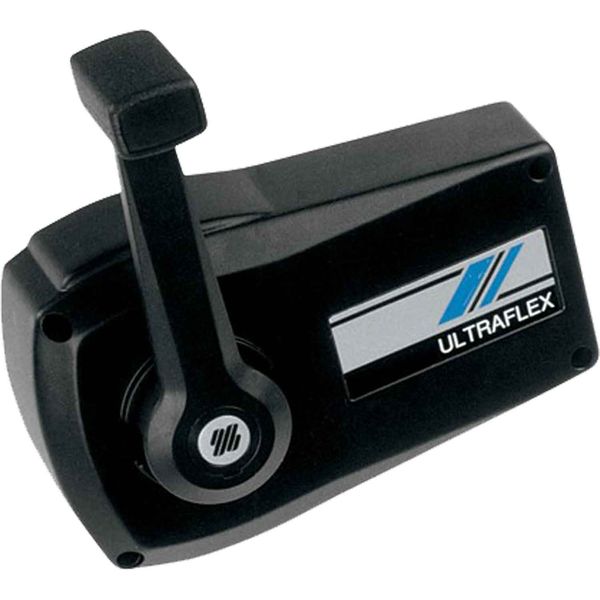

Ultraflex Single Lever Surface Control Basic Black

SINGLE LEVER SIDE MOUNT CONTROL

Single lever / dual action control to operate both throttle and gear. Suitable for any type of boat with outboard, inboard or I/O power plants.

Features

- Enables easy & safe gearing by preventing accidental gear engagement unless engine is idling

- Can be installed horizontally or vertically, on the starboard or port side of the boat

- Pull-out handle disengages gear for warm-up

- Neutral safety switch 4-X12 (optional), prevents in gear starting. Exceeds EN ISO 11547 standards when installed.

- Models B89 & B90 are provided with positive lock-in neutral to prevent accidental gear engagement

Additional Features

- Made of Marine grade painted aluminium.

- For use with all Ultraflex engine control cables except C22, C4, C36 & MACH36.

- Ultraflex C5, C16 & MACH5 cables require 4-K35, connection kit.

- To connect C14 & MACH14 cables to engine, use 4-K51 - connection kit

Fitting kit: 14-B87-B88

N/A (Not Applicable)

o Material: Black Painted Marine Aluminium
o Number of Functions: Dual Function
o Number of Levers: Single Lever
o Cable [Control Cable]: 33C
o Brand: Ultraflex
o Model: B88
o Colour: Black

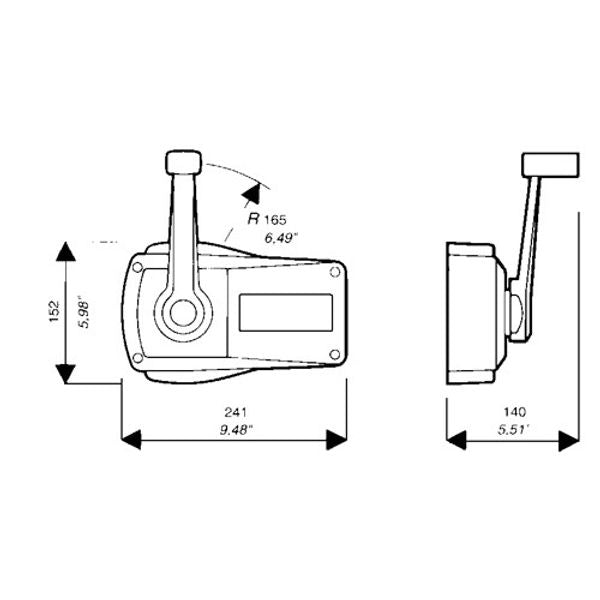

o Height Description: Base: 152mm (6")
o Length: Handle: 164.5mm (6-1/2")
o Mounting Description: Side Mount
