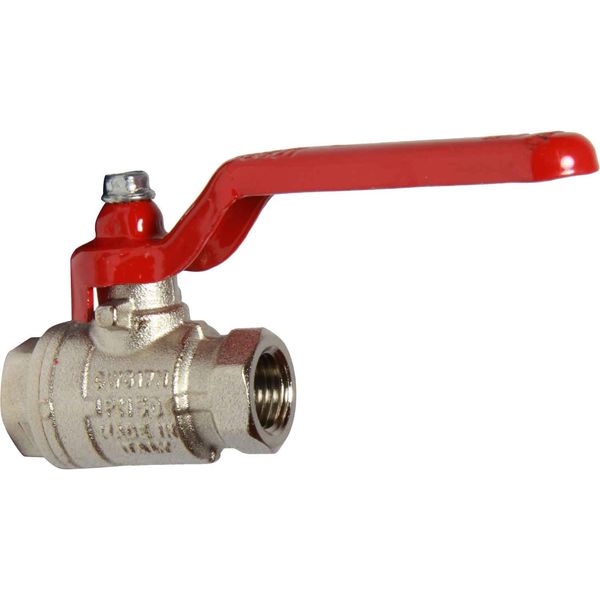

AG Lever Ball Valve PN14 4" BSP Female Ports

Eine Bewertung schreiben
| Stellen Sie eine Frage

900400 1 Year Manufacturer Warranty

£332.25 £457.73

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Beschreibung

Good quality full flow ball valves at competitive prices. Suitable for industrial pneumatic & hydraulic installations including gasoline fuel oils kerosene petrol & diesel. Ideal for hot & cold water different oils & compressed air.

Minimum 100000 operation design

90 degree movement by either lever or tee handle

Materials:

Body: Nickel plated brass CW 617N

Ball: Hard chrome-plated brass CW 617N

Stem: Brass CW 614N

Seal: Pure Teflon (PTFE)

O Rings: Viton / NBR

Lever Handle: Red coated zinc plated steel Fe P04

Working Temperatures:

-20 Degrees C 150 Degrees C in absence of steam

WARNING the formation of ice can severely damage valves & piping

Technical Specification

BSP Parallel Thread ISO 228 (equivalent to DIN EN ISO 228 & BS EN ISO 228)

Bar* - Pressure Atmosphere Kg/cm Cubed

PSI* - LBS Working Pressure.

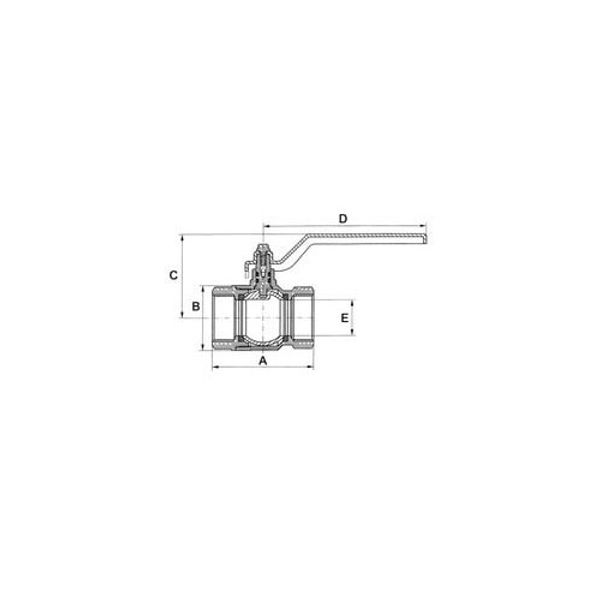

Part Number Dim A mm Dim B mm Dim C mm Dim D mm Dim E mm Bar* PSI*
1-74990 44 23 37 80 10 50 710
1-75000 44 24 37 80 10 50 710
1-75010 50 30 41 80 15 50 710
1-75020 57 37 55 113 20 40 570
1-75030 70 45 59 113 25 40 570
1-75040 80 57 74 137 32 30 430
1-75050 94 70 80 137 40 30 430
1-75060 112 84 96 157 50 25 360
1-75070 134 110 117 197 65 18 260
1-75080 156 131 129 250 80 16 230
1-75084 190 164 143 250 100 14 200

Features

N/A (Not Applicable)

Specifications

o Material: Nickel Plated Brass
o Primary Construction: Brass
o Thread Connection: BSP
o Thread Fitting Size: 4"
o Thread Gender: Female
o Valve Design: Ball Valve
o Thread Size: 4" BSP Female
o Brand: AG
