Quick DP2E 600D Windlass Gypsy & Drum (500W / 12V / 6mm)

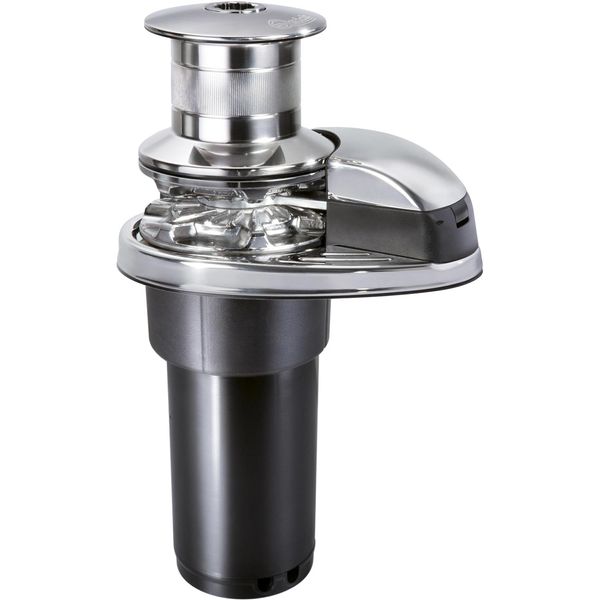

The Quick DP2E Prince 600D vertical windlass is suitable for boats from 6m to 10m (20 to 33ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4") gypsy which is suitable for 6mm ISO chain and a 1/2" rope. This version also comes with a drum attached.

Drilling Template DP2E Prince Series

Technical Manual DP2E Prince Series

N/A (Not Applicable)

o Primary Construction: Stainless Steel
o Suitable For: Chain and Rope
o Boat Size: 6 to 10 metres in length
o Gypsy Size: 6mm
o Brand: Quick
o Series: Prince DP2E
o Model: 600D
o Voltage Description: 12V DC
o Wattage: Motor Power: 500W
o Working Load: 65kg (143 lb), Maximum: 200kg (441 lb)
o Maximum Pull Load: 620kg (1366.9 lb)
o Maximum Chain Speed: 22.9 m/min (75.1 ft/min), At Working Load: 18.6 m/min (61.0 ft/min)
o Amps Description: Current Absorbtion At Working Load: 60A
o Fuse: 50A Protection Circuit Breaker
o Contents: Contactor Units, Nylon Handle, Drilling Template, User Manual
o Height Description: 344.5mm (13-11/64")
o Width: 196mm (7-23/32")
o Depth: 145.4mm (5-23/32")
o Size: Motor Cable: 16mm2 (AWG5)
