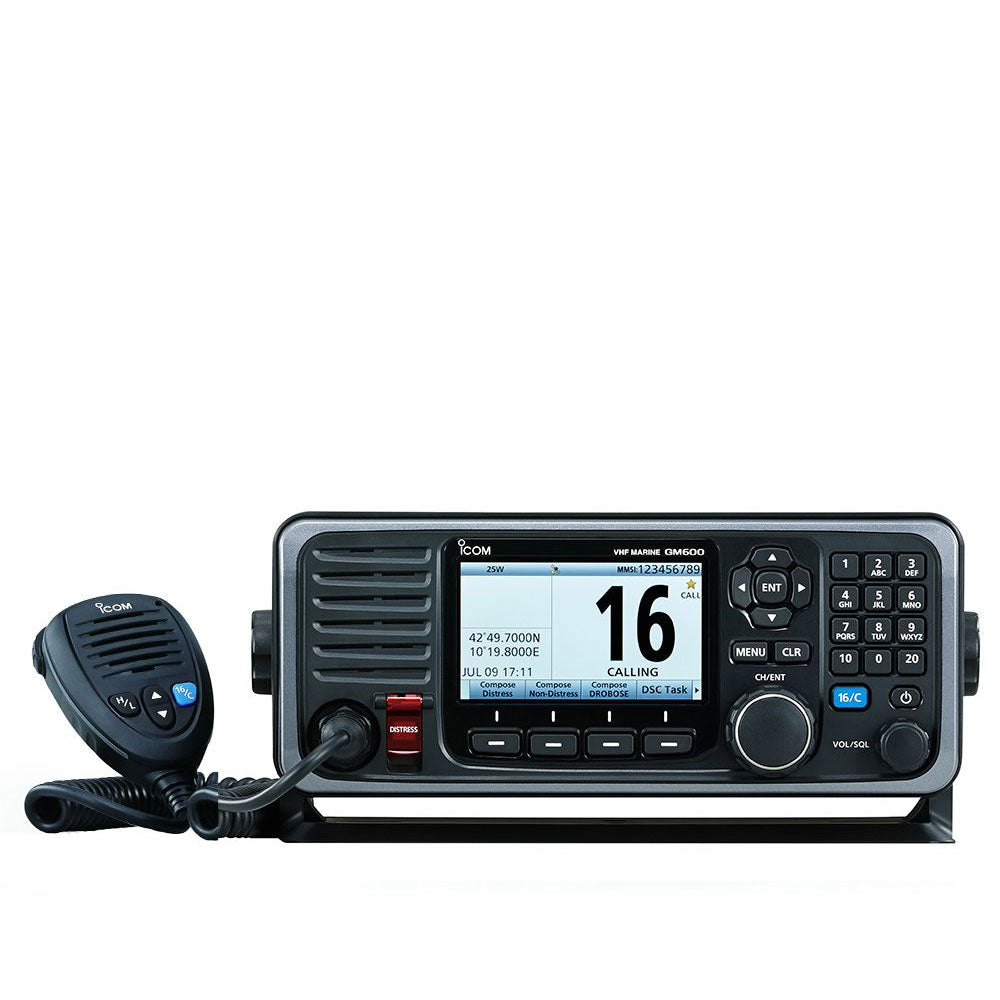

ICOM GM600 GMDSS VHF Transceiver

Meets MED “Wheel Mark” Requirements - The GM600 meets the Marine Equipment Directive 2014/90/EU on European marine equipment requirements and has passed rigorous environmental testing and quality assurance process. The GM600 is designed to provide reliable operation and long-lasting durability under harsh maritime environments. The front panel has IPX7 protection (1 m depth of water for 30 minutes) and the rear panel has a corrosion resistance coating.

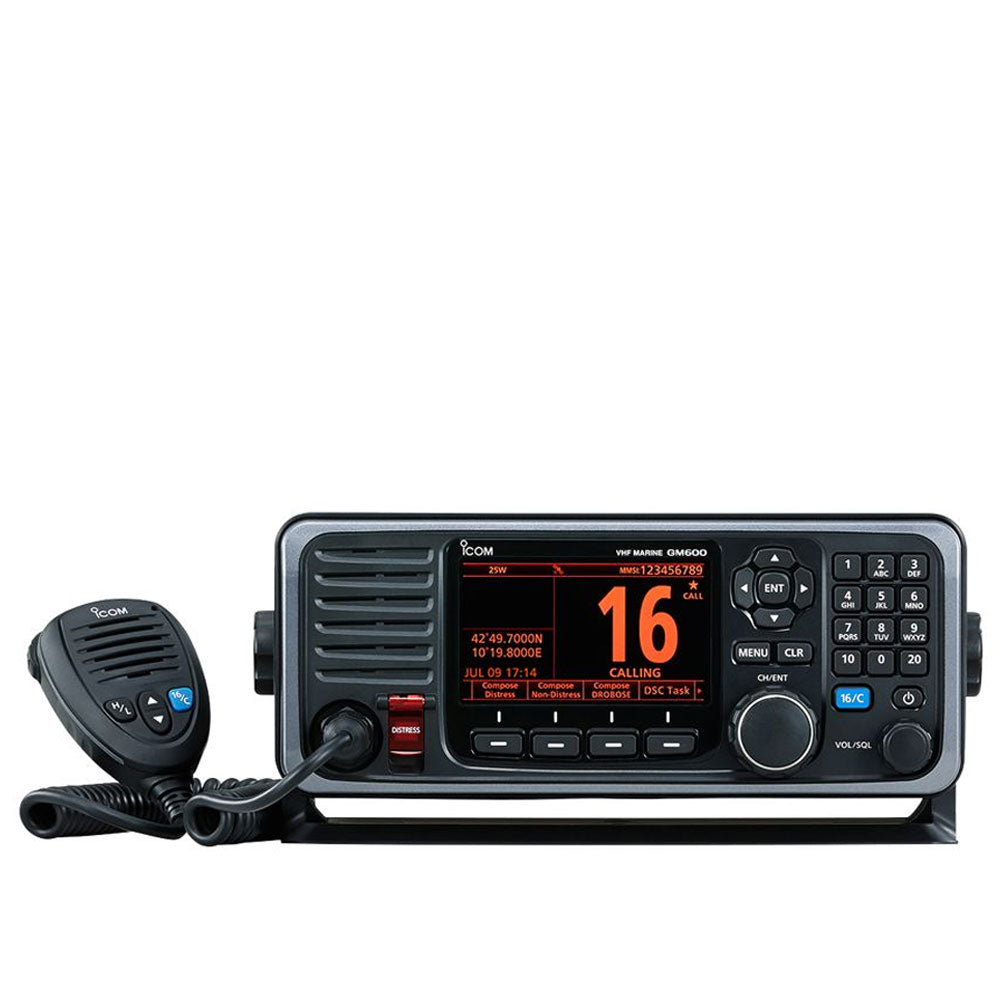

4.3 inch Wide Viewing Angle Colour TFT LCD - The 4.3 inch colour TFT LCD provides almost 180 degree very wide viewing angle and displays high resolution characters and function icons. Even when the radio is installed to the instrument panel the operator can clearly recognize the display information from various viewing angles. The night mode display (see below) ensures good readability in low light conditions.

Intuitive User Interface - A combination of directional keypad and soft keys provides simple operation. The main 12 functions are assigned to soft keys (at the bottom of the display) and toggled with the left and right keys. Clearly labelled keypad provides straightforward entry.

Provides Loud Clear Audio - The GM600’s internal speaker enhances intelligibility of received calls. By adopting a new waterproof paper speaker cone the speaker provides superior sound quality with a wide frequency range and a flat frequency response. In addition the radio delivers powerful 10 W audio when connected to an external speaker.

DC-DC Converter PS-310 - The PS-310 DC-DC converter supplies a stable 12.6 V of power to the GM600 from either a 12 V or 24 V power source (depending on version) and provides a floating ground connection. The PS-310 protects the radio from momentary power interruption. The PS-310 must be used with the GM600 for MED certification compliance.

GMDSS VHF transceiver with Class A DSC.

Meets ITU-R M.493-13 DSC.

Meets MED “Wheel Mark” Requirements.

4.3 inch Wide Viewing Angle Colour TFT LCD.

Intuitive User Interface.

IEC 61162-1 interface for GNSS receiver.
