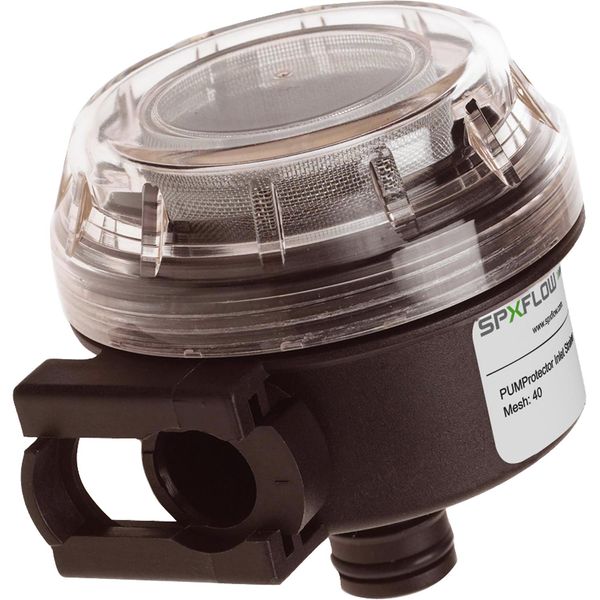

Johnson 09-24653-01 Inlet Strainer (40 Mesh)

A Johnson Pump PUMProtector Inlet Strainer is recommended for installation together with a Water Pressure System (WPS) pump to protect the pump from debris, etc. For use at inlet side of Water Pressure System (WPS) pumps and Wash Down (WD) pumps in SPX Johnson Pumps Aqua Jet series; Mounted between water tank and pump. The filter is easy to disassemble for cleaning.

Johnson pump inlet strainer with 40 mesh and built-in KlickTite connectors: 1x 1/2" hose - 3/8" BSP (NPT) 1x 3/4" hose - 1/2" BSP (NPT)

• Transparent covers for simple inspection
• Wide variety of KlickTite™ port connectors for simple installation and removal
• High quality materials for simple maintenance
• The design and connectors make it possible to remove the entire unit for thorough cleaning wherever it is most convenient

o Hose Tail Size: 13mm / 1/2"|19mm / 3/4"
o Strainer Design: Pump Inlet
o Thread Connection: BSP|NPT
o Thread Fitting Size: 3/8"|1/2"
o Thread Gender: Male
o Mesh Rating: 40
o Replaces: Johnson USA 09-24653-02-CN
o Thread Size: 3/8" BSP/NPT Male or 1/2" BSP/NPT Male
o Brand: Johnson Pump

Dimensions
Diameter 80 mm / 3.15"
Height 60 mm / 2.35"
Weight 0.15 kg / 0.33 lbs
Mesh size 40 µm
