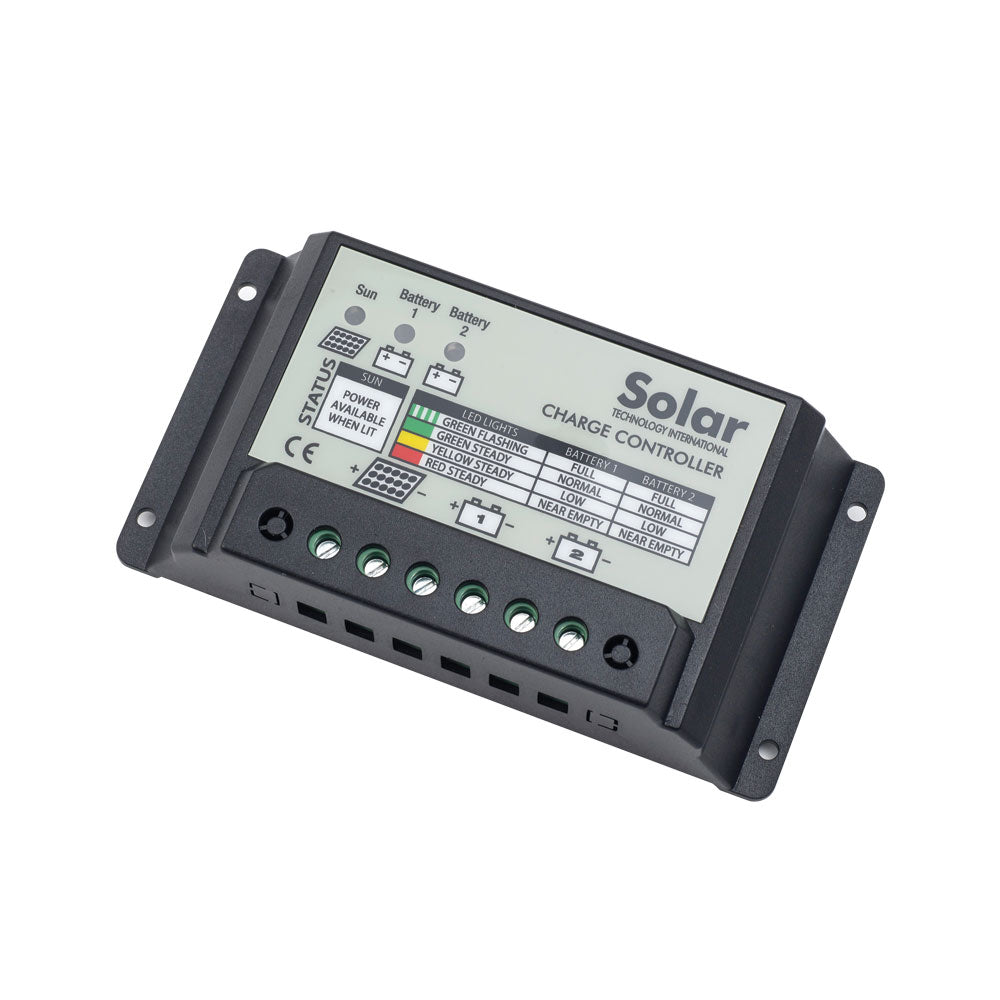

Solar Technology 20A Dual Battery Charge Controller
STCC20 2 Year Warranty
Solar Technology 20A Dual Battery Charge Controller ...è stato ordinato al fornitore e verrà spedito non appena sarà di nuovo disponibile.
Non è stato possibile caricare la disponibilità per il ritiro
FAST FREE UK STANDARD SHIPPING*
FAST FREE UK STANDARD SHIPPING*
• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)
• Click here for more delivery information
60 DAY NO QUIBBLE RETURNS
60 DAY NO QUIBBLE RETURNS
• 60 days hassle-free returns. - exclusions apply
![](http://proteusmarinestore.com/cdn/shop/files/Screenshot_2023-07-13_at_09.21.24.png?v=1689238301&width=1000)
Descrizione
Descrizione
- Nominal System Voltage: 12/24VDC (automatic system voltage recognition)
- Battery Voltage Range: 6-36V
- Rated Battery Current: 20A
- Over Voltage Disconnect Voltage: 16V/32V
- Charging Limit Voltage: 14.6V/29.2V
- Equalize Charging Voltage: 14.6V/29.2V
- Float Charging Voltage: 13.8/27.2V
- Operating temperature: -35oC to +55oC
- Overall dimensions: 135 x 70 x 35mm
- Terminal size: 6mm2
- Net weight: 165g

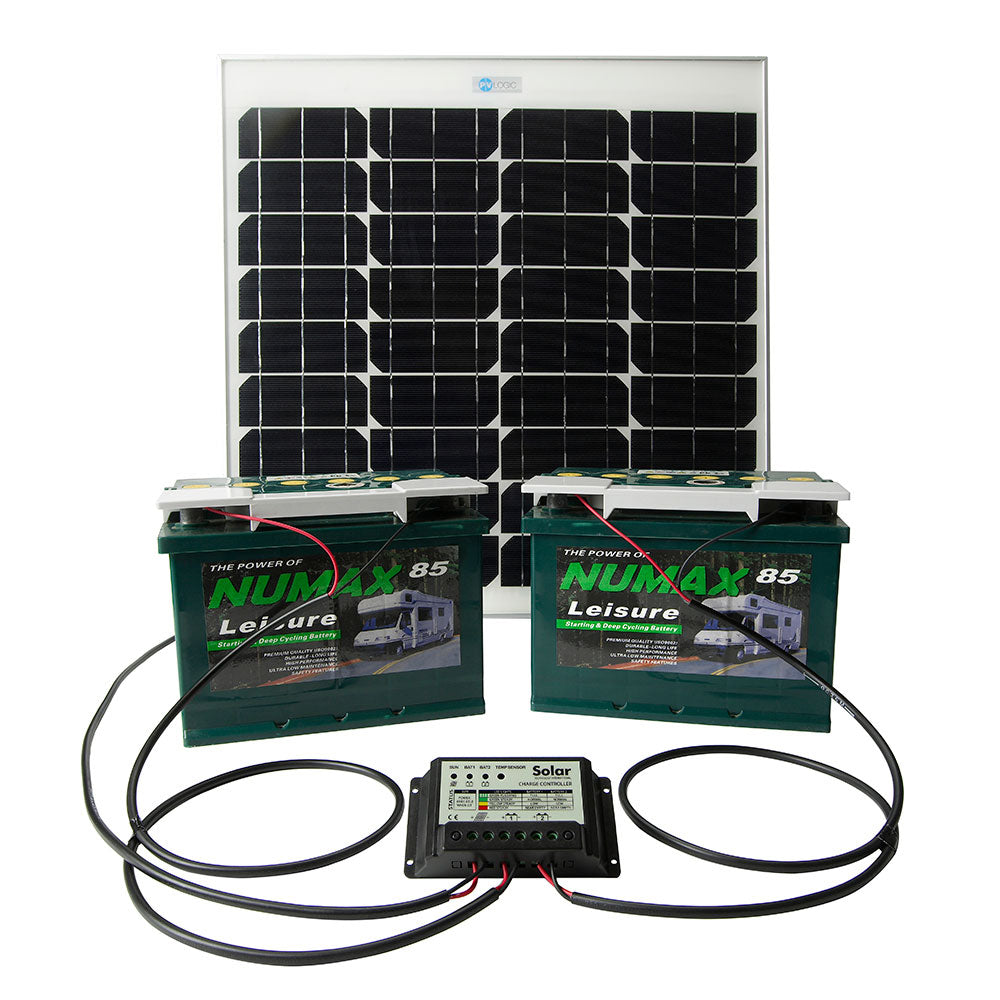

This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.
The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.
- Reverse current protection.
- Unique dual battery charging function.
- Efficient Series PWM charging increases battery lifetime and improves solar system performance.
- 12/24V automatic recognition.
- Overload protection
- Open circuit protection
- Lightning surge protection
- Deep discharge protection
- Charge current protection up to 20A
- All solar panels (except the 5w &10W) require a voltage regulator to ensure that the battery is not overcharged. We recommend the this controller for panels up to and including 300w.
Contents
- 1 x 20A charge controller
- 1 x instruction sheet
- Two year warranty
