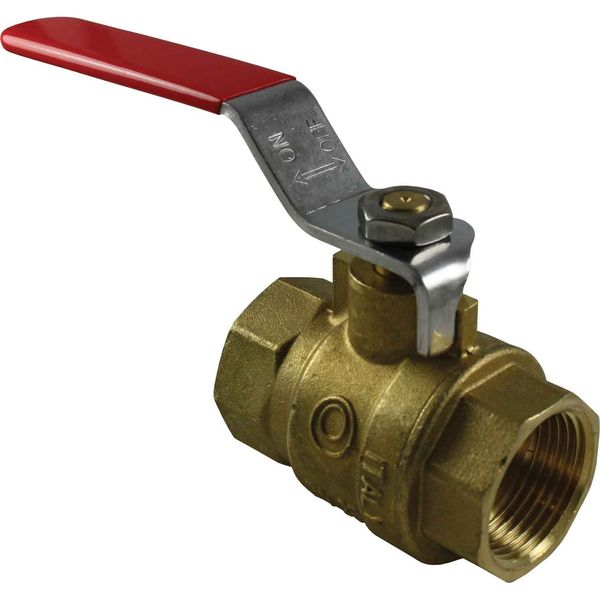

Maestrini DZR CR Ball Valve (1" BSP Female)

Scrivi una recensione
| Fai una domanda
£30.44 £34.60

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descrizione

Maestrini ball valve constructed from de-zincification resistant CW602N CR brass. This ball valve is suitable for hot or cold water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air and can be used for sea water inlets and outlets. These ball valves are threaded 1" BSP Female each end and have a lever handle on top which requires a 1/4 turn for on/off action. DZR CR ball valves are full bore meaning no restriction to flow when fully opened.

This ball valve features a CW602N DZR CR brass body and ball, as well as a stainless steel lever handle.

IMPORTANT: It is extremely important to check the material suitability and bonding requirements for below waterline components. Action must be taken to prevent Galvanisedanic action. If in doubt, please contact a qualified and competent marine engineer.

Technical Article - DZR Fittings
Technical Article - Raw Water Intake System

Features

N/A (Not Applicable)

Specifications

o Material: DZR Brass Body (CW602N UNI EN 12165/98), Chrome Plated DZR Ball (CW602N UNI EN 12165/98), Stainless Steel 430 Handle & Nut, PTFE Ball Seat, NBR Ball Stem O-Ring & HNBR Handle Stem O-Ring
o Working Pressure: 362.5 PSI (25 bar)
o Primary Construction: DZR / CR Brass
o Thread Connection: BSP
o Thread Fitting Size: 1"
o Thread Gender: Female
o Valve Design: Ball Valve
o Thread Size: 1" BSP Female (UNI ISO 228/1)
o Brand: Maestrini
o Temperature Range: -10C to +100C
o Country of Origin: Italy
