Maestrini Bronze Body Ball Valve (1" BSP Female)

Scrivi una recensione
| Fai una domanda
£48.10 £57.19

FAST FREE UK STANDARD SHIPPING*

• Express delivery £7.99 (Monday-Friday, orders placed before 1pm)

• Click here for more delivery information

60 DAY NO QUIBBLE RETURNS

• 60 days hassle-free returns. - exclusions apply

Descrizione

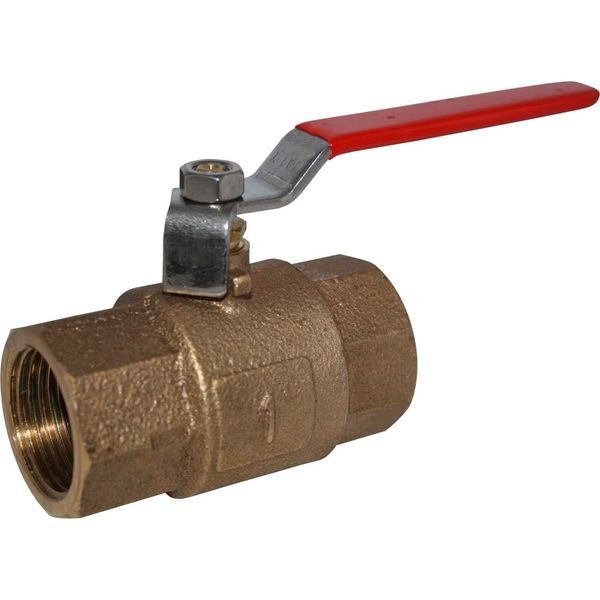

The Maestrini ball valve body is constructed from bronze with a stainless steel handle. This ball valve is suitable for hot water, steam, petrol / gasoline, fuel, oil, gas oil, kerosene and compressed air. The ball valve has a threaded BSP Female port each end as well as a lever handle on top which requires a 1/4 turn. The stainless lever handle comes with a rubber grip cover.

Depending on the application and installation requirements, these bronze body ball valves may not be suitable for below waterline applications.

Important Note: All fittings used for below the waterline applications must be correctly fitted and bonded so as to minimise the risk of electrolytic action.

Features

N/A (Not Applicable)

Specifications

o Material: Bronze Body (CC491K) with Chrome Plated Brass Ball (CW617), Brass Valve Shaft & Packing Body (CW617), Stainless Steel Handle (AST430) with Non-Slip Grip, PTFE Ball Sealing Gaskets
o Primary Construction: Bronze
o Thread Connection: BSP
o Thread Fitting Size: 1"
o Thread Gender: Female
o Valve Design: Ball Valve
o Maximum Pressure: 500 PSI
o Replaces: 406205, 406305
o Thread Size: 1" BSP Female
o Brand: Maestrini
o Height Description: 81mm
o Length: 85mm, Handle: 104mm
o Temperature Range: -10C to +120C
o Country of Origin: Italy
