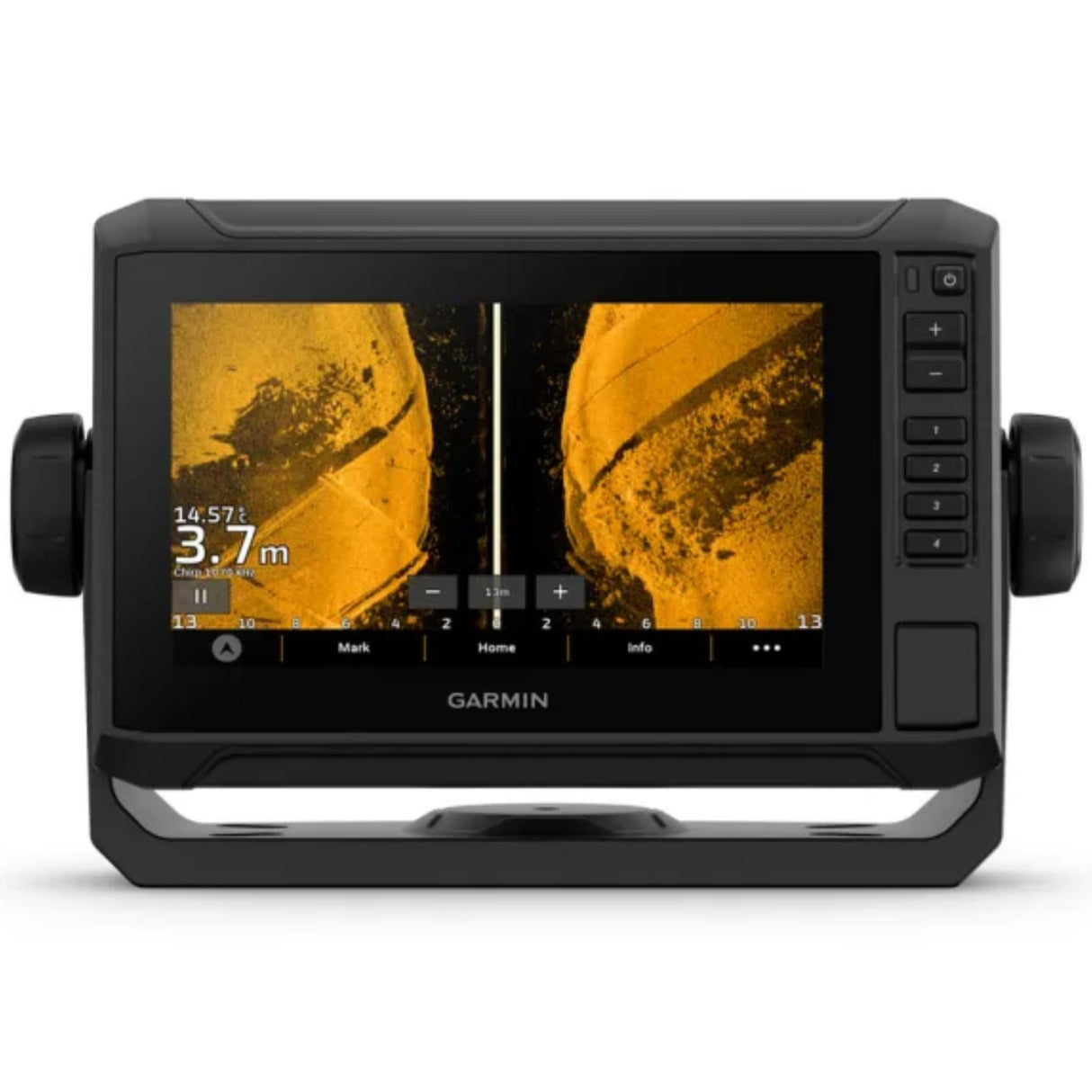

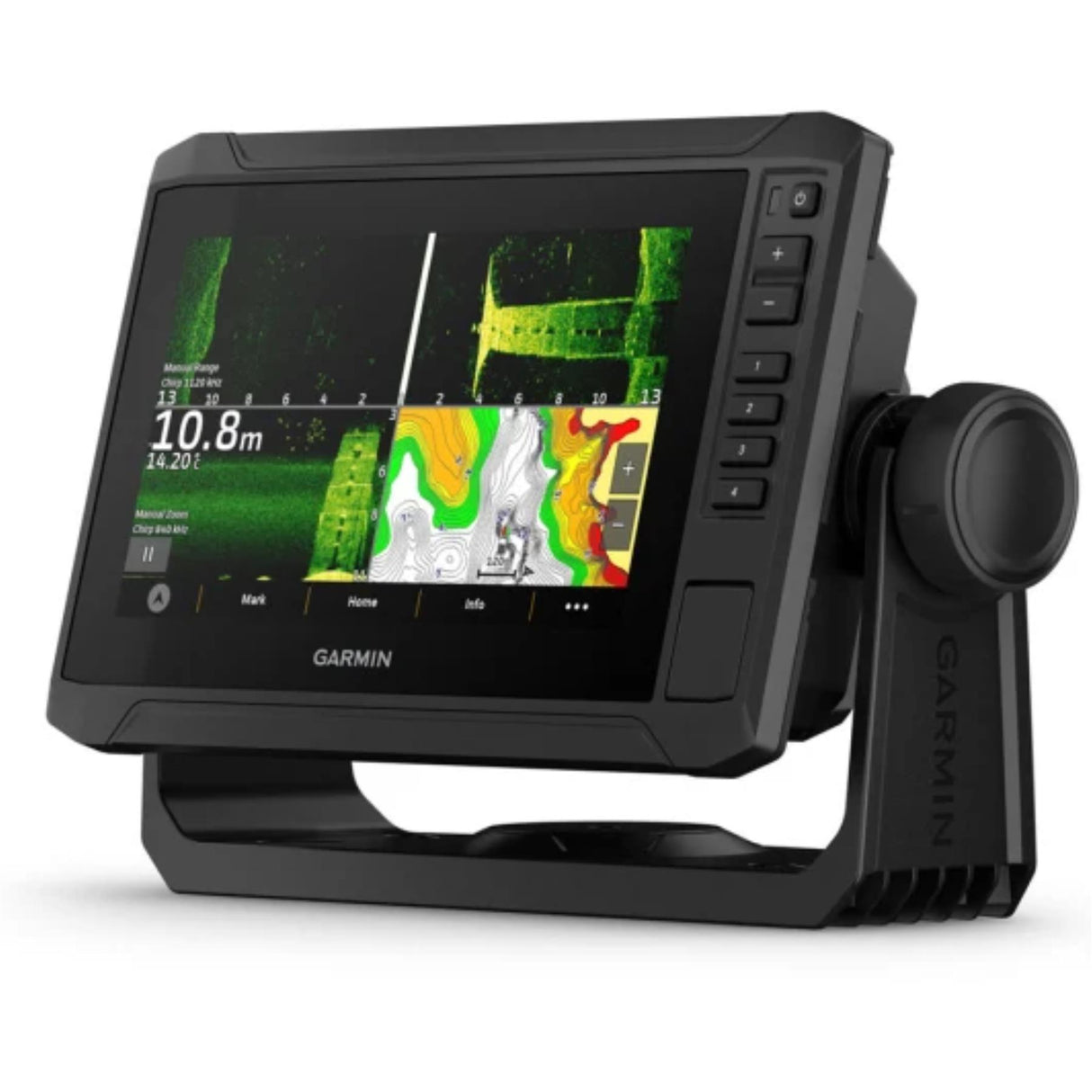

Garmin ECHOMAP UHD2 Touch 75sv Chartplotter, Preloaded Nav+ U.K., Ireland & Netherlands Charts - Without Transducer

Know The Water Better Than A Local

When it comes to catching more fish, they say, "talk to a local." With the ECHOMAP UHD2 chartplotter, which offers support for Garmin's best-in-class sonar, built-in Garmin Navionics+ for U.K and Ireland, and a premium touchscreen display with keyed-assist, know the water even better than they do.

It Doesn't Get Any Better Than This

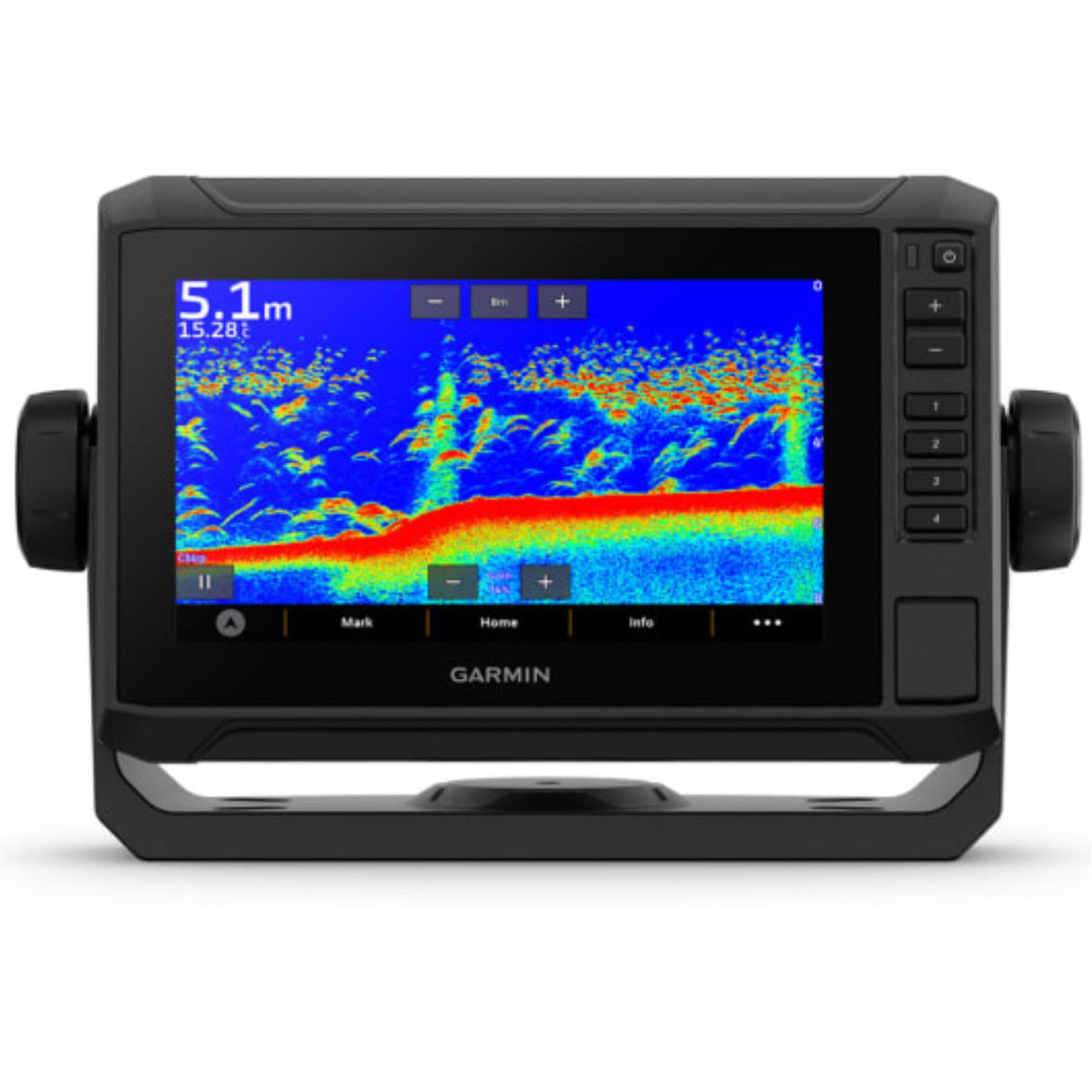

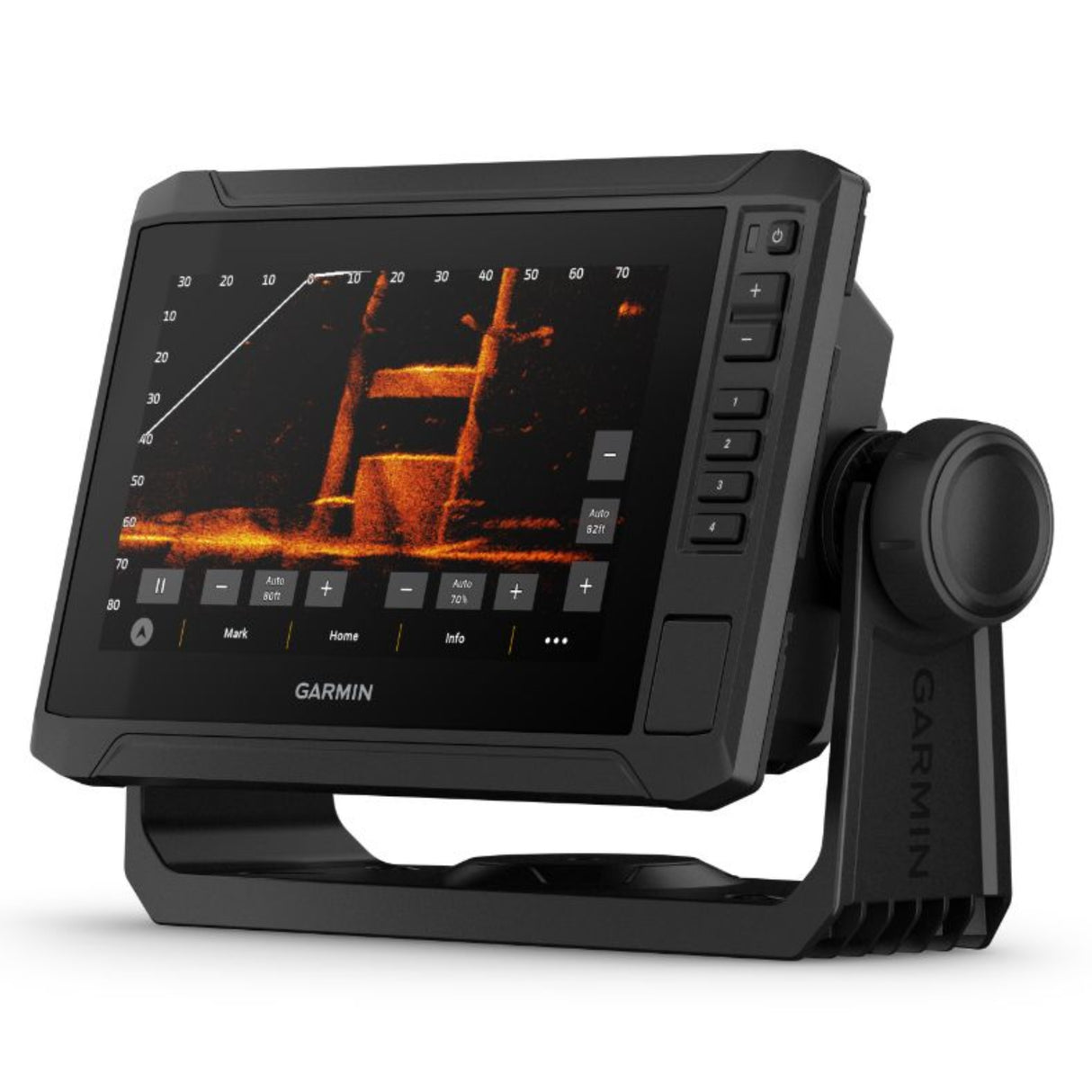

Sonar Support - With support for crisp, clear traditional sonar and brilliant ClearVü and SideVü scanning sonars, the fish will have nowhere to hide. The ECHOMAP UHD2 also supports LiveScope live-scanning sonar.

Vivid Colour Palettes - High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

Preloaded Charts - Chartplotters come with built-in Garmin Navionics+ cartography for U.K., Ireland and the Netherlands which includes a 1-year subscription for daily updates, raster cartography and more.

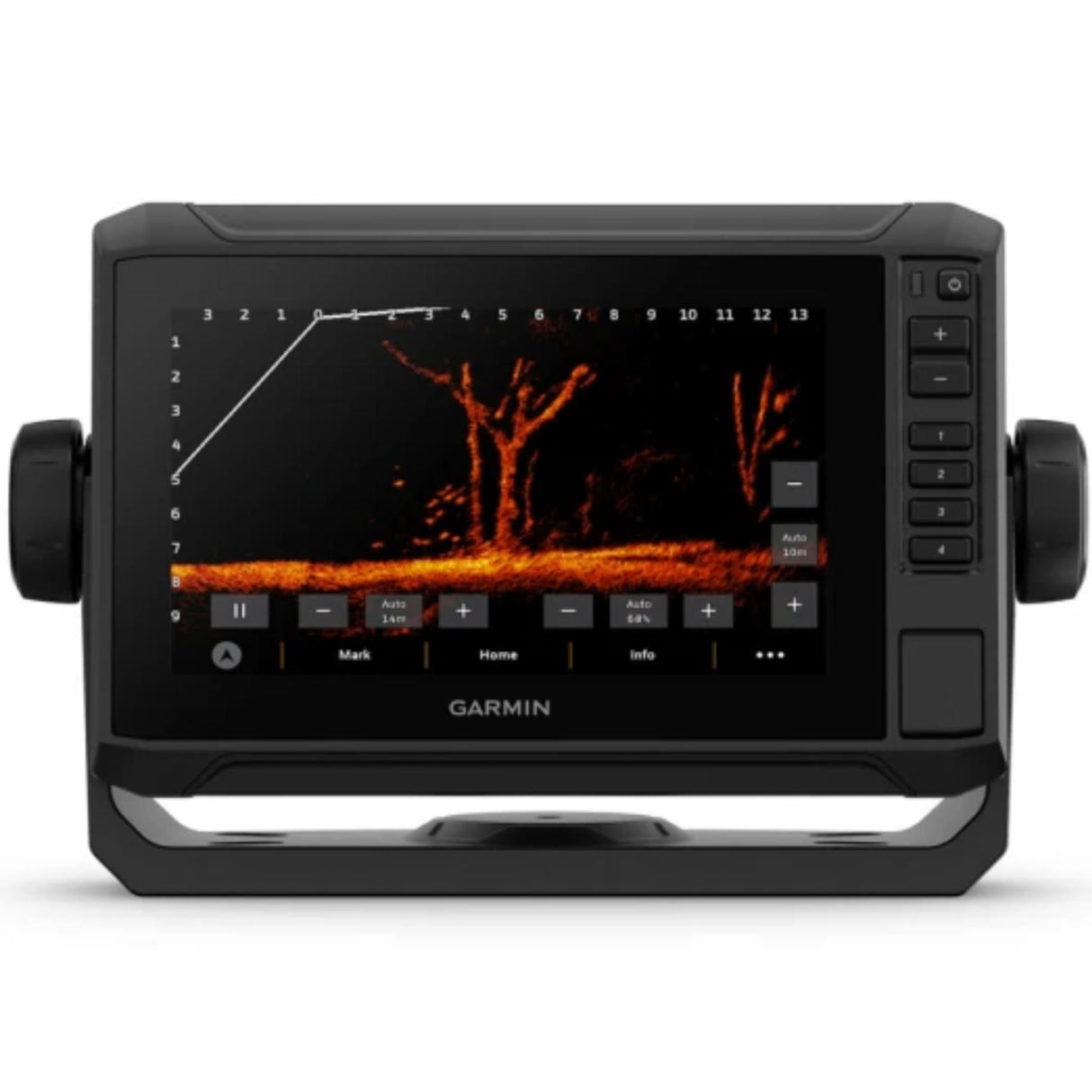

Wireless Networking - Wirelessly share information such as sonar, waypoints and routes  with another compatible ECHOMAP UHD2 chartplotter on the boat.

ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin QuickDraw Community data and more.

Auto Guidance Technology - Built-in Garmin Navionics+ charts for U.K., Ireland and the Netherlands include downloadable Auto Guidance+ technology with the ActiveCaptain app.

Troll With Force - The ECHOMAP UHD2 chartplotter wirelessly connects to Garmin Force Trolling Motors to create and follow routes, navigate to waypoints, control speed, check battery life and more.

Multi-Band GPS - Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS.

In The Box

• ECHOMAP UHD2 75sv
• 12-pin sounder to 8-pin transducer cable
• Power cable
• Tilt/swivel mount with quick release cradle
• Protective cover
• Hardware
• Documentation

Manual
Installation
Template

O The bright 7" touchscreen display with keyed-assist is user-friendly and easy to read

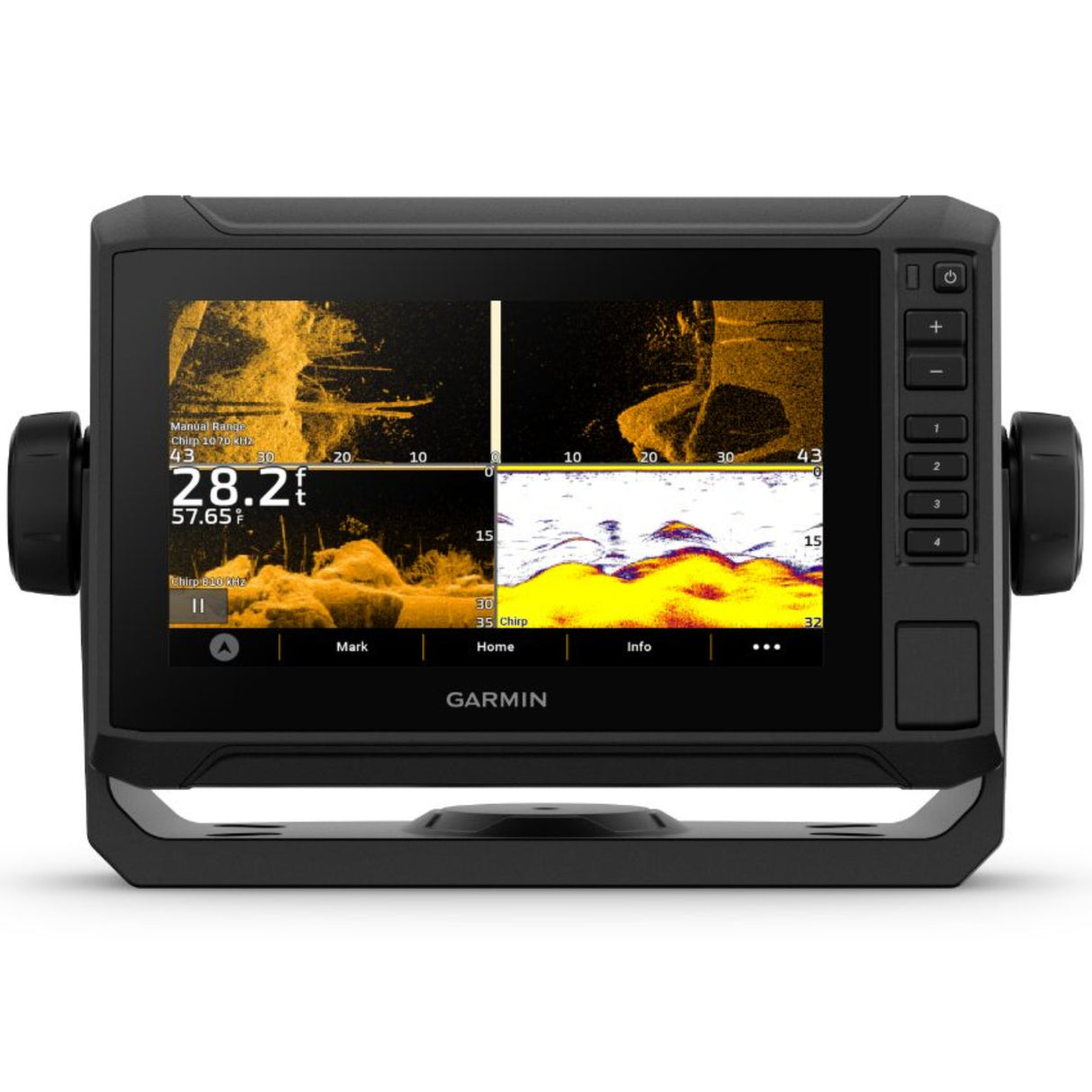

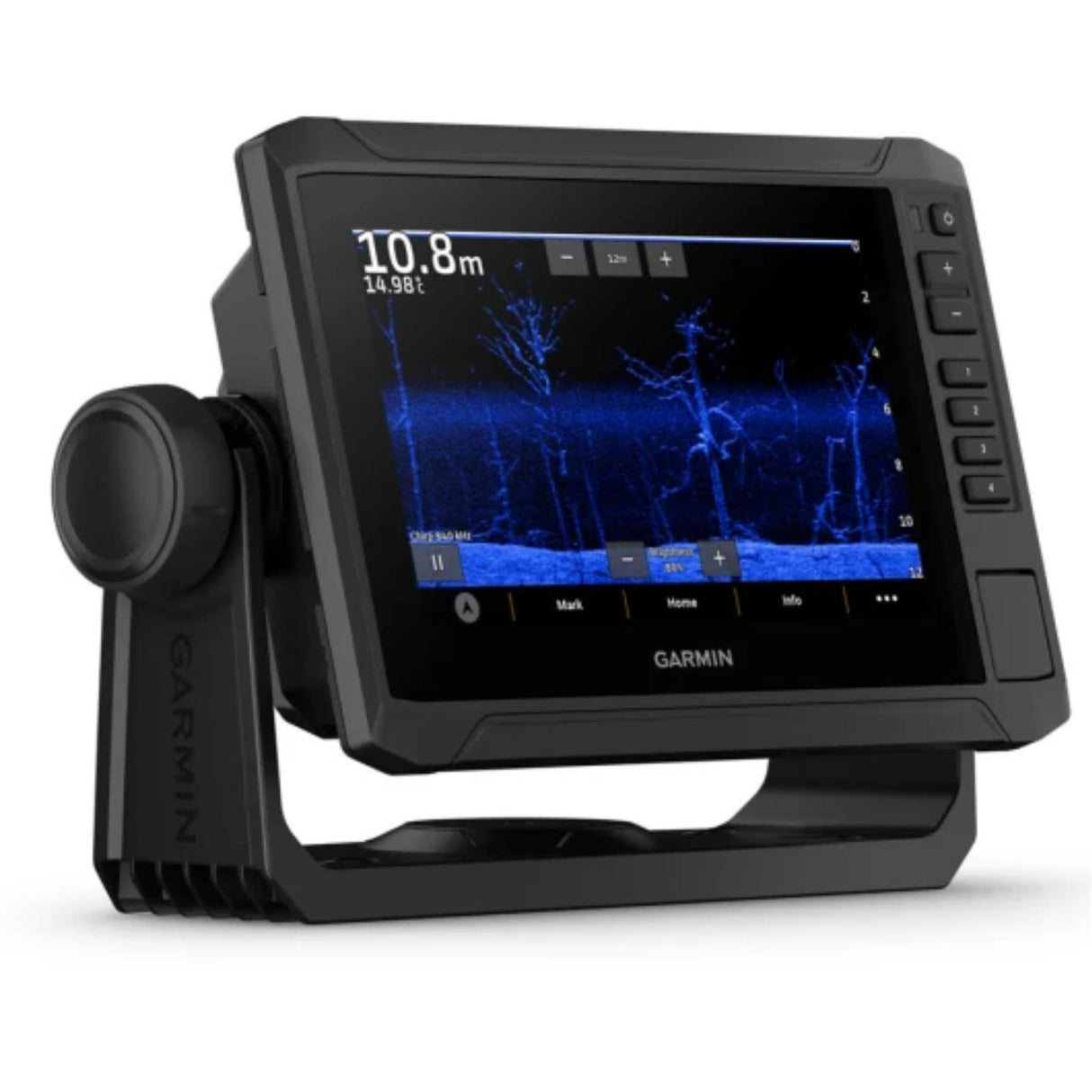

O Good things come in threes. Supports three sonar types: Garmin traditional, ClearVü and SideVü sonars
O Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid colour palettes
O Wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter

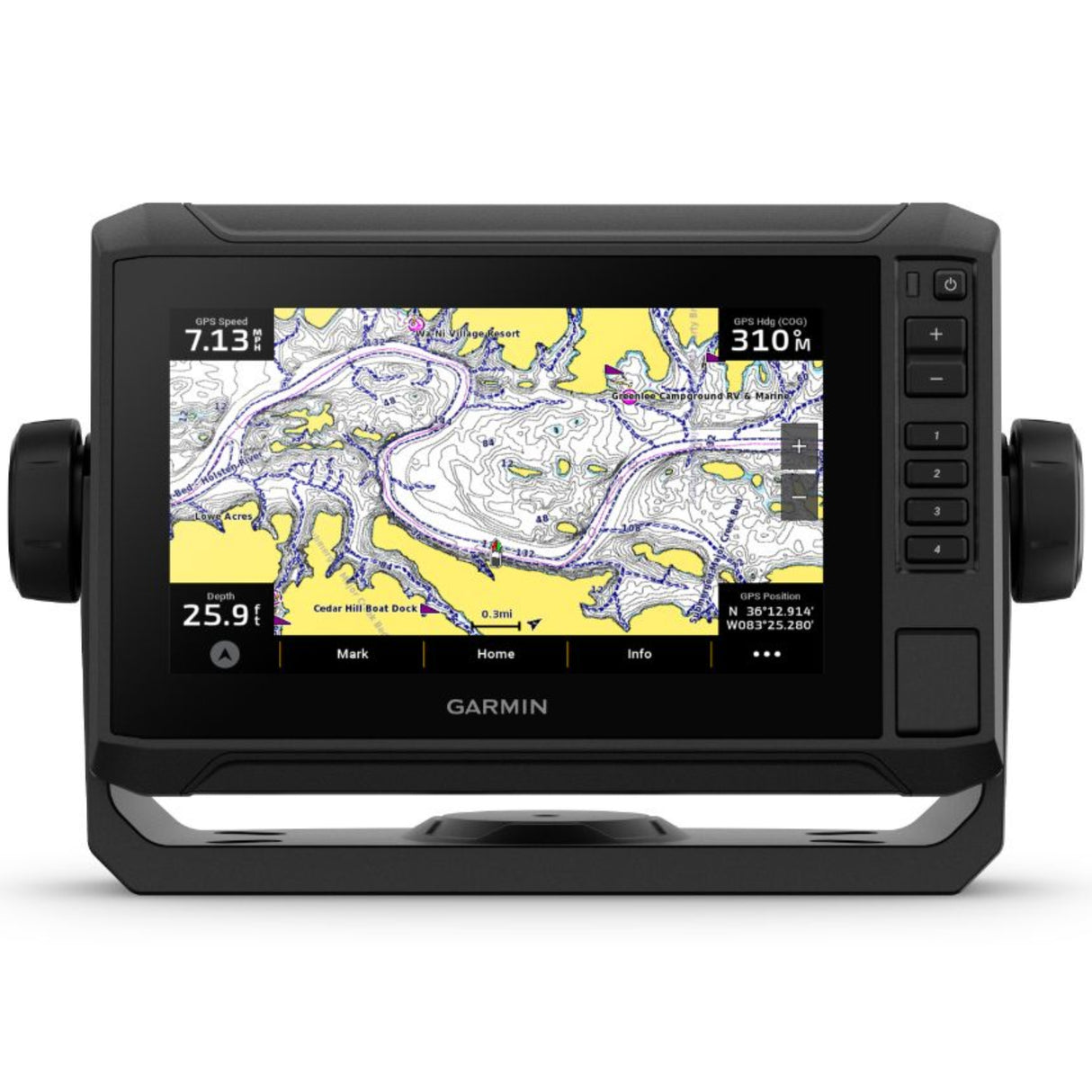

O Comes preloaded with Garmin Navionics+ mapping for U.K., Ireland and the Netherlands.

General
O Dimensions - 21.8 x 14.2 x 8.1 cm (8.6" x 5.6" x 3.2")
O Input - Touchscreen with Keyed Assist
O Display Size - 15.5 x 8.7cm, 17.8 cm Diagonal (6.1" x 3.4", 7" Diagonal)
O Display Resolution - 800 x 480 Pixels
O Display Type - WVGA, TN
O Weight - 1Kg (2.2lbs)
O Water Rating - IPX7
O Mounting Options - Bail or Flush

Maps & Memory
O Accepts Data Cards - 1 MicroSD Card, Max 32GB
O Waypoints - 5000
O Track Points - 50000
O Tracks - 50 Saved Tracks
O Navigation Routes - 100

Sensors
O Has Built-In Receiver - ✓
O Receiver - 10Hz
O NMEA 2000 Compatible - ✓
O GPS - ✓
O GLONASS - ✓
O GALILEO - ✓
O BEIDOU - ✓
O Supports WAAS - ✓
O Supports Multi-Band, Multi Constellation GPS - ✓

Built-in Maps
O Built-in Auto Guidance+ - Yes (Via ActiveCaptain App)
O Garmin Navionics+ Inland & Coastal - Yes
O Garmin Navionics+ (Coastal) - Yes
O Garmin Navionics+ (Inland) - Yes
O Tide Tables - Yes

Optional Map Support
O Garmin Navionics+ - ✓
O Garmin Navionics Vision+ - ✓
O TOPO - ✓
O Standard Mapping - ✓
O Garmin Quickdraw Contours - ✓

Chartplotter Features
O AIS - ✓
O DSC - ✓
O Fusion-Link Compatible - ✓
O ActiveCaptain App Compatible - ✓
O Sailing Features - ✓

Sonar Features & Specifications
O Displays Sonar - ✓
O Power Output - 500W
O Traditional Sonar - Built-in (Single Channel CHIRP, 50/77/83/200 kHz L.M.H CHIRP)
O ClearVu - Built-in (260/455/800/1000/1200 kHz)
O SideVu - Built-in (260/455/800/1000/1200 kHz)
O Panoptix Sonar - ✓
O LiveScope - ✓

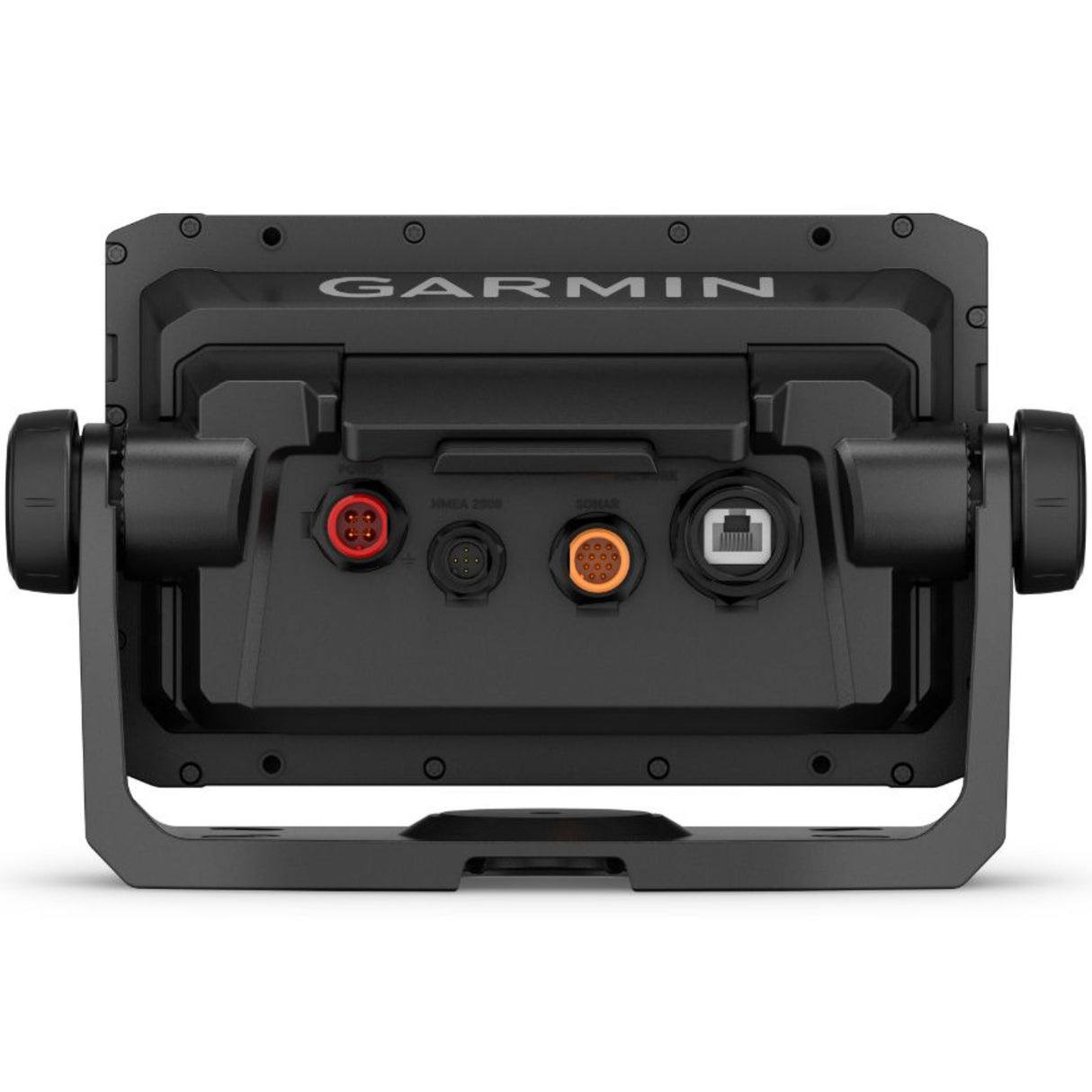

Connections -
O NMEA 2000 Ports - ✓
O Garmin Marine Network Ports - 1
O 12 Pin Transducer Ports - 1
O Bluetooth Calling - ✓
O ANT+ Connectivity - ✓
O Garmin Wi-Fi Network - ✓

Electrical Features
O Power Input - 9 - 18 Vdc
O Typical Current Draw at 12 Vdc - 1.52A
O Max Current Draw at 12Vdc - 3.2A
O Max Power Usage at 10 Vdc - 18.3W
